GeoVision - 84-MNFRP00-0010 - GV-Mini FR Mini Face Recognition Panel
• 3.5" IPS touch screen with 320 x 480 HD display
• Face recognition distance of up to 1 m (3.28 ft)
• Built-in RGB & IR cameras
• 3,000 face image capacity
• 3,000 access card capacity
• 9,000 event log capacity
• Built-in 13.56 MHz, ISO 14443A reader
• Built-in LED light for nighttime and low-light face recognition
• DC 12V / PoE (IEEE 802.af)
• Liveness detection (face spoofing detection)
• Masked face recognition
• Four access modes for local authentication (standalone mode): Face Only, Face and Password, Face and Card, Face or Card
• Intercom support for operator - visitor interaction
• CE, FCC compliant
| Camera | |
|---|---|
| Image Sensor | 1/2.8” CMOS |
| Minimum Illumination | 0 lux |
| White Balance | Auto / Manual |
| Frame Rate | 15 FPS |
| Dynamic Range | 74 dB |
| Touchscreen Panel | |
| Display | 3.5” IPS LCD |
| Resolution | 320 × 480 |
| Capacity | |
| Face Recognition Distance | 1 m (3.28 ft) |
| Recognition Angle | Vertical (FOV): 65° |
| Horizontal (FOV): 50° | |
| Card Supported | 13.56 MHz for ISO 14443A |
| Capacity | Face Image: 3,000 Card: 3,000 Event Log: 9,000 |
| Operation Mode | - Controller Authentication (regulated by GV-ASManager system): Face or Card |
| - Local Authentication (standalone mode): Face Only, Face and Password, Face and Card, Face or Card | |
| Firmware Upgrade | via Web-based configuration or GV-IP Device Utility |
| Installation Management | Web-based configuration |
| Face Recognition | |
| Recognized Face Angle | Tilt (Up / Down): ±10° |
| Swing (Left / Right): ±5° | |
| Operation | |
| Video Compression | H.265, H.265+, H.264, H.264+ |
| Video Streaming | Triple streams from H.265 or H.264 |
| Video Resolution | Main Stream: 1920 x 1080 (default), 1280 x 720 |
| Sub Stream: 1280 x 720, 704 x 480 (default) | |
| Third Stream: 704 x 480 (default) | |
| Frame Rate | 15 fps at 1920 x 1080, 1280 x 720 * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Stream | 3 connections |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, PPPoE, RTSP, SMTP, UDP, UPnP |
| Mechanical | |
| Audio | Built-in speaker and microphone |
| Internal Storage | 4 GB eMMC |
| Connectors | Power: DC Jack |
| Ethernet: RJ-45 Connector | |
| Door Lock Output: 1 output (NC, NO, COM; DC 12V, 1A) | |
| Exit Button: 1 button (Button, GND) | |
| Door Contact Input: 1 input (Sensor, GND) Anti-Tamper Interface: 1 interface Wiegand: Not functional | |
| General | |
| Operating Temperature | -20 ~ 50 °C (-4 ~ 122 °F) |
| Humidity | 0% ~ 95% (non-condensing) |
| Power | DC 12V, 1A / PoE (802.3af) |
| Max. Power Consumption | 12 W |

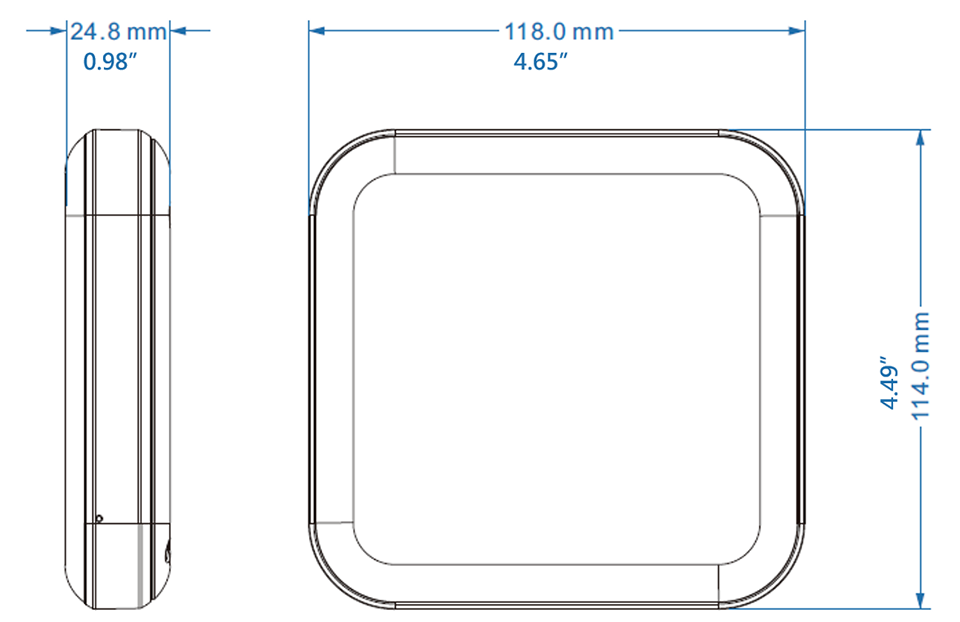

| Dimensions (H x W x D) | 118 x 114 x 25.1 mm (4.65 x 4.49 x 0.99 in) |
| Weight | 300 g (0.66 lb) |
| Certification | CE, FCC |
```

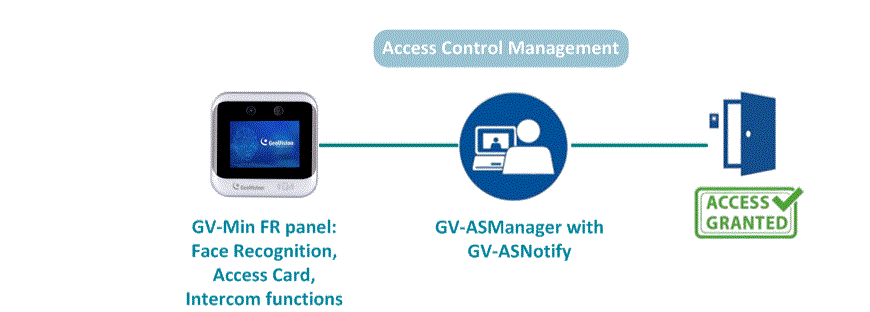

The sleek GV-Mini FR panel is an access reader based on face recognition, featuring a 3.5" LCD touchscreen that displays HD images at 320 × 480 resolution. Designed for seamless integration with the GV-ASManager access control system, the panel supports dual authentication modes for granting or denying access via face recognition or access card verification. The panel's built-in intercom functionality enables real-time communication between visitors and the GV-ASManager operator. Upon receiving a notification, the operator can communicate via two-way audio and unlock the door remotely, enhancing security and convenience.
