GeoVision - 84-PBG1000-0001 - GV-G1 Power Box
Product Overview

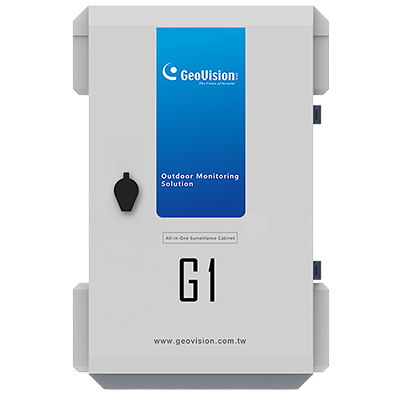

The GeoVision GV-G1 Power Box is a rugged, all‑weather outdoor electrical enclosure engineered for harsh environments, featuring an IP55 rating for rain and dust protection, a pole‑mount design, and reinforced seamless construction for enhanced durability. Its integrated anti‑theft design and weather‑resistant build make it suitable for demanding conditions, including high‑humidity and seaside locations.
Key Configuration
• Dimensions: 400 × 600 × 208.5 mm (15.75 × 23.62 × 8.21 in)
• Weight: 12.3 kg (27.1 lb)
• Thickness: 1.2 mm (0.05 in)
• External pressure resistance: ≥100 kg on any surface
• Ingress protection: IP55
• Color: Light grey (electrostatic spraying)
Key Features
The GV‑G1 Power Box features reinforced seamless construction for strong durability and impact resistance, with an IP55 rating for weather protection against dust and low‑pressure water jets. Its integrated design simplifies installation without manual wiring, and the light grey electrostatic spray finish provides corrosion resistance.
Technical Context

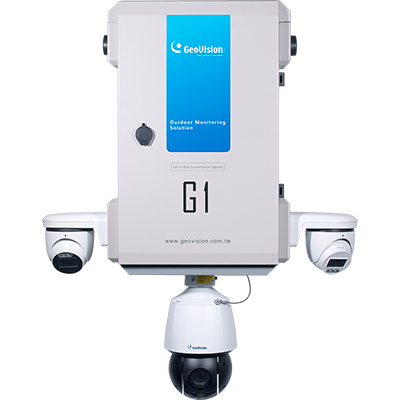

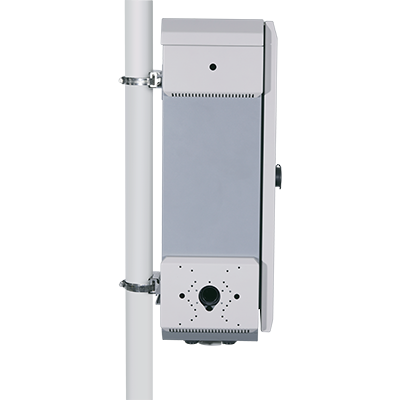

The pole‑mount design ensures secure outdoor installation, with left/right‑side and bottom‑side mounting options to accommodate various pole configurations and support multi‑sensor or speed dome cameras. It is compatible with a wide range of GV‑IP cameras (bullet, dome, vandal‑proof, eyeball, panoramic, multi‑sensor, thermal, PTZ), GV‑IP speakers, and GV‑Mount series adapters.
Installation Notes
Measures 400 × 600 × 208.5 mm and weighs 12.3 kg, with 1.2mm steel thickness and external pressure resistance of ≥100kg to prevent deformation. Its modular internal structure supports vertical or horizontal equipment mounting, providing flexible deployment options for various surveillance components.
| General | |
| Dimensions | 400 x 600 x 208.5 mm (15.75 x 23.62 x 8.21 in) |
| Weight | 12.3 kg (27.1 lb) |
| Thickness | 1.2 mm (0.05 in) |
| External Pressure Resistance | ≥ 100 kg on any surface |
| Color | Light grey |
| Surface Treatment | Electrostatic spraying |
| Ingress Protection | IP55 |
| Application (Left- or Right-Side Installation) | |
| GV IP Camera | |
| Bullet | GV-TBL2705 / TBL2706 / TBL4700 / TBL4705 / TBL4711 / TBL4807 / TBL4810 / TBL8710 / TBL8804 / TBL8810 / GBL4900 / GBL4911 / GBL12811 GV-ABL4712 / BLFC5800 (must be used with GV-Mount503-1) |
| Fixed Dome | GV-TDR2702 / TDR2705 / TDR4700 / TDR4702 / TDR4803 / TDR8805 / TFD4700 / TFD4800 (must be used with GV-Mount211-1) GV-GDR2801 / GDR4900 / GDRF4800 / GDRN4800 (must be used with GV-Mount211-4) |
| Vandal-Proof Dome | GV-TVD2712 / TVD4811 (must be used with GV-Mount211-1) |
| Eyeball Dome | GV-EBD2704 / EBD2705 / EBD4700 / EBD4701 / EBD4704 / EBD4813 / EBD8800 / EBD8813 / EBFC5800 (must be used with GV-Mount211-1) GV-GEB4900 / GEBF2802 / GEBF4802 / GEBF4813 / GEBF4911 / GEBN4800 (must be used with GV-Mount211-4) |
| Panoramic | GV-TBLP5800 / TBLP8800 GV-EBDP5800 / EBDP8800 (must be used with GV-Mount211-1) GV-GEBP8900 (must be used with GV-Mount211-4) |
| Multi-Sensor | GV-TMS8800 (must be used with GV-Mount211-12 or GV-Mount211-16) |
| Thermal | GV-TMEB5800 (must be used with GV-Mount211-4) |
| PTZ | GV-PTZ5810-IR (must be used with GV-Mount211-1) |
| GV IP Speaker | GV-IPSH30 V2.0 |
| GV Mount | GV-Mount211-1 / Mount211-4 / Mount211-12 / Mount211-16 / Mount503-1 |
| Application (Bottom-Side Installation) | |
| GV IP Camera | |
| Multi-Sensor | GV-TMS8800 |
| Speed Dome | GV-SD4825-IR (must be used with GV-Mount706) |
| GV IP Speaker | GV-IPSH30 V2.0 |
| GV Mount | GV-Mount706 |
