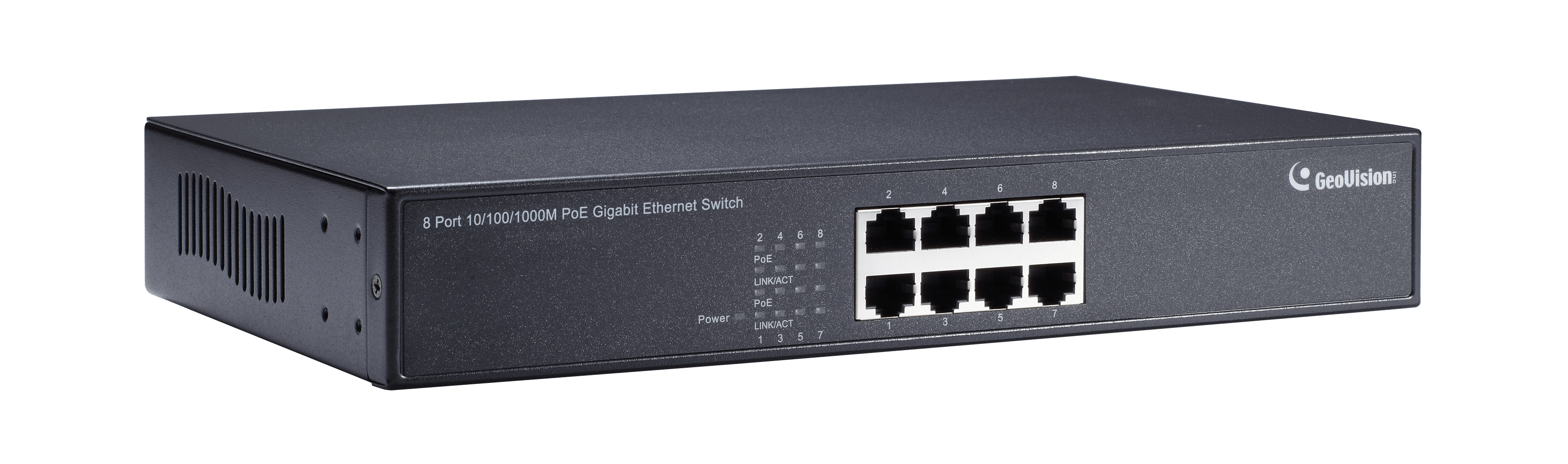

The GV-POE0810 is an 8-port 10/100/1000BaseT(X) , PSE Desktop PoE Gigabit Switch. The switch supports IEEE 802.3at Power over Ethernet standard, up to 30 W per port and maximum 130 W power consumption per system, and no special network cable is required for connecting your powered devices (PD), such as IP cameras. The switch is designed for small or medium network environment to strengthen its network connection and efficiency. It also gives you the option of installing it in an 19" cabinet with a rack-mount kit or underneath a desk.
Features:
- 8-port 10/100/1000BaseT(X), PSE/Power over Ethernet
- IEEE 802.3at Compliant (8 Ports at Full 15.4 W)
- Max. 130 W Power Consumption
- Auto-MDI/MDI-X
- Auto-Negotiation
- Non-Blocking
- 11" Metal Case
- Up to 7 GV-IP Cameras support
Note:
- Specifications are subject to change without notice.
| Ethernet | |
| Layer Supported | L2 |
| Ports | |
| Number of Ports |
|
| Performance | |
| MAC Address | 8 K |
| Buffer Memory | 1.37 M bits |
| Transmission Method | Store and Forward |
| Transmission Media |
|
| Filtering/Forwarding Rates |
|
| Backplane Capacity | 16 Gbps |
| Mechanical Characteristics | |
| LED Indicator |
|
| Electrical Characteristics | |
| PoE Power |
|
| PoE Mode |
|
| Max. Power Consumption | 130 W |
| General | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 1.52 kg (3.35 lb) |
| Dimensions (L x W x H) | 44 x 266 x 161 mm (1.73” x 10.47” x 6.34”) |
| Weight | 135 g (0.3 lb) |
| Standards and Regulatory | |
| Standards |
|
| Regulatory | CE, FCC Class A, RoHS compliant |
