GeoVision - 84-POELC00-0010 - SFP Transceiver 850 Wavelength, MMF Media

Part number:
84-POELC00-0010
Price:

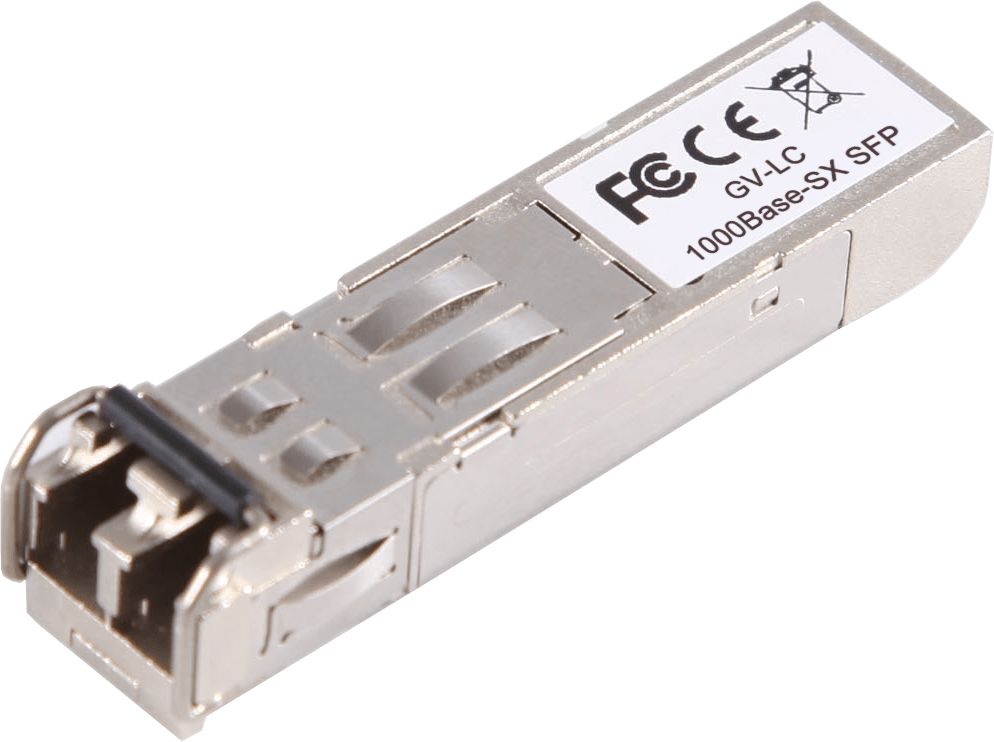

The SFP Transceiver is designed to plug into the SFP port of the GV-POE Switch and is the interface between the switch and optical fiber cables. This product complies with IEEE 802.3z 1000BaseSX/LX standards. The SFP Transceiver is a hot swappable device; you can add or remove the device without powering down.

Model GV-LC
Network StandardIEEE 802.3z 1000BaseSX
Wavelength850
MediaMMF
Distance62.5 um, 220 m (722 ft) / 50 um, 550 m (1804 ft)
TX Power (dBm)-9.5 ~ -4
RX Sensitivity (dBm)Max. -18
Connector Type
Operating Temperature
Regulatory
Name
Description
Size
Downloads
File
Datasheet
0.2mb
