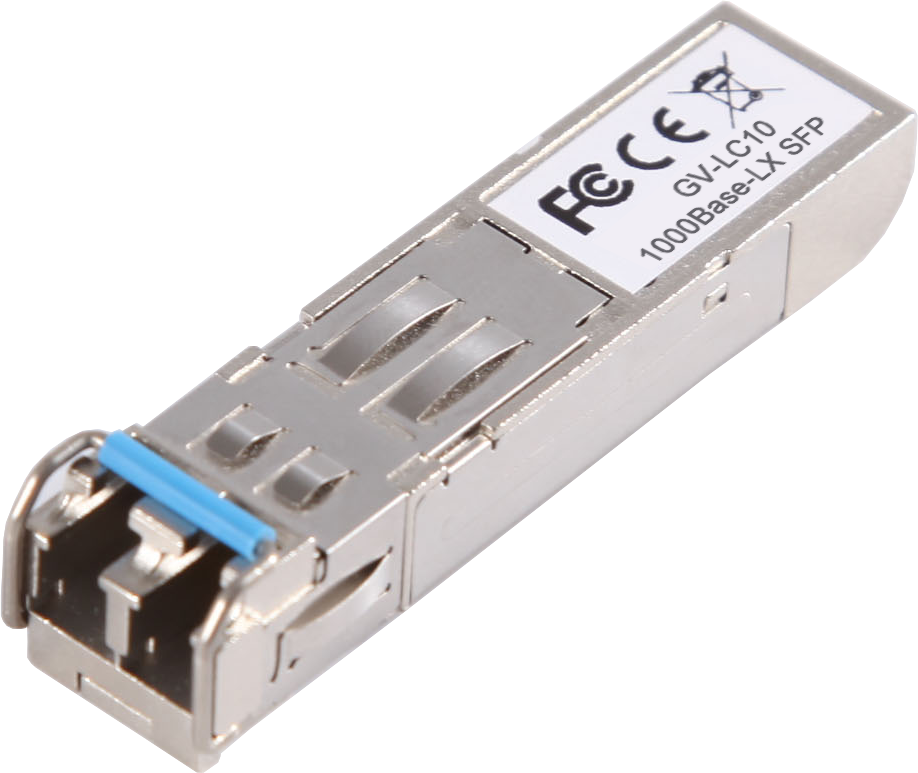

GeoVision - 84-POELC10-0010 - SFP Transceiver 1310 Wavelength, SMF Media

Part number:
84-POELC10-0010
Price:

The SFP Transceiver is designed to plug into the SFP port of the GV-POE Switch and is the interface between the switch and optical fiber cables. This product complies with IEEE 802.3z 1000BaseSX/LX standards. The SFP Transceiver is a hot swappable device; you can add or remove the device without powering down.

Model GV-LC10
Network StandardIEEE 802.3z 1000BaseLX
Wavelength1310
MediaSMF
Distance10 um, 10 km (32808 ft)
TX Power (dBm)-9.5 ~ -3
RX Sensitivity (dBm)Max. -20
Connector TypeLC
Operating Temperature0 °C ~ 70 °C (32 °F ~ 158 °F)
RegulatoryRoHS compliant
Name
Description
Size
Downloads
File
Datasheet
0.2mb
