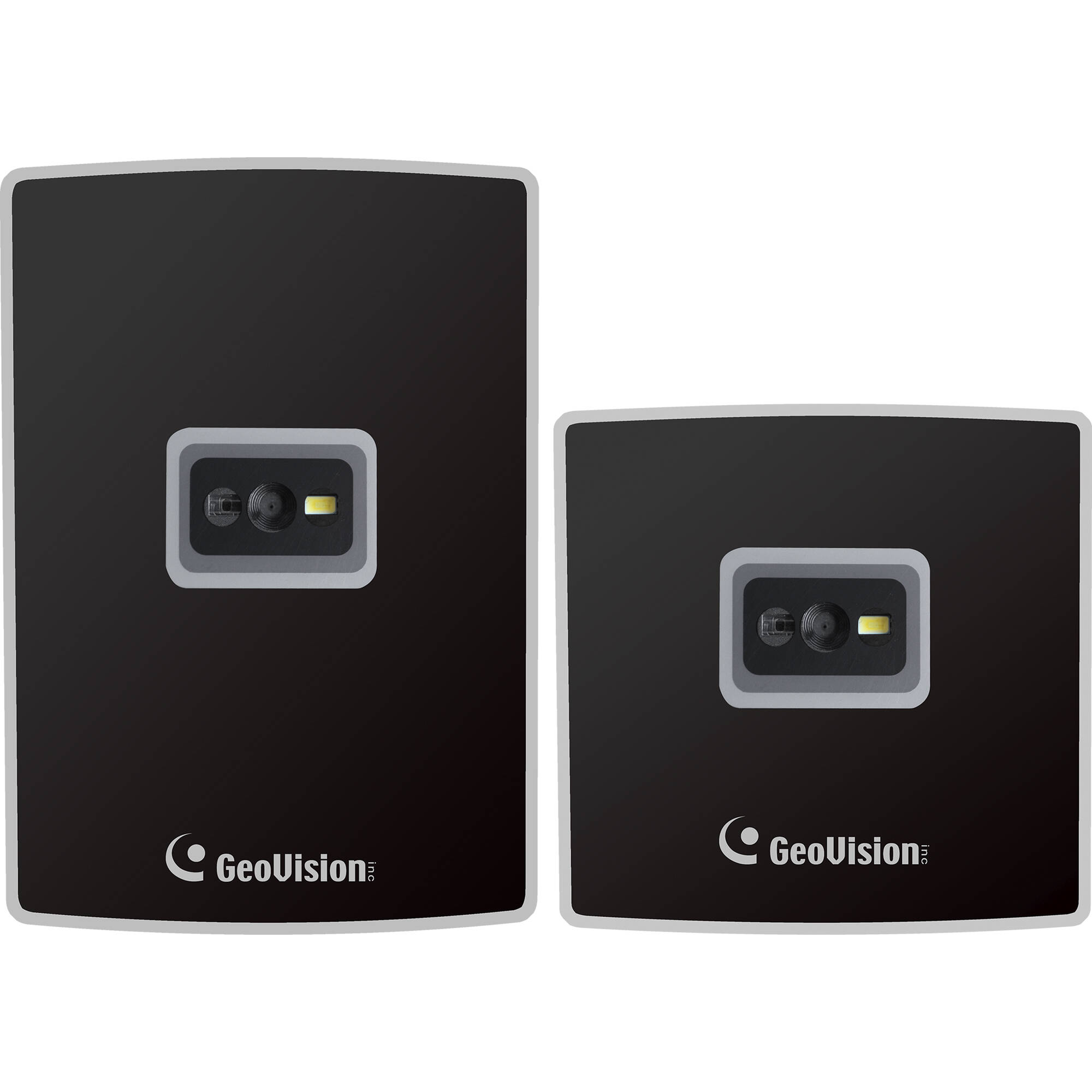

GV-QR1352 is a QR code reader with RFID reading capability. GV-QR1352, as part of the GeoVision mobile access solution, can unlock doors by scanning QR codes displayed on smartphones. Furthermore, its RFID capability supports dual-band frequency (125 kHZ EM and 13.56 MHz Mirfare), and its Weigand interface enables integration with any standard access control systems.
GV-QR1352 is an ideal reader for integrators to adopt when incorporating mobile access control into existing access control systems.
Features:
- Dual band frequency: 125 kHz EM / 13.56 MHz Mifare
- Two communication interfaces: Wiegand, RS-485
- Flush-mounted design for US and EU compatible
- QR code support for contactless access
- DESFire EV2 card support
- GeoVision access cards with GID (GeoVision Identifier) to enhance security
Note:
- RS485 interface only supports GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26 Bits).
- The unit of measurement for Overview figures is millimeter (mm).
- Specifications are subject to change without notice.
|
Communication Interface |
Wiegand, RS‐485 |
|
|
RFID Frequency |
l Dual Band (13.56 MHz & 125 kHz) l 125 kHz EM l 13.56 MHz for ISO14443A Mifare |
|
|
Reading Range |
RFID |
l 13.56 MHz: 2‐5 cm (0.79‐1.97 in) l 125 kHz: 5‐10 cm (1.97‐3.94 in) |
|
QR Code |
10‐15 cm (4‐6 in) * min illumination: 250 lux |
|
|
Wiegand Interface |
Wiegand x 1, 26 / 34 bits, distance 30 m (98.43 ft) |
|
RS‐485 Interface |
RS‐485 x 1, 9,600 bps, distance 600 m (1968.50 ft)*For supporting dynamic QR codes and smartphone access, RS‐485 connection is required. |
|
Power Source |
DC 9‐24V |
|
Power Consumption |
85 mA |
|
LED |
Bi‐color LED (Red / Green) |
|
Beeper |
Buzzer |
|
Color |
Black |
|
Supported ID Formats |
UID, GID, DESFire ID |
|
Temperature |
Operating |
‐20 °C ~ 65°C (‐20 °C ~ 65°C) |
Storage |
‐25 °C ~ 70°C (‐13 °F ~ 158 °F) |
|
Humidity |
Operating |
20 ~ 90% RH (non‐condensing) |
Storage |
5 ~ 95% RH (non‐condensing) |
|
Dimensions |
US |
118 (L) x 81 (W) x 9 (H) / 34 (H) mm; 4.65 (L) x 3.19 (W) x 0.35 (H) / 1.34 (H) in |
EU |
88 (L) x 86 (W) x 9 (H) / 34 (H) mm; 3.46 (L) x 3.39 (W) x 0.35 (H) / 1.34 (H)in |
|
Weight |
120 g (US), 110 g (EU) |
|
Ingress Protection |
IP55 |
|
Certification |
CE, FCC |
|
