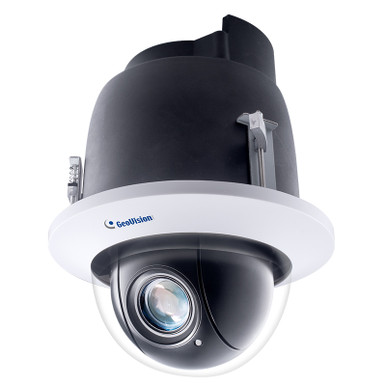

GeoVision - 84-QSD5730-0010 - 33x 5MP H.265 Low Lux WDR Pro IP Speed Dome
• 1/2.8" progressive scan low lux CMOS sensor
• Quad streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2592 x 1944
• Min. illumination at 0.002 lux
• 33x optical zoom and 10x digital zoom
• Day and night function (with removable IR-cut filter)
• Four sensor inputs and two alarm outputs
• Wide Dynamic Range Pro (WDR Pro)
• Temperature tolerance (-25°C ~ 50°C / -13°F ~ 122°F)
• Support for TV-out
• Two-way audio capable
• Built-in SD card slot (SDHC/SDXC, Class 10) for local storage
• PoE+ (802.3at) / AC 24V / DC 30V
| Camera | |
|---|---|
| Image Sensor | 1/2.8" progressive scan low lux CMOS |
| Optical Zoom | 33x |
| Digital Zoom | 10x |
| Picture Elements | 2592 (H) x 1944 (V) | 5 Megapixels |
| Minimum Illumination | Color: 0.02 Lux |
| B/W: 0.002 Lux | |
| Shutter Speed | Auto / Manual (1 ~ 1/10000 sec) |
| White Balance | Auto / Manual |
| Iris Control | Auto / Manual |
| WDR Pro | Yes |
| Optical Lens | |
| Megapixel | Yes |
| Day / Night | Yes (with removable IR-cut filter) |
| Focal Length | 4.6 ~ 152 mm |
| Maximum Aperture | F/1.6 |
| Horizontal FOV | 55.4° ~ 1.9° |
| Focus | Auto / Manual |
| Zoom | 33x |
| Iris | Auto / Manual |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Quad streams from H.265, H.264 or MJPEG |
| Video Resolution | Main Stream: 2592 x 1944 (Default), 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 800 x 600 |
| Sub Stream: 1280 x 720, 1024 x 768, 800 x 600, 720 x 480, 640 x 480 (Default), 352 x 240, 320 x 240 | |
| Third Stream (Closed by Default): 1280 x 720, 1024 x 768, 800 x 600, 720 x 480, 640 x 480, 352 x 240, 320 x 240 | |
| Quad Stream (Closed by Default): 1280 x 720, 1024 x 768, 800 x 600, 720 x 480, 640 x 480, 352 x 240, 320 x 240 | |
| Frame Rate | 30 fps at 2592 x 1944 (60/50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format) |
| Audio | |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio (external microphone and speaker required) |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, ONVIF (Profile G, S, T) |
| Mechanical | |
| Connectors | Power: Terminal Block (AC 24V), PoE+ (802.3at) |
| Ethernet: 10/100 Base-T, RJ-45 connector | |
| Audio: 1 in (Audio In Terminal Block); 1 out (Audio Out Terminal Block) *The Audio In port only supports microphones with power supply. | |
| Local Storage: SD card slot (SDHC / SDXC, Class 10) | |
| TV-Out: BNC connector: PAL (720 x 576 at 30 fps), NTSC (720 x 480 at 25 fps) Digital I/O: I/O Terminal Block RS-485: Terminal block (DSCP, Pelco D, Pelco P) | |
| PTZ Operation | |
| Pan Travel | 360° endless |
| Tilt Travel | -10° ~ 100° |
| Manual Speed | Pan: 0.1° ~ 90°/s Tilt: 0.1° ~ 55°/s |
| Preset Speed | Pan: 400°/s Tilt: 300°/s |
| Presets Max. Number | 256 |
| Accuracy | 0.1° |
| Sequence Max. Number | 8 |
| Max. Presets Allowed | 64 |
| Auto Pan | 4 |
| Automatic Function | Preset, Sequence, Auto Pan, Cruise |
| Mechanical Flip | Yes |
| Digital Slow Shutter | On / Off |
| Motion Detection | On / Off |
| Wide Dynamic Range | On / Off |
| Day/Night: Mechanical IR Cut Filter | On / Off |
| Alarm | Digital I/O: 4 Inputs, dry contact, NO / NC |
| 2 Relay Outputs (120mA 400V DC / 120mA 250V AC) | |
| General | |
| Operating Temperature | -25°C ~ 50°C (-13°F ~ 122°F) |
| Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | Ø 212 x 263.6 mm (8.3” x 10.4”) |
| Weight | 2.6 kg (5.73 lb) |
| Power Source | 30V DC / 24V AC / PoE+ (802.3at) |
| Power Consumption | DC30V, 11.37W Max. |
| AC24V, 13.55W Max. | |
| Regulatory | CE, FCC, RoHS, TAICS (IoT Cyber Security) compliant |
| Power over Ethernet | |
| PoE Standard | PoE+ IEEE802.3at (30W) / PD |
| PoE Power Supply Type | Mode A / Mode B |
| PoE Power Output | 55V DC, 1.1A (60W Max.) |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese, Simplified Chinese |
| Applications | |
| Software Supported | GV-VMS (V17.3.0 / V18.1.1), GV-DVR / NVR (V8.8), GV-Control Center (V3.7.0), GV-Recording Server / Video Gateway (V1.4.2), GV-Edge Recording Manager Win version (V1.4.0), GV-Redundant / Failover Server (V1.1.0.0) *It is required to apply patch files to all the supported software. |
| Smart Device Access | GV‐Eye for iOS and Android (V2.7.4 or later) |
| Live Viewing | Internet Explorer, Non-IE browser (Edge, Chrome, Firefox, Safari), Mobile App *Edge, Chrome, and Firefox only support displaying live view with MJPEG and H.264. *Safari only supports displaying live view with MJPEG. |
The GeoVision 84-QSD5730-0010 is a professional 5MP speed dome camera featuring a motorized 4.6-152mm varifocal lens with 33x optical zoom and F1.6 aperture, delivering 2592x1944 resolution at 30fps. With a 55.4° to 1.9° horizontal FOV, it offers exceptional long-range surveillance capabilities. Super Low Lux technology achieves 0.02 lux color and 0.002 lux B/W minimum illumination, while WDR Pro ensures clear imaging in challenging lighting conditions. It features 360° endless pan (400°/s), -10°~100° tilt, 256 presets, 8 sequences, and 4 auto pan functions with 0.1° accuracy. Housed in a rugged metal casing, it operates reliably from -25°C to 50°C. The camera supports quad-stream H.265/H.264/MJPEG encoding, two-way audio, 4 input/2 output digital I/O, RS-485 control, and edge storage via SD card. It includes comprehensive security features with no default password, 802.1x authentication, and HTTPS encryption. Fully ONVIF Profile G/S/T compliant, it integrates seamlessly with GV-VMS and GV-Eye for professional long-range surveillance requiring high-speed precision PTZ control.
