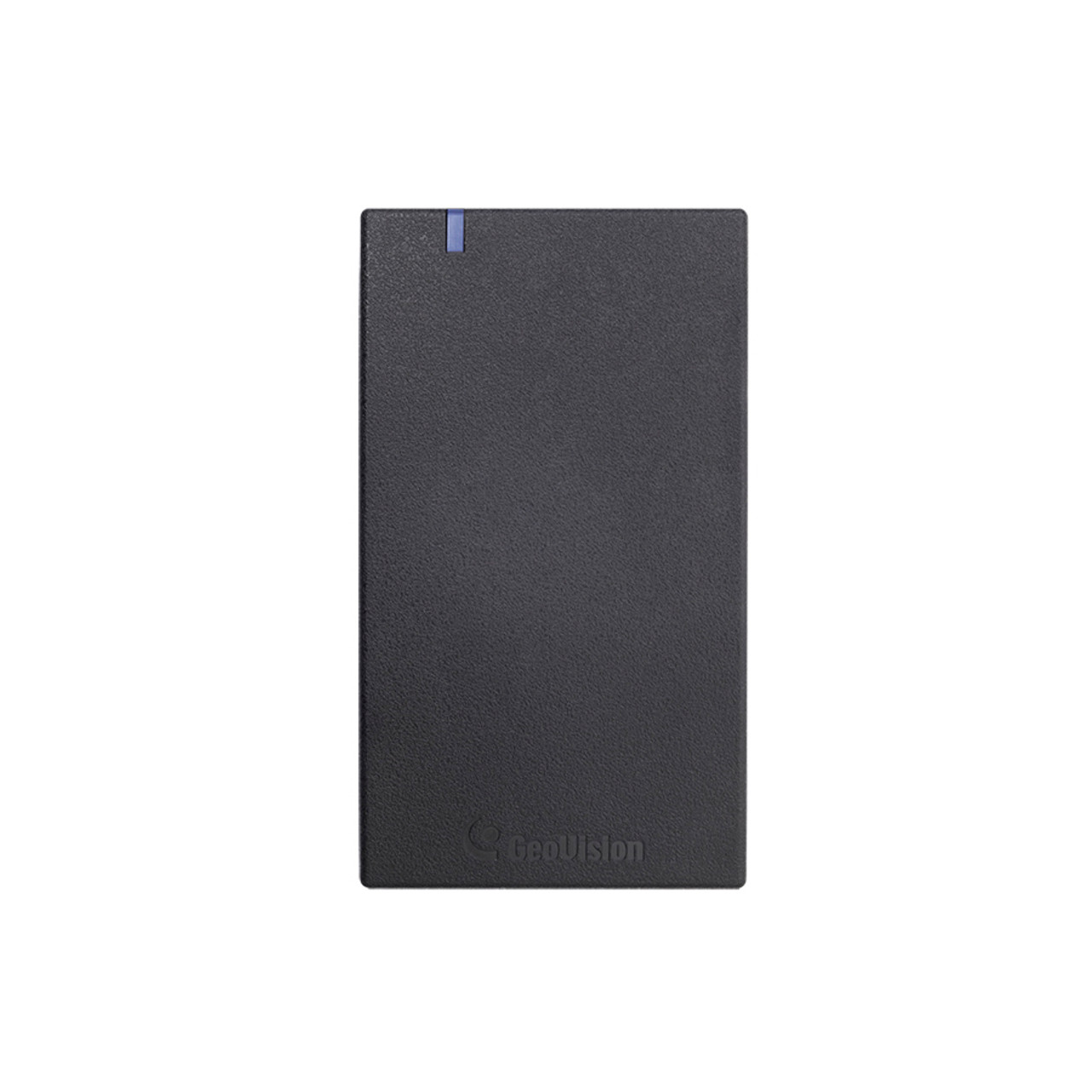

GeoVision - 84-R135200-0200 - GV-R1352 13.56MHZ CARD READER V2, IP66, UL CERTIFICATION
Part number:
520-R1352-IP66
Price:
The GV-R1352 is a card reader designed to recognize access control cards. Featured with the Wiegand and RS-485 outputs, the unit can be connected to any standard access control panel. GV-R1352 comes with a weather sealed and IP66 compliant housing for outdoor use.
Features:
- Weather-proof and IP66-compliant housing (for outdoor use)
- Wiegand interface for third-party integration
- RS-485 interface for longer distance installation
- 13.56 MHz for ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic)
- GeoVision access cards with GID (GeoVision Identifier) to enhance security
- UL 294 compliance
Note:
- RS485 interface only supports GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26/34 Bits).
- UL 294 Attack Class Level 1 depends on other connected equipment.
- If you are using third-party cards or key fobs, the reader must be under UID mode.
- Specifications are subject to change without notice.
| CPU | 8‐bit microprocessor |
| Frequency | 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic) |
| Input Rating | 7.5V DC~12V DC, 200mA |
| Wiegand Interface | Wiegand 26 / 34 bits, distance 100 m (328.1ft), 24 AWG, 13V DC min, 85 °C min |
| RS‐485 | 9,600 bps, distance 600 m (1968.50 ft), 24 AWG, 13V DC min, 85 °C min |
| LED | Red, Green and Blue LED |
| Beeper | Buzzer |
| Color | Black |
| Supported ID Formats | GID and UID |
| Operating Temperature | ‐35 °C ~ 66°C / ‐31 °F ~ 150.8 °F |
| Operating Humidity | 10 ~ 90% RH (non‐condensing) |
| Dimensions (W x H x D) | 65.8 x 115.6 x 20.5 mm (4.6 x 2.6 x 0.8 in) |
| Weight | 120 g / (0.26 lb) |
| Ingress Protection | IP66 |
| Certification | CE, FCC, RoHS, UL 294, CUL |
