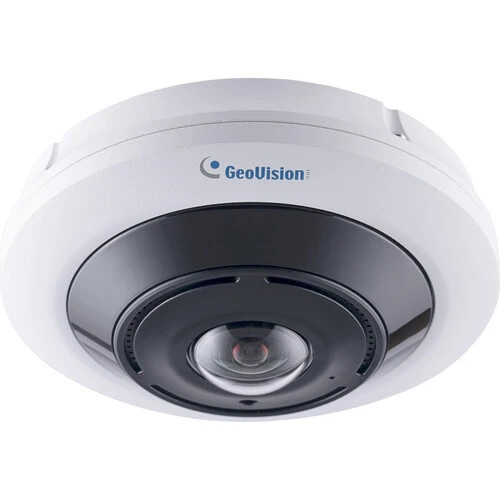

GeoVision - 84-RFER127-0010 - 12MP H.265 Super Low Lux WDR IR Fisheye IP Camera
• 1/2.3" progressive scan super low lux CMOS sensor
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264
• Up to 15 fps at 3840 x 3000
• Day/Night functionality (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 10 m (35 ft)
• Ingress protection (IP66)
• Built-in microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
• Two-way audio
• Built-in microphone and speaker
| Camera | |
|---|---|
| Image Sensor | 1/2.3" progressive scan CMOS |
| Picture Elements | 3840 (H) x 3000 (V) |
| Minimum Illumination | Color: 0.01 Lux (F1.6, AGC ON) IR On: 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/30000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 39.5 dB |
| WDR | WDR Pro |
| Day/Night | Yes (with removable IR‐cut filter) |
| Lens | |
| Megapixel | 12 MP |
| Lens Type | Fixed |
| Focal Length | 1.6 mm |
| Maximum Aperture | F/2 |
| Mount | M12 |
| Image Format | 1/2.3" |
| Horizontal FOV | 180° |
| Operation | |
| Focus | Fixed |
| Zoom | Fixed |
| Iris | Fixed |
| Smart Illumination LED Quantity | 3 IR LEDs |
| Max. IR Distance | 10 m (35 ft) |
| DORI | |
| Detect | 41.3 m (135.4 ft) |
| Observe | 16.5 m (54.1 ft) |
| Recognize | 8.3 m (27.2 ft) |
| Identify | 4.1 m (13.4 ft) |
| Operation | |
| Video Compression | H.265, H.264 |
| Video Streaming | Triple streams from H.265 & H.264 |
| Frame Rate | 25 fps at 3000 x 3000, 2560 x 2560, 2160 x 2160, 1520 x 1520, 1088 x 1088, 720 x 720, 480 x 480 (50 & 60 Hz) 15 fps at 3840 x 3000, 1280 x 960, 640 x 480 (50 & 60 Hz) * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). |
| Maximum Throughput | 36 Mbps |
| Maximum Streams | 14 * When the total bitrate is within the maximum throughput |
| Video Analytics | Motion Detection, Audio Alarm * Tamper detection and audio alarm are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP. |
| Image Settings | Brightness, Contrast, Saturation, Sharpness, IR-CUT Mode, IR CUT Delay, IR-LED Low Beam Light, Angle Trad, White Balance, Shutter, Time Exposure, 3D Noise Reduction, WDR, White Balance, Display Mode, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270° – including Corridor format). |
| Software Dewarping | Ceiling Mount: Fisheye View, Cylinder, 2 PTZ, 4 PTZ, 180°Panorama Image, 360°Panorama Image, 360° Panorama Image and PTZ, 360°Panorama Image and 3 PTZ, 360°Panorama Image and 6 PTZ, 360°Panorama Image and 8PTZ, Fisheye and 3 PTZ, Fisheye and 8 PTZ Wall: Fisheye View, Panorama, 4 PTZ, 360°Panorama Image and 3 PTZ, 360°Panorama Image and 8 PTZ, Fisheye and 3 PTZ, Fisheye and 8 PTZ Desktop: Fisheye View, Cylinder, 4 PTZ, 180°Panorama Image, 360°Panorama Image, 360° Panorama Image and PTZ, 360°Panorama Image and 3 PTZ, 360°Panorama Image and 6 PTZ, 360°Panorama Image and 8 PTZ Tilt: Fisheye View, Panorama, 4 PTZ, 360°Panorama Image and 3 PTZ, 360°Panorama Image and 8 PTZ, Fisheye and 3 PTZ, Fisheye and 8 PTZ |
| Audio Compression | G.711 |
| Audio Support | Two‐way audio |
| Digital I/O | Input: 1 input, dry contact, NO / NC Output: 1 relay output (2A 30V DC / 0.5A 125V AC) |
| Video Resolution | |
| Main Stream | 3840 x 3000, 3000 x 3000 (Default), 2560 x 2560, 2160 x 2160, 1520 x 1520 |
| Sub Stream | 1280 x 960, 1088 x 1088 (Default), 720 x 720, 640 x 480, 480 x 480 |
| Third Stream (Closed by Default) | 640 x 480, 480 x 480 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T), RTMP, RTP, RTSP, SMTP, SNMP, TCP, UPnP |
| Mechanical | |
| Connectors | Power: DC jack, PoE Ethernet: RJ-45 Audio: 1 in (built-in microphone), 1 out (built-in speaker) Digital I/O: 4-pin terminal block pitch 3.5 mm (0.14 in) Local Storage: microSD card slot (SD / SDHC / SDXC / UHS-I, Class 10), up to 256 GB * UHS-II card type is not supported. |
| General | |
| Operating Temperature | -35°C ~ 60°C (-31°F ~ 140°F) |
| Humidity | 0% ~ 90% (no condensation) |
| Power Source | DC 12V / PoE (IEEE 802.3af) |
| Max. Power Consumption | 9.6 W |
| Dimensions | Ø 120 x 55 mm (Ø 4.7 x 2.1 in) |
| Weight | 0.4 kg (0.88 lb) |
| Ingress Protection | IP66 |
| Certification | CE, FCC, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Image Snapshot, Text Overlay, Image Masking |
| Language | Chinese Traditional, Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Turkish, Ukrainian |
| Applications | |
| Software Supported | GV‐VMS (V17.4.8 / V18.3.3 / V20.0.0 or later), GV‐Control Center (V4.2.1 or later), GV‐Recording Server / Video Gateway (V2.1.1 or later, patch files required), GV‐Edge Recording Manager Win version (V2.2.8 or later), GV-IP Device Utility (V9.0.1 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
The GeoVision 84-RFER127-0010 is a high-resolution 12MP fisheye IP camera featuring a 1/2.3" progressive CMOS sensor delivering 3840x3000 resolution at 15fps (3000x3000 at 25fps) with a 180° panoramic field of view via its 1.6mm fixed lens (F2.0). With Super Low Lux technology achieving 0.01 lux minimum illumination in color and three Smart IR LEDs providing 10m night vision, it captures comprehensive 360° coverage in extreme low-light conditions. WDR, 3DNR, and multiple IR-CUT modes ensure clear imaging across the entire scene. Housed in an IP66-rated weatherproof casing with a compact Ø120 x 55mm form factor, it operates reliably from -35°C to 60°C. The camera features advanced software dewarping with multiple viewing modes for ceiling, wall, desktop, and tilt installations, including Fisheye View, Cylinder, Panorama (180°/360°), and flexible PTZ configurations (up to 8 PTZ windows). H.265/H.264 triple streaming optimizes bandwidth efficiency, while two-way audio with built-in microphone and speaker, digital I/O, and edge storage up to 256GB provide robust functionality. Fully ONVIF Profile G/S/T compliant, it integrates seamlessly with GV-VMS, GV-Control Center, and GV-Eye mobile app for comprehensive 360° surveillance coverage.
