GeoVision - 84-RKR1355-0010 - Scramble Keypad Reader
• Scramble keypad for PIN privacy protection
• Access control card and PIN code recognition
• Wiegand and RS-485 interfaces
• OSDP communication through RS-485
• 13.56 MHz ISO 14443A
• MIFARE® DESFire® card support
• GeoVision access card compatibility with GID (GeoVision Identifier)
• Case sensor for tamper alarm detection
| Frequency | 13.56 MHz ISO14443A |
| Wiegand Interface | Wiegand 26 / 34 bits, distance 100 m (328.1 ft) via GV-AS1620 / 2120 / 4110 / 4111 / 8110 / 8111 |
| RS-485 Interface | OSDP protocol, 9,600 bps, distance 600 m (1968.50 ft) |
| Read Range | 3 cm (max) |
| Keypad | 12 keys (0-9, C, E); illuminated keys |
| Input Port | Case Sensor x 1 |
| LED | Green / Red Bi-color LED x 1 (Status / Power) |
| Beeper | Buzzer |
| Color | Black |
| ID Setting | DIP Switch |
| Supported ID Formats | UID, GID, DES-ID |
| Power Source | DC 12V, 1A |
| Power Consumption | 300 mA (max) |
| Operating Temperature | -20 °C ~ 70°C (-4 °F ~ 158 °F) |
| Operating Humidity | 20~ 80% RH (non-condensing) |

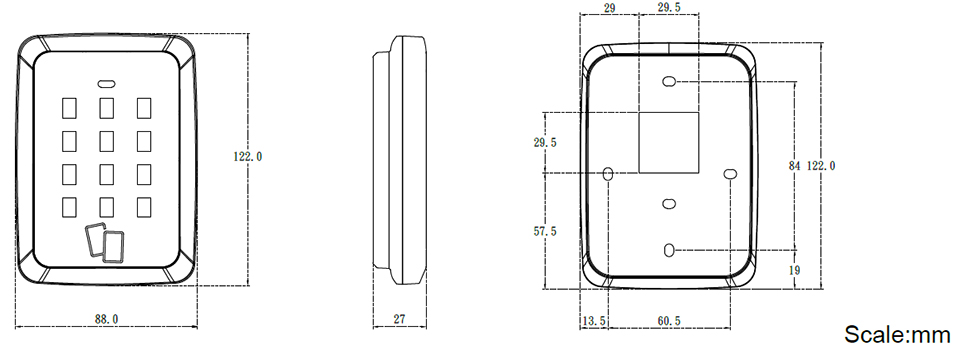

| Dimensions (L x W x H) | 122 x 88 x 28 mm / 4.8 x 3.5 x 1.1 in |
| Weight | 260 g / 0.57 lb |
| Ingress Protection | IP55 |
| Certification | CE, FCC, LVD, UKCA |

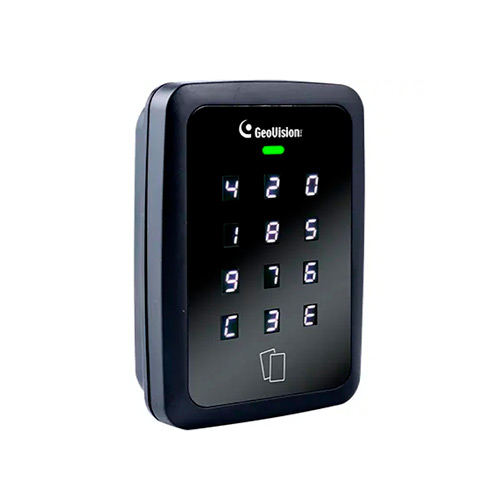

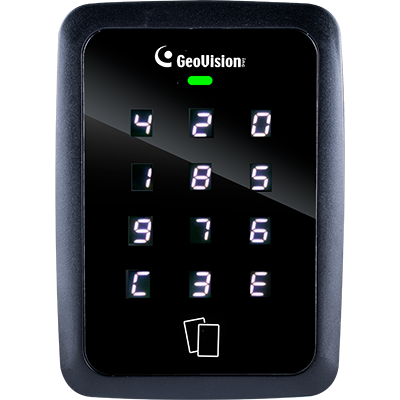

The 84-RKR1355-0010 is a scrambled keypad reader designed to enhance security during PIN entry. In standby mode, users can activate the keypad by touching any key or swiping a card, after which the digits 0–9 are displayed in a random order. This randomised layout ensures that only the person standing directly in front of the reader can see the digits, eliminating the risk of PIN codes being observed by onlookers. With both Wiegand and RS-485 interfaces, it can be seamlessly integrated into standard access control systems.
