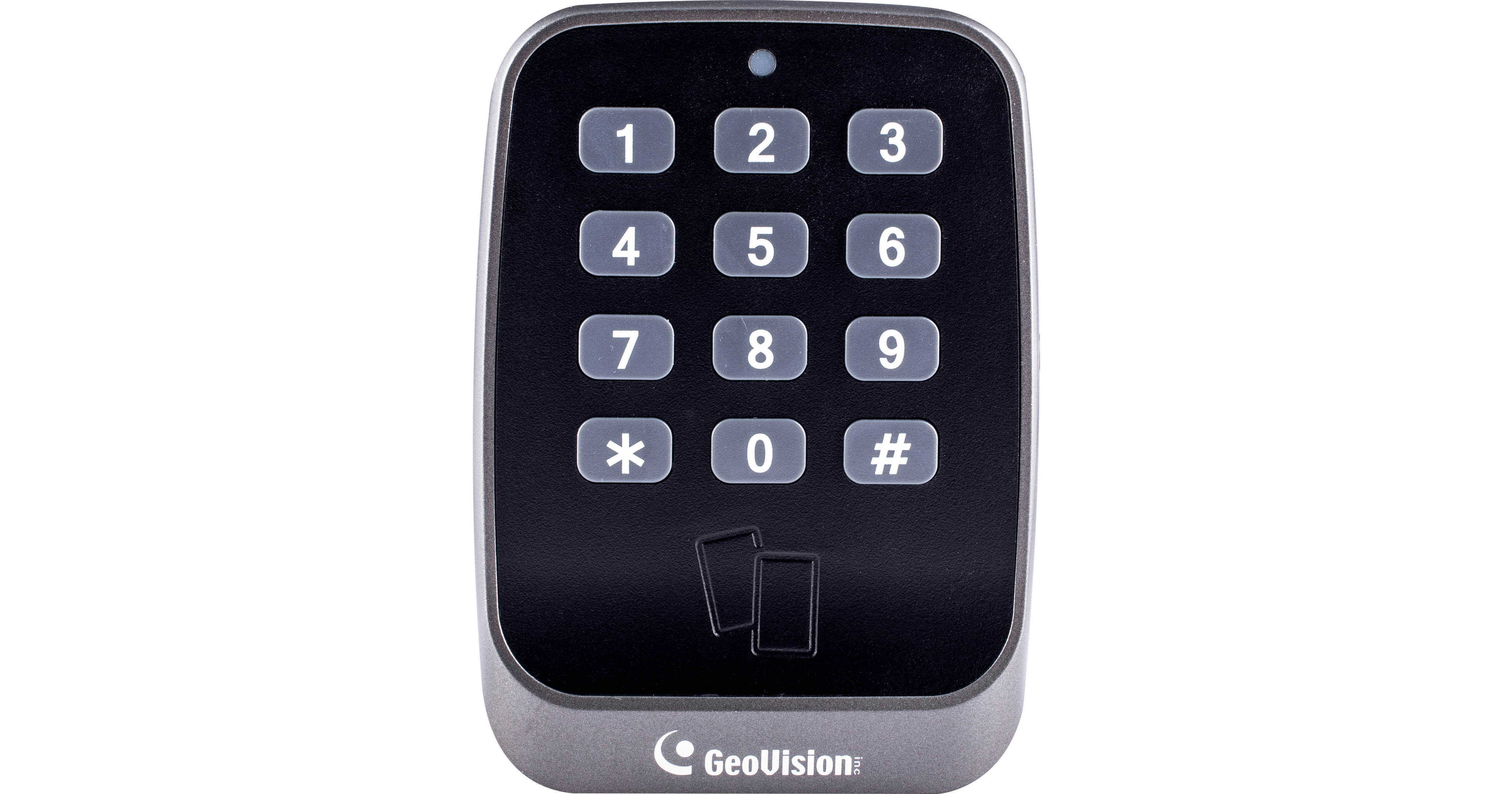

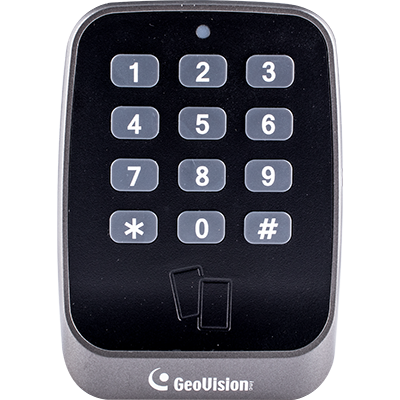

GeoVision - 84-RKV1355-0010 - Vandal-Resistant Keypad Reader
• Vandal-resistant zinc alloy enclosure
• Access control card and PIN code recognition
• Wiegand and RS-485 interfaces
• OSDP communication through RS-485
• 13.56 MHz ISO 14443A
• MIFARE® DESFire® card support
• GeoVision access card compatibility with GID (GeoVision Identifier)
• Ingress protection (IP66)
• Vandal resistance (IK08 for metal casing)
• Case sensor for tamper alarm detection
| Frequency | 13.56 MHz ISO14443A |
| Wiegand Interface | Wiegand 26 / 34 bits, distance 100 m (328.1 ft) via GV-AS1620 / 2120 / 4110 / 4111 / 8110 / 8111 |
| RS-485 Interface | OSDP protocol, 9,600 bps, distance 600 m (1968.50 ft) |
| Read Range | 3 cm (max) |
| Vandal-resistant Case | Yes |
| Keypad | 12 keys (0-9, *, #) |
| Input Port | Case Sensor x 1 |
| LED | Green / Red Bi-color LED x 1 (Status / Power) |
| Beeper | Buzzer |
| Color | Black |
| ID Setting | DIP Switch |
| Supported ID Formats | UID, GID, DES-ID |
| Power Source | DC 12V / 1A |
| Power Consumption | 300 mA (max) |
| Operating Temperature | -20 °C ~ 70°C (-4 °F ~ 158 °F) |
| Operating Humidity | 20~ 80% RH (non-condensing) |

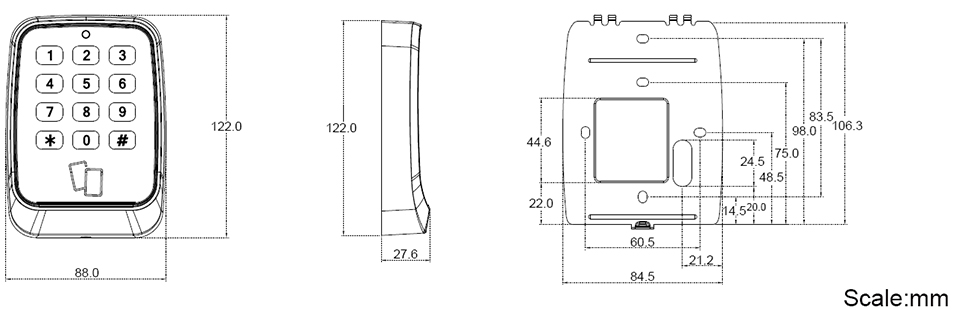

| Dimensions (L x W x H) | 122 x 88 x 28 mm / 4.8 x 3.5 x 1.1 in |
| Weight | 800 g / 1.76 lb |
| Ingress Protection | IP66 |
| Vandal Resistance | IK08 for metal casing |
| Certification | CE, FCC, LVD, UKCA |
The 84-RKV1355-0010 is a vandal-resistant keypad reader designed for use in high-security environments. With a zinc alloy casing, it is built to withstand physical tampering and is therefore ideal for locations such as banks and correctional facilities. Supporting both PIN code and access card authentication, it integrates easily into standard access control systems via Wiegand and RS-485 interfaces. Its IP66-rated enclosure ensures reliable performance in both indoor and outdoor settings.
