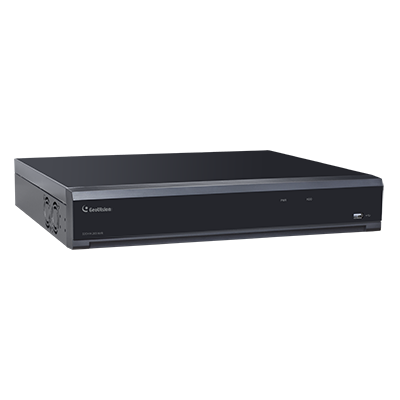

GeoVision - 84-RNR324-N00U - 32 Channel H.265/H.264 Standalone NVR 4 Bay, US
• Real-time AI Face Recognition (face tracking on E-Map, attendance management, and repeated visitor search)
• H.265 / H.264 video format
• Up to 32-ch IP camera input
• 2-ch HDMI, 1-ch VGA; HDMI #1 at up to 4K (3840 x 2160)
• 16 alarm inputs and 1 alarm output
• Up to 12 MP resolution recording
• 4 SATA interfaces, up to 12TB for each disk
• Two-way audio
• P2P function for GV-Eye app
• ONVIF cameras supported
| System | |
|---|---|
| Operating system | Embedded Linux |
| No. of Drive Bay | 4 (3.5" SATA HDD), up to 12 TB for each disk |
| Video and Audio | |
| Compression | Audio: G.711 Video: H.264 / H.265 |
| Resolution | 12 MP, 8 MP, 5 MP, 4 MP, 3 MP, 2 MP (1080p), 1 MP (720p) |
| Decoding Live / Playback Frame Rate | HDMI 1 12 MP: 60 fps in total (2 CH max.) 8 MP: 120 fps in total (4 CH max.) 5 MP: 180 fps in total (6 CH max.) 4 MP: 240 fps in total (8 CH max.) 3 MP: 330 fps in total (11 CH max.) 2 MP: 480 fps in total (16 CH max.) 720p: 960 fps in total (32 CH max.) |
| HDMI 1 + HDMI 2 12 MP: 60 fps in total (2 CH max.) 8 MP: 90 fps in total (3 CH max.) 5 MP: 150 fps in total (5 CH max.) 4 MP: 180 fps in total (6 CH max.) 3 MP: 240 fps in total (8 CH max.) 2 MP: 360 fps in total (12 CH max.) 720p: 840 fps in total (28 CH max.) | |
| Playback | Max. 16-ch playback |
| Operation | |
| Max. Bandwidth | Input: 320 Mbps |
| Output: 320 Mbps | |
| Playback Function | Fast forward/backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x, 1/16x) |
| Event Management | |
| Trigger | Schedule, Sensor Input, Motion Detection |
| Action | -Store Video (AVI format) |
| -Send e-mails with captured images | |
| -Upload captured images to FTP Server -Activate relay outputs to control external devices | |
| Web Monitoring | IE 10 / 11 Safari V12.1 or above Firefox V52 or above Google Chrome V57 or above Edge V79 or above |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Interface | |
| Monitor | VGA: 1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080) *Sync output with HDMI 1 |
| HDMI 1: 1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1400, 3840 x 2160) *Sync output with VGA | |
| HDMI 2: 1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080) *Spot out only | |
| Connector | Ethernet: 2 ports, RJ45 100/1000 Mbps |
| USB: USB 2.0 x 1 (front), USB 3.0 x 1, USB 2.0 x 1 (rear) | |
| Audio In: 1 RCA | |
| Audio Out: 1 RCA | |
| RS-485: 1 | |
| Alarm Input/Out: 16 in / 1 out | |
| e-SATA: 1 LED Indicator: 2 LEDs: Power, HDD | |
| General | |
| Language | Local Arabic, Bulgarian, Czech, Danish, English, Finnish, French, German, Greek, Hebrew, Hindi, Italian, Japanese, Korean, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Thai, Traditional Chinese, Turkish |
| Web Czech, English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese, Turkish | |
| Mechanical Design | |
| Dimensions (W x D x H) | 378 x 333.7 x 68 mm (14.88" x 13.14" x 2.68") |
| Net Weight | 2.26 kg (4.99 lb) |
| Rack Mount | Yes |
| Electrical | |
| Power Source | Input: AC 100 ~ 240 V, 50 ~ 60 Hz Output: 12 V DC, Max. 72 W |
| Power Consumption (excluding HDD and IP cameras) | 8 W |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | Less than 90% RH |
| Certification | CE, FCC, LVD, UKCA, BSMI, RoHS compliant |
| AI Integrated Function | |
| AI Analytics | Pedestrian Detection & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Cross Counting, Heat Map, Crowd Density Monitoring, Queue Length Detection, Face Detection, Rare Sound Detection *The video analytics functions are only applicable when AI-capable GV-R Series IP cameras are connected to the RNVR. |
| Face Recognition | Face Search, Face Tracking on E-Map, Repeated Visitor Search, Face Attendance Management *Face Recognition function is only applicable when AI-capable GV-R Series IP cameras are connected to the RNVR. |
| Network | |
| Protocol | 802.1x, DHCP, IPv4/IPv6, DynDNS, HTTP, HTTPS, NTP, RTSP, TCP, SNMP, UDP |
| Remote Monitoring | |
| Access from Web Browser | Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm |
| Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download | |
| Remote Setting: Channel (Live, Image control, Video Cover, Motion), Record (Encode, Capture), Alarm (Motion, I/O, Combination Alarm, PTZ Linkage), Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System | |
| Live View | PC-Based Software: Max. connection subject to the total output bandwidth of GV-RNVR3240-N *A total of up to 4-channel connection is supported for one non-IE browser. Mobile APP: Max. connection subject to the total output bandwidth of GV-RNVR3240-N |
| Playback | PC-Based Software: Max. connection subject to the total output bandwidth of GV-RNVR3240-N *A total of up to 4-channel connection is supported for each Web browser. Mobile APP: Max. connection subject to the total output bandwidth of GV-RNVR3240-N |
| Application | |
| Software Supported | GV-Control Center (V4.2.1 or later), GV-Edge Recording Manager Windows Version (V2.2.8 or later), GV-Vital Sign Monitor (V18.4.0 or later), GV-VPN |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0 or later) |
The GV-RNR324-N00U is an H.264/H.265 Linux-embedded standalone network video recorder that records video files directly to internal hard drives. The GV-RNVR3240-N supports up to 32 IP camera channels for video surveillance. With up to 4K resolution video output, the GV-RNVR3240-N eliminates the need for a separate PC to view and play back video from the unit. Its USB ports allow you to connect a USB mouse and a flash drive to back up videos. The Web Client allows users to access several functions via a web browser, including Live View, Change Stream, Manual Alarm and Divide Screen. The GV-RNVR3240-N integrates the capabilities of AI-enabled GV-R Series IP cameras and provides various analytics functions for perimeter protection. The Face Recognition function allows users to access the database to track faces on the E-Map, monitor attendance and search for repeat visitors, making the surveillance environment easier to use and safer.
