Geovision - 84-RNRL81-P01U - 8 Channel H.265 PoE Standalone Network Video Record
Product Overview

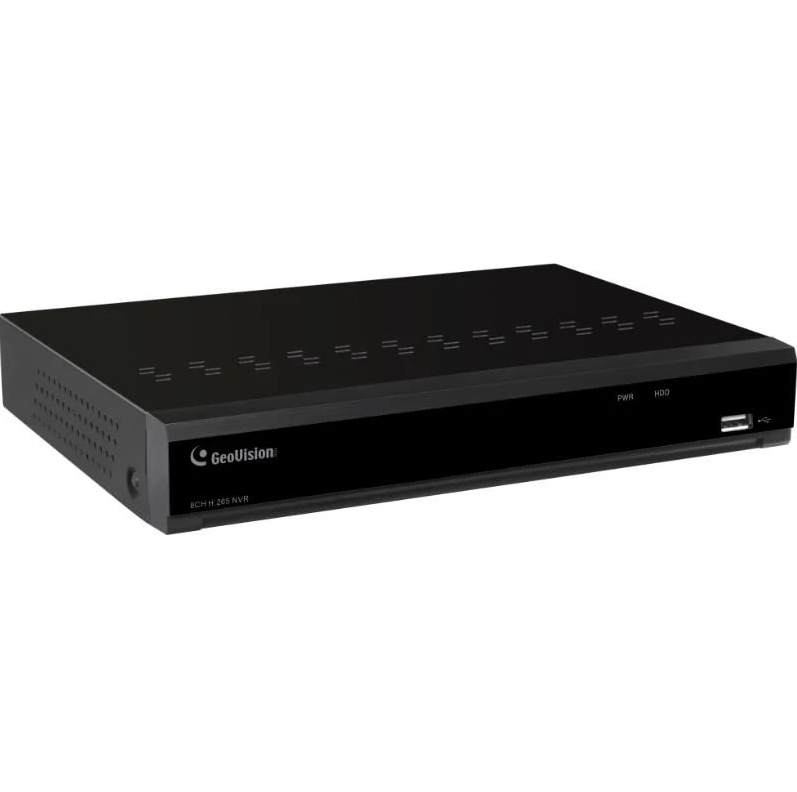

The GV‑RNVRL810‑P is a Linux‑embedded standalone network video recorder designed for IP surveillance systems, supporting up to 8 IP camera channels with built‑in PoE+ connectivity for simplified camera deployment. It offers H.265 and H.264 recording formats and delivers video output up to 4K resolution for high‑quality playback and monitoring.
Key Configuration
• NVR: Standalone Linux-embedded NVR supporting up to 8 IP camera channels.
• PoE: 8 × built-in RJ45 PoE+ ports compliant with IEEE 802.3at.
• Storage: 1 × SATA HDD bay supporting up to 10 TB.
• Video output: 1 × HDMI (up to 4K) and 1 × VGA.
• Alarm I/O: 8 alarm inputs and 1 alarm output for external device integration.
Key Features
The recorder supports H.265/H.264 recording up to 8 MP, two‑way audio, and ONVIF camera compatibility. Remote access is available via GV‑Eye and Web Client (Live View, stream switching, alarm, screen division). With compatible AI‑capable GV‑R Series cameras, it enables face tracking on E‑Map, attendance management, and repeated visitor search.
Technical Context
The GV‑RNVRL810‑P records video directly to an internal hard drive and operates as a standalone unit for local viewing and playback without requiring a separate PC. Its integrated PoE+ switch provides both data and power to connected IP cameras, while ONVIF support ensures compatibility with a wide range of third‑party network cameras.
Installation Notes

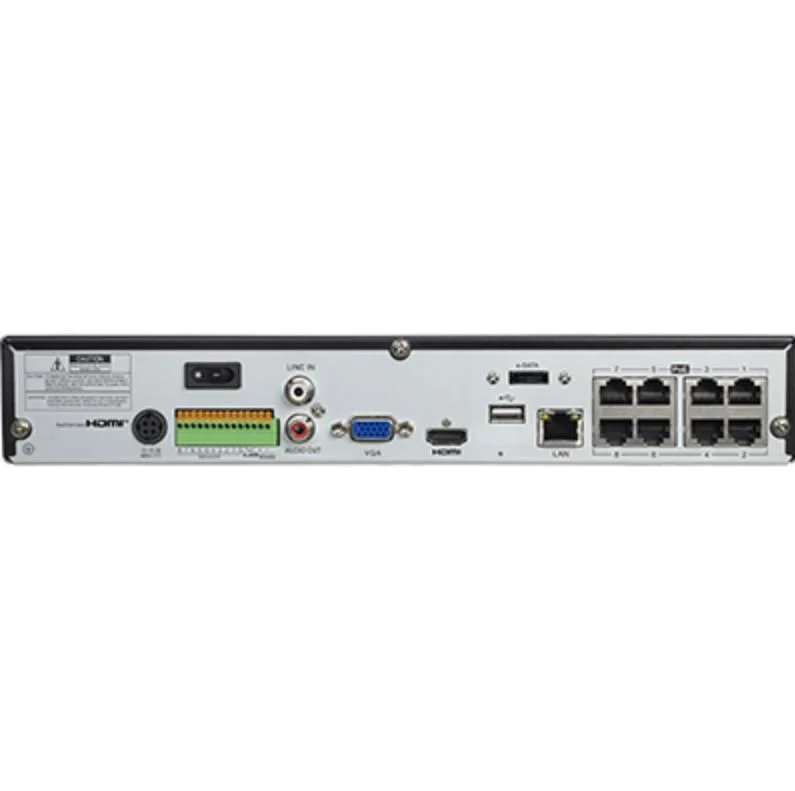

The recorder includes one SATA interface for a hard drive up to 10 TB, HDMI and VGA outputs for local display, USB ports for mouse and flash drive connectivity, and alarm terminals for external sensor or alarm integration.
| System | |
| Operating System | Embedded Linux |
| No. of Drive Bay | 1 x 3.5" SATA HDD, up to 10 TB |
| Video and Audio | |
| Compression | Audio: G.711; Video: H.264 / H.265 |
| Resolution | 8 MP, 5 MP, 3 MP, 2 MP (1080P), 1.3 MP (960P), 1.0 MP (720P) |
| Live / Playback Frame Rate | 8 MP: 30 fps total (1 CH max.); 5 MP: 60 fps total (2 CH max.); 4 MP: 90 fps total (3 CH max.); 2 MP: 180 fps total (6 CH max.); 720p: 240 fps total (8 CH max.) |
| Playback | Max. 4-channel playback |
| Operation | |
| Max. Bandwidth | Input: 76 Mbps; Output: 32 Mbps |
| Playback Function | Fast forward/backward: 2x, 4x, 8x, 16x; Slow forward: 1/2x, 1/4x, 1/8x, 1/16x |
| Event Trigger | Schedule, Sensor Input, Motion Detection |
| Event Action | Store video in AVI format; send e-mails with captured images; upload captured images to FTP server; activate relay outputs to control external devices |
| Web Monitoring | IE 10 / 11, Safari V12.1 or above, Firefox V52 or above, Google Chrome V57 or above, Edge V79 or above |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Interface | |
| Monitor | VGA x 1: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080; HDMI x 1: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160 |
| Ethernet | 1 x RJ-45 10/100 Mbps port |
| PoE | 8 x RJ-45 PoE+ ports, IEEE 802.3at |
| USB | USB 2.0 x 1 front; USB 2.0 x 1 rear |
| Audio | Line In: 1 RCA; Audio Out: 1 RCA |
| RS-485 | 1 |
| Alarm Input/Out | 8 in / 1 out |
| e-SATA | 1 |
| LED Indicator | 2 LEDs: Power, HDD |
| General | |
| Local Languages | Arabic, Bulgarian, Czech, Danish, English, Finnish, French, German, Greek, Hebrew, Hindi, Italian, Japanese, Korean, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Thai, Traditional Chinese, Turkish |
| Web Languages | Czech, English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese, Turkish |
| Mechanical Design | |
| Dimensions (W x D x H) | 300 x 215.3 x 52.5 mm (11.8" x 8.4" x 2") |
| Net Weight | 1.08 kg (2.38 lb) |
| Rack Mount | N/A |
| Electrical | |
| Power Source | Input: AC 100 ~ 240 V, 50 ~ 60 Hz; Output: DC 48 V, 1.5 A; PoE Switch: 58 W |
| Power Consumption | 6 W, excluding HDD and IP cameras |
| Environment and Certification | |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | Less than 90% RH |
| Certification | CE, FCC, LVD, BSMI, RoHS compliant |
| AI Integrated Function | |
| AI Analytics | Face Detection, Pedestrian & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing, Cross Counting, Heat Map, Crowd Density, Queue Length, Rare Sound Detection, Object Detection, Sound Detection, Intrusion, Enter Region, Exit Region. These functions are only applicable when AI-capable GV-R series IP cameras are connected to the RNVR. |
| Network | |
| Protocol | DHCP, DynDNS, HTTP, HTTPS, IPv4/IPv6, NTP, RTSP, SNMP, TCP, UDP |
| Remote Monitoring | |
| Access from Web Browser | Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm; Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download; Remote Setting: Channel, Record, Alarm, Network, Device, System |
| Live View | PC-Based Software: max. connection subject to total output bandwidth; Mobile App: max. connection subject to total output bandwidth. Up to 4-channel connection is supported for one non-IE browser. |
| Playback | PC-Based Software: max. connection subject to total output bandwidth; Mobile App: max. connection subject to total output bandwidth. Up to 4-channel connection is supported for each Web browser. |
| Application | |
| Supported Software | GV-Control Center V4.2.1 or later, GV-Edge Recording Manager Windows Version V2.2.8 or later, GV-Vital Sign Monitor V18.4.0 or later, GV-VPN |
| Smart Device Access | GV-Eye for iOS and Android V3.2.0 or later |
