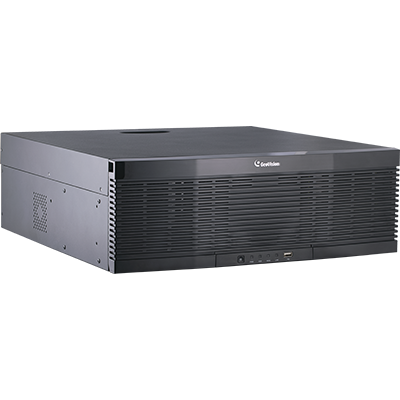

GeoVision - 84-RNRP6G-000U - 256 Channel H.265/H.264 Standalone NVR 16 Bay
• Real-time AI Face Recognition (face tracking on E-Map, attendance management, and repeated visitor search)
• H.265 / H.264 video format
• Up to 256-ch IP camera input
• 4-ch HDMI; HDMI #1 at up to 8K
• 16 alarms input and 4 alarm outputs
• Up to 12 MP resolution recording
• 16-bay hot-swap SATA HDDs, up to 18 TB for each disk
• Two-way audio
• P2P function for GV-Eye app
• ONVIF cameras supported
• RAID 0, 1, 5, 6, 10
| System | |
|---|---|
| Operating system | Embedded Linux |
| No. of Drive Bay | 16 (3.5" SATA HDD), up to 18 TB for each disk |
| Video and Audio | |
| Compression | Audio: G.711 Video: H.264 / H.265 |
| Resolution | 12 MP, 8 MP, 5 MP, 3 MP, 2 MP (1080p), 1.3 MP (960p), 1 MP (720p) |
| Decoding Live / Playback Frame Rate | 12 MP: 150 fps in total (5 CH max.) 8 MP: 240 fps in total (8 CH max.) 5 MP: 390 fps in total (13 CH max.) 4 MP: 480 fps in total (16 CH max.) 2 MP: 960 fps in total (32 CH max.) 720p: 2160 fps in total (72 CH max.) 480p: 4560 fps in total (152 CH max.) |
| Playback | Max. 16-ch playback |
| Operation | |
| Max. Bandwidth | Input: 1024 Mbps |
| Output: 800 Mbps | |
| Playback Function | Fast forward/backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x, 1/16x) |
| Event Management | |
| Trigger | Schedule, Sensor Input, Motion Detection |
| Action | -Store Video (AVI format) |
| -Send e-mails with captured images | |
| -Upload captured images to FTP Server -Activate relay outputs to control external devices | |
| Web Monitoring | IE 10 / 11 Safari V12.1 or above Firefox V52 or above Google Chrome V57 or above Edge V79 or above |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Interface | |
| Monitor HDMI | HDMI 1: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 1600 x 1200, 1920 x 1200, 3840 x 2160, 7680 x 4320 |
| HDMI 2, 3: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 1600 x 1200, 1920 x 1200, 3840 x 2160 HDMI 4: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080 *The device only supports HDMI 1 output 8K. If the output resolution of HDMI 1 is set to 8K, the maximum output resolution of HDMI 3 and 4 will be limited to 1080P, and HDMI 2 will be disabled. | |
| Connector | Ethernet: 2 ports, RJ45 100/1000 Mbps |
| USB: USB 2.0 x 1 (front), USB 3.0 x 2 (rear) | |
| Line In: 1 RCA | |
| Audio Out: 1 RCA | |
| RS-232: 1 RJ45 (not functional) | |
| RS-485: 1 | |
| Alarm Input/Out: 16 in / 4 out e-SATA: 1 LED Indicator: 4 LEDs: Power, HDD, LAN x 2 | |
| RAID Type | 0, 1, 5, 6, 10 |
| General | |
| Language | Local Arabic, Bulgarian, Danish, English, Finnish, French, German, Greek, Hebrew, Hindi, Italian, Japanese, Korean, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Thai, Traditional Chinese, Turkish |
| Web English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Turkish | |
| Mechanical Design | |
| Dimensions (W x D x H) | 439 x 466.1 x 149 mm (17.28" × 18.35" × 5.87") |
| Net Weight | 9.3 kg (20.5 lb) |
| Rack Mount | Yes |
| Electrical | |
| Power Source | Input: AC 100 ~ 240 V, 50 ~ 60 Hz |
| Power Consumption (excluding HDD and IP cameras) | 8W |
| Operating / Temperature | Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | Less than 90% RH |
| Certification | CE, FCC, LVD, RoHS compliant |
| AI Integrated Function | |
| AI Analytics | Pedestrian Detection & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Cross Counting, Heat Map, Crowd Density Monitoring, Queue Length Detection, Face Detection, Rare Sound Detection *The video analytics functions are only applicable when AI-capable GV-R Series IP cameras are connected to the RNVR. |
| Face Recognition | Face Search, Face Tracking on E-Map, Repeated Visitor Search, Face Attendance Management *Face Recognition function is only applicable when AI-capable GV-R Series IP cameras are connected to the RNVR. |
| Network | |
| Protocol | 802.1x, DHCP, IPv4/IPv6, DynDNS, HTTP, HTTPS, NTP, RTSP, TCP, SNMP, UDP |
| Remote Monitoring | |
| Access from Web Browser | Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm |
| Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download | |
| Remote Setting: Channel (Live, Image control, Video Cover, Motion), Record (Encode, Capture), Alarm (Motion, I/O, Combination Alarm, PTZ Linkage), Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System | |
| Live View | PC-Based Software: Max. connection subject to the total output bandwidth of GV-RNVR256G0-N *A total of up to 4-channel connection is supported for one non-IE browser. Mobile APP: Max. connection subject to the total output bandwidth of GV-RNVR256G0-N. |
| Playback | PC-Based Software: Max. connection subject to the total output bandwidth of GV-RNVR256G0-N *A total of up to 4-channel connection is supported for each Web browser. Mobile APP: Max. connection subject to the total output bandwidth of GV-RNVR256G0-N. |
| Application | |
| Software Supported | GV-Control Center (V4.2.1 or later), GV-Edge Recording Manager Windows Version (V2.2.8 or later), GV-Vital Sign Monitor (V18.4.0 or later), GV-VPN |
| Smart Device Access | GV-Eye for iOS and Android (V3.2.0) |
The 84-RNRP6G-000U is an H.264/H.265 Linux-embedded standalone network video recorder that records video files directly to internal hard drives and supports up to 256 channels of IP cameras for video surveillance. With video output of up to 8K resolution, there is no need for a separate PC to view and playback video from the unit. Its USB ports allow you to connect a USB mouse and a flash drive to back up videos. The Web Client allows users to access several functions via a web browser, including Live View, Change Stream, Manual Alarm and Divide Screen. The 84-RNRP6G-000U integrates the capacity of AI-capable GV-R Series IP cameras and provides various analytics functions for perimeter protection. The Face Recognition function allows users to access the database for face tracking on E-Map, face attendance management, and repeated visitor searches, enhancing the convenience and security of the surveillance environment.
