GeoVision - 84-SNR643W-001U - 64 Channel 4K H.265/H.264 Standalone NVR
• 64-channel video recording
• Up to 4000 x 3000 resolution for each channel
• Dual streams support
• Triple display from 3 video outputs with distinct layouts: one 4K (HDMI), two 1080p (HDMI / VGA)
• 8 SATA HDD drawers (3.5") for up to 160 TB storage (see HDD Notes below)
• Two‐way audio
• 16 sensor inputs and 4 alarm outputs
• Automatic search and set-up for IP cameras
• Support for third‐party IP cameras through ONVIF and RTSP protocol
• Continuous, motion, scheduled and alarm-triggered recording
• Timeline playback
• Multi-channel playback
• Display of HDD status and system temperature
• DST (Daylight Saving Time) support
• NTP (Network Time Protocol) support
• GeoVision DDNS server support
• E-mail notifications for recording errors and password retrieval
• Recording export
• Remote live view through a Web browser
• Smart device access (iOS and Android)
• 12 languages supported
| System | |
|---|---|
| OS | Embedded Linux |
| No. of Drive Bay | 8 (3.5" HDD), up to 160 TB *See the Recommended Hard Disks section below. |
| Power Source | Input: AC 100 ~ 240V, 50 ~ 60 Hz |

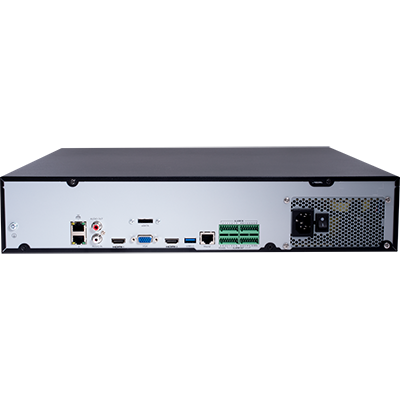

| Connector | |
| Gigabit Ethernet | 2 ports, RJ-45 10/100/1000 Mbps |
| Video Output | HDMI output ports x 2, VGA output port x 1 |
| Audio | RCA, Audio In/Out |
| USB | Front: USB 2.0 x 2 ports, Rear: USB 3.0 x 1 port |
| RS-485 | Not functional |
| I/O Terminal Block | 16 inputs, 4 outputs, DC 12V out (1A) |
| LED Indicator | 6 LEDs: RUN, NET, GUARD, HD, ALM, CLOUD (not functional) |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 0% ~ 90% RH (non-condensing) |
| Dimensions (L x W x H) | 442 mm × 426 mm × 89 mm (17.4" × 16.8"× 3.5") |
| Net Weight | 5.7 kg (12.57 lb) |
| Certification | FCC, CE, BSMI, RoHS, UL compliant |
| Video and Audio | |
| Video Compression | H.264, H.265 |
| Video Stream | Dual streams from H.264, H265 |
| Video Output | 4K (HDMI), 1080p (HDMI / VGA) *Up to three video outputs with distinct user-defined layouts are supported, subject to the SNVR's maximum channel capability and frame rate. |
| Audio Compression | G.711 |
| Audio Support | Yes |
| Two-Way Audio | Yes |
| Disk Array | |
| Array Type | RAID 0, 1, 5, 6, 10 |
| Interface | |
| VGA Output | 1 port (1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz) |
| HDMI Output | 2 ports (3840 x 2160 /30 Hz, 1920 x 1080p / 60 Hz, 1920 x 1080p / 50 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz) *HDMI audio output is not supported. |
| Decoding Frame Rate | Main 12 MP: up to 30 fps/CH, 60 fps in total (2 CH max.) 8 MP: up to 30 fps/CH, 120 fps in total (4 CH max.) 5 MP: up to 30 fps/CH, 180 fps in total (6 CH max.) 4 MP: up to 30 fps/CH, 240 fps in total (8 CH max.) 4 MP: up to 25 fps/CH, 225 fps in total (9 CH max.) 1080P: up to 30 fps/CH, 480 fps in total (16 CH max.) 960P: up to 25 fps/CH, 800 fps in total (32 CH max.) 720P: up to 30 fps/CH, 1080 fps in total (36 CH max.) D1: up to 30 fps/CH, 1920 fps in total (64 CH max.) *When connected to more than one monitor, live view images for multiple windows will automatically be converted to sub streams. |
| Sub 720P: up to 30 fps/CH, 1080 fps in total (36 CH max.) D1: up to 30 fps/CH, 1920 fps in total (64 CH max.) | |
| Playback | Max. 16-ch playback |
| Fisheye Dewarping | A total of 3-ch (live view + playback) |
| Operation | |
| Recording Bandwidth | Input: Max. 384 Mbps |
| Output: Max. 384 Mbps | |
| Recording Mode | Normal, Motion Detection, Alarm Input, Alarm Output, Manual Alarm, Audio Detection Recording, Schedule Recording, Event recording, Snapshot, Manual recording |
| Pre Recording | 0 ~ 60 sec. / Default 10 sec. |
| Post Recording | 5 ~ 600 sec. / Default 60 sec. |
| Instant Playback | 5 minutes and 30 seconds |
| Backup Type | USB flash drive of FAT32 or NTFS format |
| Playback Function | Fast forward / backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x) |
| Corridor Mode | 3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32 |
| Multi-Window | 4 / 6 / 8 / 9 / 16 / 25 / 36 / 64 |
| Video Analytics | Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind |
| AI Integrated Function | |
| AI Analytics | Intrusion Detection, Cross Line Detection, Enter Area, Face Detection, Leave Area (Human classification), Auto Tracking, People Flow Counting, Crowd Density Monitoring *These functions are applicable only when the NVR is connected to AI-capable IP cameras listed in the Compatible AI-Capable GV-IP Cameras section below. |
| Management | |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Firmware upgrade | Upgrade through Web |
| Web Browser | IE 10 or above Firefox V52 or above Google Chrome V45 or above Edge V79 or above |
| Network | |
| Protocol | 802.1x, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP |
| System Monitoring and Recovery | |
| Power Restoration | Automatic restart after power outage |
| Remote Monitoring | |
| Multi-Window | 1 / 4 / 6 / 8 / 9 / 10 / 13 / 16 / 25 / 36 / 64 |
| Monitoring Environment | IE browser, non-IE bowsers (Chrome, Edge Firefox), Mobile app |
| Access from Web Browsers | Live View, Image Snapshot, Playback, Digital PTZ, System Configurations |
| Live View | PC-Based Software: Max. number of connections depends on the total output bandwidth of the SNVR Mobile APP: Max. number of connections depends on the total output bandwidth of the SNVR |
| Playback | PC-Based Software: Max. number of connections depends on the total output bandwidth of the SNVR Mobile APP: Max. number of connections depends on the total output bandwidth of the SNVR |
| Applications | |
| Software Supported | GV-Control Center (V4.1.1 or later), GV-Edge Recording Manager Windows Version (V2.2.4 or later), GV-ASManager (V6.0.2 or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.0.0 or later) |

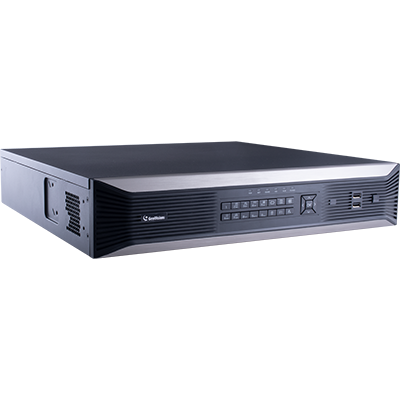

The 84-SNR643W-001U is a standalone network video recorder with an embedded Linux operating system that records video files directly to its internal hard drive. It supports up to 64 IP camera channels for video surveillance. Thanks to its video output with a resolution of up to 4K, the 84-SNR643W-001U eliminates the need for a separate PC to view and playback video from the unit. USB ports allow you to import or export system settings, update firmware, store snapshot files and back up videos.
