GeoVision - 84-SRK1356-0010 - Dual-band RFID Reader
Part number:
Price:
• Dual band frequency: 125 kHz, 13.56 MHz
• Wiegand and RS-485 interfaces
• OSDP communication through RS-485
• 13.56 MHz ISO 14443A
• External LED control and external buzzer control
• Access control card and PIN code recognition
• Weather-proof and IP66-compliant housing
| RFID Frequency | Dual Band |
| 125 kHz | |
| 13.56 MHz ISO14443A | |
| Wiegand Interface | Wiegand 26 bits for 125 kHz, 26 / 34 bits for 13.56 MHz, distance 100 m (328.1 ft) via GV-AS1620 / 2120 / 4110 / 4111 / 8110 / 8111 |
| RS-485 Interface | OSDP protocol, 9,600 bps, distance 600 m (1968.50 ft), AES 128 encryption |
| Read Range | 2 ~ 4 cm (0.78" ~ 1.57") |
| Keypad | 10 keys (0-9), symbol keys (*, #) |
| LED | Bi-color LED (Red / Green) |
| Beeper | Buzzer |
| Color | Black |
| ID Setting | On reader setting |
| Supported ID Format | UID |
| Power Source | DC 12 ~ 18V |
| Power Consumption | 50 mA (max) |
| Operating Temperature | -40 °C ~ 60°C (-40 °F ~ 140 °F) |
| Operating Humidity | 0~ 98% RH (non-condensing) |

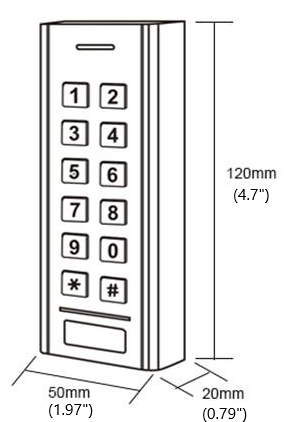

| Dimensions (L x W x H) | 120 x 50 x 20 mm (4.72" x 1.97" x 0.79") |
| Weight | 150 g (0.33 Ib) |
| Ingress Protection | IP66 |
| Certification | CE, FCC, UKCA compliant |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
File
Installation Guide
0.2mb
File
GV-Access Control Reader Comparison
0.4mb
File
Compatibility Table for GV-AS Controllers
0.8mb
The 84-SRK1356-0010 is a dual-band OSDP keypad reader capable of reading PIN codes and access cards. Its dual-band capability gives integrators great flexibility in solving card management issues in locations with both 125 kHz and 13.56 MHz readers installed. It comes with a weather-sealed and IP66-compliant housing for outdoor use.
