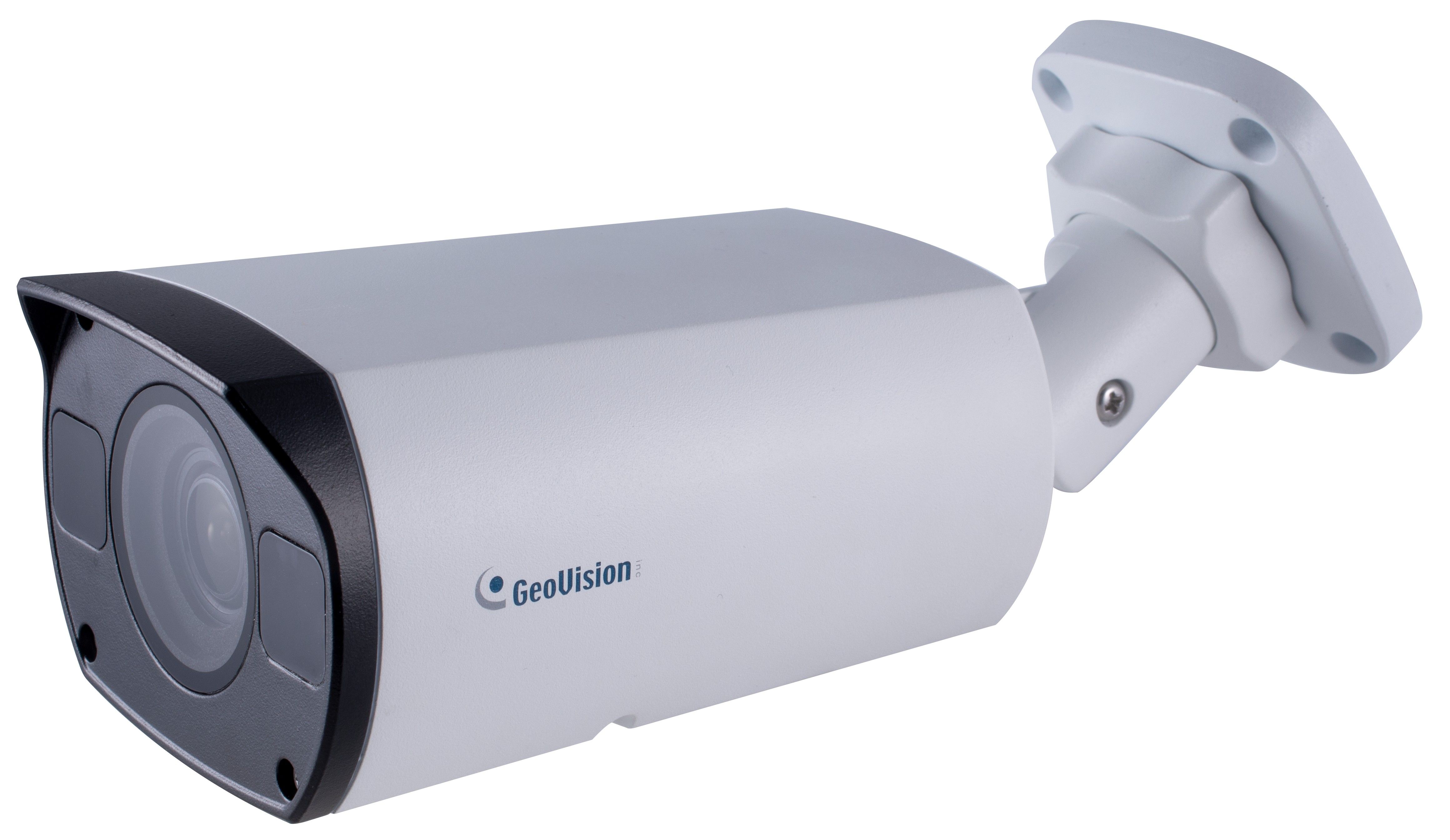

GeoVision - 84-TBL480W-0010 - AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Bullet IP Camera with 2.7-13.5mm Lens, 125-TBL4810-000
Part number:
Price:
Product Overview
GV-TBL4810 is an exceptional outdoor surveillance solution, boasting a 4MP resolution and advanced AI-driven features, including human and vehicle classification. With its super low lux capability and WDR Pro technology, this IP camera delivers clear imagery in low-light conditions. Built to last with an IK10-rated metal casing and IP67 ingress protection, it is ideal for various environments. Its compatibility with Power over Ethernet (PoE) ensures easy installation, while the integrated GeoVision Video Management Software further enhances functionality.
Key Configuration
Model: 84-TBL480W-0010
Key Features
- • AI deep learning: AI Perimeter Protection Classification (Human, Vehicle).
- • 1/3" progressive scan super low lux CMOS.
- • Min. illumination at 0.002 lux.
- • Triple streams from H.265, H.264 or MJPEG.
- • Up to 30 fps at 2688 x 1520.
Installation Notes
244 × 96 ×74 mm (9.6” × 3.8” × 2.9”)
| Specifications | |
| Features | Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Automatic, Manual |
| Dimensions (W x H) | 244 × 96 ×74 mm (9.6” × 3.8” × 2.9”) |
| Electronic Shutter | Auto / Manual (1 ~ 1/100000 sec) |
| Image Device | 1/3" progressive scan super low lux CMOS |
| IR LEDs | 3 |
| Minimum Scene Illumination | 0.002 Lux (F1.2, AGC ON) |
| Operating Humidity | 0 ~ 95% (no condensation) |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Power Consumption | 8.5W |
| Protocols | 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| S/N Ratio | 56 dB |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D |
| Automatic White Balance | Automatic, Manual |
| IR Distance | 50m/165ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Details | |
| 1/3" progressive scan super low lux CMOS | DC 12V / PoE (IEEE 802.3af) |
| Triple streams from H.265, H.264 or MJPEG | ONVIF (Profile G, S, T) conformant |
| Intelligent IR | Ingress protection (IP67) |
| IR distance up to 50 m (165 ft) | Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage |
