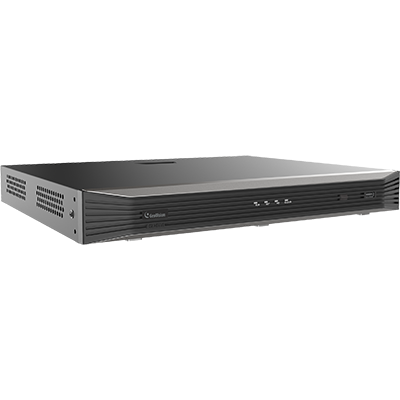

GeoVision - 84-TNR1620-P00U - 16 Channel H.265/H.264 POE Standalone NVR 2 Bay, US
• 16 channels with two (2) SATA ports
• Up to 12 MP resolution recording
• VGA and HDMI simultaneous output, up to 4K (3840 x 2160)
• 16-port PoE plug-and-play
• Two-way audio
• 8 alarm inputs and 2 alarm outputs
• Real-time face recognition
• Analytics by cameras supported
• AcuSearch to search for vehicles or people by designating an area of interest in the live view or recordings
• Smart device access (iOS and Android)
• ONVIF cameras supported
• GV-VPN supported
• 12 languages supported
| System | |
|---|---|
| Operating system | Embedded Linux |
| No. of Drive Bay | 2 (3.5" SATA HDD), up to 10 TB for each disk* |
| Video and Audio | |
| Compression | Audio: G.711 Video: H.264 / H.265 |
| Decoding Live / Playback | AI Off 12 MP: 60 fps in total (2 CH max.) 8 MP: 60 fps in total (2 CH max.) 4 MP: 120 fps in total (4 CH max.) 1080P: 300 fps in total (10 CH max.) 720P: 480 fps in total (16 CH max.) |
| AI On 8 MP: 60 fps in total (2 CH max.) 4 MP: 30 fps in total (4 CH max.) 1080P: 240 fps in total (8 CH max.) 720P: 480 fps in total (16 CH max.) | |
| Playback | Max. 16 channels |
| Operation | |
| Max. Bandwidth | Input: 160 Mbps |
| Output: 128 Mbps | |
| Playback Function | Fast forward/backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x, 1/16x) |
| Live View Display | 1 / 4 / 6 / 8 / 9 / 16 |
| Web Browser | IE 10 / 11 Firefox V52 or above Google Chrome V45 or above Edge V79 or above |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility (V9.0.5 or later) |

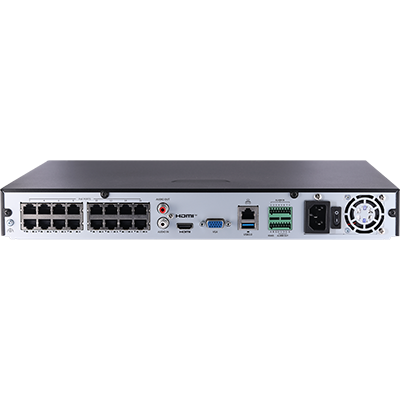

| Interface | |
| Monitor | VGA: 1 port 60 Hz: 1024 x 768, 1280 x 720, 1280 x 1024, 1600 x 1200, 1920 x 1080 50 Hz: 1920 x 1080 |
| HDMI: 1 port 60 Hz: 1024 x 768, 1280 x 720, 1280 x 1024, 1600 x 1200, 1920 x 1080 50 Hz: 1920 x 1080 30 Hz: 3840 x 2160 (4K) | |
| Connector | Ethernet: 1 port, RJ45 10/100/1000 Mbps |
| PoE: 16 ports, RJ45, PoE+ (IEEE 802.3at) | |
| USB: USB 2.0 x 1 (front), USB 3.0 x 1 (rear) | |
| Audio In: 1 RCA | |
| Audio Out: 1 RCA | |
| RS-485: Not functional Alarm Input/Out: 8 in / 2 out LED Indicator: 4 LEDs: RUN, NET, HD, CLOUD (not functional) | |
| General | |
| Dimensions (W x D x H) | 380 x 322 x 53 mm (15" x 12.7" x 2.1") |
| Weight | 2.7 kg (6.0 lb) |
| Rack Mount | Yes |
| Power | |
| Power Source | Input: AC 100 ~ 240 V, 50 ~ 60 Hz |
| PoE Switch | Max 30 W for single port, Max 240 W in total |
| Power Consumption | 12 W (excluding HDD and IP cameras) |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 0% ~ 90% RH (non-condensing) |
| Certification | CE, FCC, LVD, UKCA, BSMI, RoHS compliant |
| AI Integrated Function | |
| AI Analytics | AI by Camera Intrusion Detection, Cross Line Detection, Enter Area, Face Detection, Leave Area, People Flow Counting, Crowd Density Monitoring * These functions are only applicable when the NVR is connected to AI-capable GV-IP cameras, as listed in the Compatible AI-Capable GV-IP Cameras section below. |
| AI by NVR - Face Recognition (Face Detection, Face Comparison): max. 1 CH - Smart Intrusion Protection (Cross Line Detection, Intrusion Detection, Enter Area, Leave Area): max. 2 CHs - Ultra Motion Detection (only to AI-capable GV-IP cameras, as listed in the Compatible AI-Capable GV-IP Cameras section below): max. 4 CHs - AcuSearch: max. 1 CH * Only one of these functions (Face Recognition, Smart Intrusion Protection, Ultra Motion Detection, and AcuSeach) can be enabled at a time. * Only one analyzer setup (Camera-Side Analysis or NVR-Side Analysis) can be enabled at a time. | |
| Face Picture Library | Up to 16 face lists, with up to 50,000 face pictures in total |
| Network | |
| Protocol | 802.1x, DDNS, DHCP, DNS, HTTP, HTTPS, IPv4/IPv6, NTP, PPPoE, RTSP, SMTP, SNMP |
| Remote Monitoring | |
| Access from Web Browser | Live View, Image Snapshot, Playback, Digital PTZ, System Configurations |
| Application | |
| Software Supported | GV-Control Center (V4.2.1 with Patch, or later), GV-Edge Recording Manager Windows Version (V2.3.1 with Patch, or later), GV-VPN (V1.1.2 or later), GV-Vital Sign Monitor (V18.4.1 with Patch, or later) |
| Smart Device Access | GV-Eye for iOS and Android (V3.5 or later) |
The 84-TNR1620-P00U is a standalone network video recorder with an embedded Linux operating system that records video directly to its internal hard drives. Supporting up to 16 IP camera channels for video surveillance, it features 16 built-in PoE ports (IEEE 802.3at) that provide power and network connectivity to connected IP cameras. With video output support up to 4K resolution, the GV-TNVR1620-P eliminates the need for a separate PC to view or playback recordings. USB ports are available for importing/exporting system settings, updating firmware, storing snapshots and backing up video files. The 84-TNR1620-P00U also features advanced AI functions, including face recognition, smart intrusion detection, and people and vehicle motion detection. When integrated with AI-capable GV-IP cameras, it provides a wide range of analytics to meet your diverse perimeter protection and surveillance needs.
