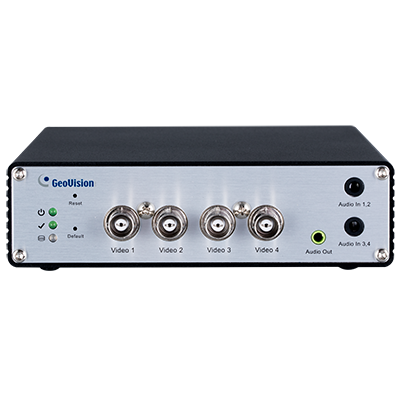

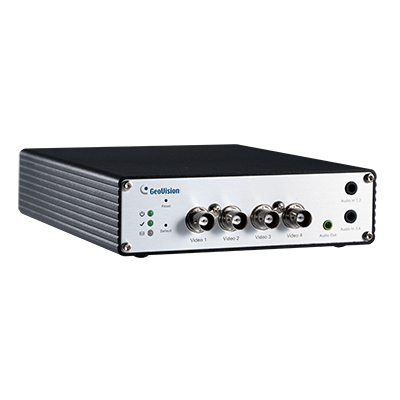

GV-VS2401 is a small but powerful H.264 HD Video Encoder that supports 4-channel 3 MP, 5 MP, 1080p, 720p and analog 960H, D1 real-time video. It can be fully integrated with GV-NVR and GV-VMS to create a robust IP surveillance solution. GV-VS2401 converts analog data into high-resolution digitized images with resolutions up to 5 megapixels and supports over 50 PTZ models to meet a variety of project requirements. As a tiny video recorder, it can record videos to a local USB storage device. It can also send Tampering Alarm alerts when cameras are tampered with, which can help to deter criminal activity.

Features:

• H.264
• 4-channel combo 18 fps at 3 MP, 15 fps at 4 MP, 12 fps at 5 MP
• 4-channel combo 1080p / 720p and analog 960H / D1 real-time video
• 12V DC
• Tampering alarm
• USB HDD storage with up to 14 TB capability
• Support for UMTS, 3G, 3.5G and 4G
• Automatic switch between WiFi and 3G / 4G
• Support for over 50 PTZ models
• Support for 29 languages on Web interface
• HD-TVI (1.0 / 2.0 standard) / HD-AHD
• ONVIF (Profile S) conformant

Note:

• GV‐HD Video Encoder cannot work with microphones that acquire power from the unit. Use microphones that have external power supply.
• It is not recommended to use the flash USB drive with GV-VS2401 because of its slow read and write speed.
• When transmitting video signals over a long distance, it is highly recommended to use 5C-FB coaxial cables or above to minimize the degradation of image quality. The transmission distance should be within 300 m (984 ft).
• Product design and specifications are subject to change without notice.
