Geovision - 84-XV08100-UA0U - 8 Channel, 8MP, HD DVR, H.265
Product Overview

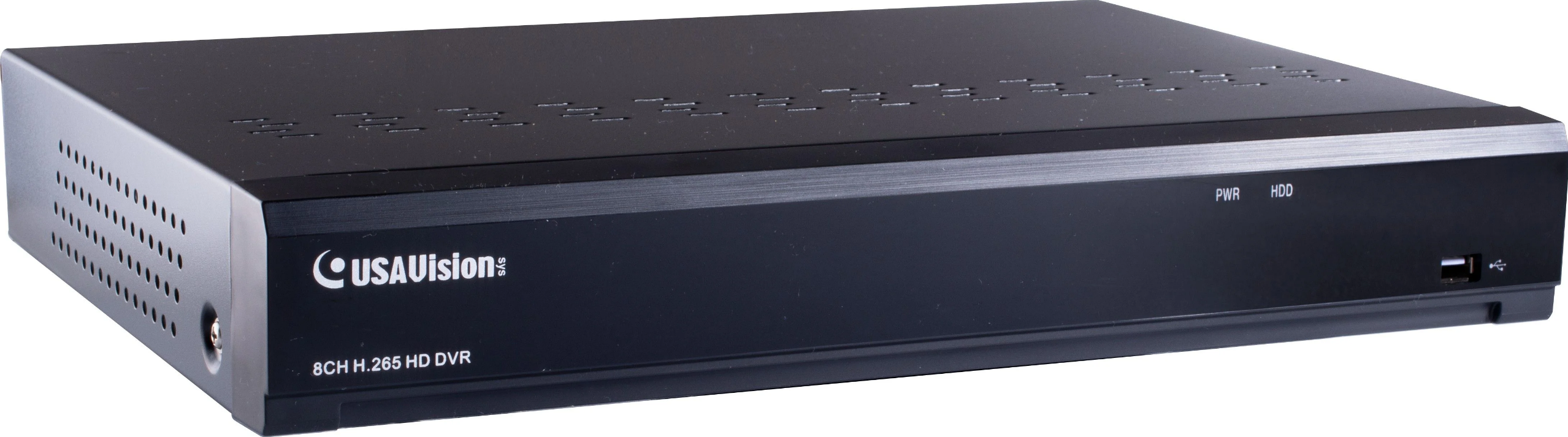

The UA‑XVR810 is an 8‑channel hybrid HD DVR that supports both H.265 and H.264 compression, accommodating up to 8 analog camera inputs plus 4 additional IP camera inputs for a total system capacity of 12 channels. It delivers video recording and playback at resolutions up to 8 MP, making it suitable for mixed analog/IP surveillance installations.
Key Configuration
• Video input: 8-channel analog input supporting TVI, AHD, CVI, and CVBS cameras.
• IP support: Up to 4 additional IP camera channels (12 channels total).
• Storage: 1 × SATA HDD bay supporting up to 8 TB.
• Video output: 1 × HDMI (up to 4K) and 1 × VGA.
• Alarm I/O: 8 alarm inputs and 1 alarm output for event-based monitoring.
Key Features
Features H.265/H.264 compression, 8 MP recording, and simultaneous HDMI/VGA outputs. It supports P2P remote viewing via GV‑Eye, and Web Client access with Live View, stream switching, alarm control, and split‑screen display. Tampering alerts are triggered when camera interference is detected.
Technical Context
Designed for systems mixing legacy analog cameras with newer IP cameras. Its 4‑in‑1 analog input supports TVI, AHD, CVI, and CVBS signals, while ONVIF compliance ensures seamless integration with compatible network cameras. This flexibility makes it an ideal upgrade path for transitioning from analog to IP‑based surveillance.
Installation Notes
The recorder accommodates a single internal SATA hard drive of up to 8 TB for local storage, and features HDMI and VGA outputs for flexible display connectivity. Alarm input and output terminals are also provided for integration with external sensors or alarm devices, enhancing system responsiveness.
| System | |
| Operating System | Embedded Linux |
| Drive Bays | 1 (3.5” / 2.5” SATA HDD) |
| Video | |
| Video Standard | NTSC, PAL |
| Video Input | Analog Camera: 8 channels (up to 12 channels for analog cameras and IP cameras) IP Camera: 4 channels (up to 12 channels for IP cameras only) |
| Compression | H.265 / H.264 |
| Signal Type | TVI / AHD / CVI / CVBS *3 MP / 5 MP resolution is not supported by CVI signal. |
| Recording Resolution - Analog Camera Main Stream | 8 MP at 7 fps for each channel 5 MP at 12 fps for each channel 4 MP at 15 fps for each channel 1080P / 720P / D1 at 25 fps (PAL) / 30 fps (NTSC) for each channel |
| Recording Resolution - Analog Camera Sub Stream | PAL: 704 × 576 at 10 fps for each channel NTSC: 704 × 480 at 10 fps for each channel *The sub-stream frame rate is less than the preview frame rate. *H.264 performance is about 20% lower than H.265. |
| Recording Resolution - IP Camera | 50 Hz: Max. 25 fps for each channel 60 Hz: Max. 30 fps for each channel *Frame rate may vary depending on IP camera resolution settings. |
| Display Resolution - Analog Camera | 8 MP at 15 fps for each channel 5 MP at 20 fps for each channel 4 MP / 1080P / 720P / 960H at 30 fps for each channel |
| Display Resolution - IP Camera | 8 MP / 4 MP / 1080P / 720P *Single channel preview up to 8 MP at 30 fps. *Multi-channel preview available only in sub-stream. |
| Playback Resolution | 8 MP at 60 fps 5 MP at 96 fps 4 MP at 120 fps 1080P at 240 fps *Maximum 4 playback channels at 8 MP and 8 playback channels for other resolutions. |
| Maximum Bandwidth | Input: 24 ~ 72 Mbps Output: 72 Mbps |
| Video Adjustment | Hue, Brightness, Contrast, Saturation, Sharpness |
| Dual Streams | Yes |
| Playback Functions | Fast Forward: 2x, 4x, 8x, 16x Slow Forward: 1/2x, 1/4x, 1/8x, 1/16x |
| Audio | |
| Audio Input | 8 RCA ports |
| Compression | G.711 |
| Audio Support | One-way |
| Management | |
| Event Management | Trigger Schedule, Sensor Input, Alarm Output, Motion Detection |
| Event Actions | Store Video (AVI format) Send e-mails with captured images Upload captured images to FTP Server Activate relay outputs to control external devices |
| Remote Monitoring Browsers | Internet Explorer 10 / 11 or later Safari V12.1 or later Firefox V52 or later Google Chrome V57 or later Microsoft Edge V79 or later |
| Languages - Local | Arabic, Bulgarian, Traditional Chinese, Danish, English, German, Spanish, French, Japanese, Italian, Portuguese, Russian, Turkish, Finnish, Greek, Hebrew, Hindi, Korean, Persian, Polish, Romanian, Thai |
| Languages - Web | English, German, Spanish, French, Japanese, Italian, Portuguese, Russian, Turkish |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Network | |
| Protocols | DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP, IPv4, IPv6 |
| Security Features | No default ID and password HTTPS with SSL certificate stored within the video server IP address filtering |
| Interface | |
| Video Input | 8 BNC ports (1.5 Vp-p, 75 Ω) |
| CVBS Output | 1 BNC port (1.5 Vp-p, 75 Ω) |
| Audio | 8 in / 1 out, RCA |
| Alarm Input / Output | 8 in / 1 out |
| RS485 | RS485 +/- |
| Ethernet | RJ45, 100/1000 Mbps |
| USB | 2 ports (USB 2.0 front / USB 3.0 rear) |
| Monitor Outputs | BNC: 1 port (704 × 576) VGA: 1024 × 768, 1280 × 720, 1280 × 1024, 1440 × 900, 1920 × 1080 HDMI: 1024 × 768, 1280 × 720, 1280 × 1024, 1440 × 900, 1920 × 1080, 2560 × 1440 (2K), 3840 × 2160 (4K) |
| LED Indicators | 2 LEDs: Power, HDD |
| Remote Monitoring | |
| Web Browser Access | Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download Remote Setting: Channel, Record, Alarm, Network, Device, System |
| Live View - PC Software | Max. connection subject to total output bandwidth *Up to 4-channel connection supported for one non-IE browser. |
| Live View - Mobile App | Max. connection subject to total output bandwidth |
| Playback - PC Software | Max. connection subject to total output bandwidth *Up to 4-channel connection supported for each web browser. |
| Playback - Mobile App | Max. connection subject to total output bandwidth |
| Applications | |
| Supported Software | GV-Control Center (V4.1.0) GV-Edge Recording Manager Windows Version (V2.2.0) GV-Recording Server (V2.1.0) GV-VMS (V17.4.5 / V18.3.1) *HD DVR license required for connecting UA-HD DVR on supported GV-VMS and GV-Recording Server versions. Only analog channels supported. |
| Mobile Phone Support | GV-Eye for iOS and Android (V2.9.0) |
| Mechanical | |
| Dimensions (L × W × H) | 300 × 219.7 × 52.5 mm (11.81” × 8.65” × 2.07”) |
| Weight | 1.0 kg (2.2 lb) |
| Rack Mount | No |
| Electrical | |
| Power Input | AC 100 ~ 240 V, 50 ~ 60 Hz |
| Power Output | DC 12 V, 2 A, Max. 24 W |
| Power Consumption | 11 W (excluding HDD) |
| Environmental | |
| Operating Temperature | 0°C ~ +40°C (32°F ~ 104°F) |
| Humidity | 0 ~ 90% RH |
| Certifications | |
| Regulatory Compliance | FCC and RoHS compliant |
