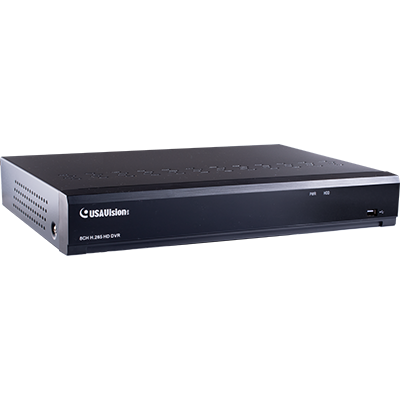

GeoVision - 84-XVL0810-UA1U - 8CH 5MP Lite/2MP HD DVR H.265
Part number:
Price:
- • H.265 / H.264 video format
- • 8-ch analog camera and 4-ch IP camera inputs
- • 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840 x 2160) resolution
- • HDMI and VGA simultaneous output
- • 1 SATA HDD, up to 8 TB
- • P2P function for the GV-Eye app
- • ONVIF cameras support
| System | |
|---|---|
| Operating System | Embedded Linux |
| No. of Drive Bay | 1 (3.5" / 2.5" SATA HDD) |
| Video | |
| Video Standard | NTSC, PAL |
| Video Input | Analog camera: 8 channels (up to 12 channels for analog cameras and IP cameras) |
| IP Camera: 4 channels (up to 12 channels for IP cameras only) | |
| Compression | H.265 / H.264 |
| Signal Type | TVI / AHD / CVI / CVBS *3 MP / 5 MP resolution is not supported by CVI signal |
| Recording Resolution Analog Camera | Main Stream 5 MP Lite at 15 fps for each channel 4 MP Lite at 20 fps for each channel 1080P at 18 fps for each channel 720P / D1 at 25 fps (PAL) / 30 fps (NTSC) for each channel |
| Sub Stream PAL: 704 x 576 at 10 fps for each channel NTSC: 704 x 480 at 10 fps for each channel | |
| *The sub-stream frame rate is less than the preview frame rate. | |
| *H.264 performance is about 20% lower than H.265. | |
| Recording Resolution IP Camera | 50 Hz: Max. 25 fps for each channel 60 Hz: Max. 30 fps for each channel *The frame rate may vary depending on the resolution set on the IP camera. |
| Display Resolution | Analog Camera 5 MP Lite at 20 fps for each channel 4 MP Lite at 30 fps for each channel 1080P / 720P / 960H at 30 fps for each channel |
| IP Camera 5 MP / 4 MP/ 1080P / 720P *Single channel preview up to 2 MP 30 fps. *Multi-channel preview is only available in sub-stream. | |
| Playback Resolution | 5 MP Lite at 90 fps 4 MP Lite at 160 fps 1080P at 144 fps 720 P at 240 fps *A maximum of 6 playback channels is applicable for 5 MP and 8 playback channels for other resolutions. |
| Max. Bandwidth | Input: 16 ~ 48 Mbps *Total decoding performance up to 1080P at 120 fps. |
| Output: 64 Mbps | |
| Video Adjustment | Hue, Brightness, Contrast, Saturation, Sharpness |
| Dual Streams | Yes |
| Playback Function | Fast Forward: 2x, 4x, 8x, 16x |
| Slow Forward: 1/2x, 1/4x, 1/8x, 1/16x | |
| Audio | |
| Audio Input | 4 RCA ports |
| Compression | G.711 |
| Audio Support | One-way |
| Management | |
| Event Management | Trigger: Schedule, Sensor Input, Alarm Output, Motion Detection |
| Action: -Store Video (AVI format) -Send e-mails with captured images -Upload captured images to FTP Server -Activate relay outputs to control external devices | |
| Remote Monitoring | IE10/11 or later Safari V12.1 or later Firefox V52 or later Google Chrome V57 or later Edge V79 or later |
| Language | Local Arabic, Bulgarian, Czech, Danish, English, Finnish, French, German, Greek, Hebrew, Hindi, Italian, Japanese, Korean, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Thai, Traditional Chinese, Turkish |
| Web Czech, English, French, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese, Turkish | |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Network | |
| Protocol | DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP, IPv4, IPv6 |
| Security Feature | -No default ID and password |
| -HTTPS with an SSL certificate stored within the video server | |
| -IP address filtering | |

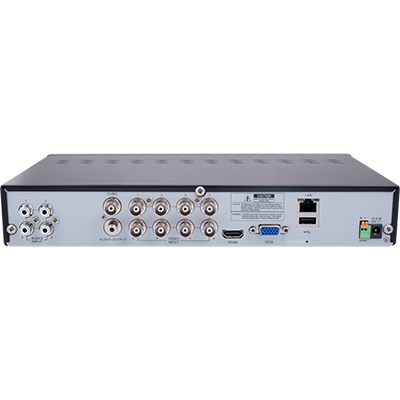

| Interface | |
| Video Input | 8 BNC ports (1.5 Vp-p, 75 Ω) |
| CVBS | 1 BNC (1.5 Vp-p, 75 Ω) |
| Audio | 4 in / 1 out, RCA |
| Alarm Input / Output | No |
| RS485 | RS485 +/- |
| Ethernet | RJ45, 10/100 Mbps |
| USB | 2 ports (USB 2.0 front / rear) |
| Monitors | BNC: 1 port (704 x 576) |
| VGA: 1 port (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080) | |
| HDMI: 1 port (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440 (2K), 3840 x 2160 (4K)) LED: 2 LEDs: Power, HDD | |
| General | |
| Operating Temp. | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 0 ~ 90% RH |
| Dimensions (L x W x H) | 300 x 219.7 x 52.5 mm (11.81" x 8.65" x 2.07") |
| Weight | 1.0 kg (2.2lb) |
| Rack Mount | No |
| Power | |
| Input | AC 100 ~ 240V, 50 ~ 60 Hz |
| Output | DC 12V, 2A, Max. 24W |
| Power Consumption | 6.4 W (excluding HDD) |
| Certification | CE, FCC, LVD, RoHS compliant |
| Remote Monitoring | |
| Access from Web Browser | Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm |
| Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download | |
| Remote Setting: Channel (Live, Image control, Video Cover, Motion, Intelligent), Record (Encode, Capture), Alarm (Motion, I/O, Intelligent, PTZ Linkage), Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System | |
| Live View | PC-Based Software: Max. connection subject to the total output bandwidth of UA-XVL810 *A total of up to 4-channel connection is supported for one non-IE browser. Mobile App: Max. connection subject to the total output bandwidth of UA-XVL810 |
| Playback | PC-Based Software: Max. connection subject to the total output bandwidth of UA-XVL810 *A total of up to 4-channel connection is supported for each Web browser. Mobile App: Max. connection subject to the total output bandwidth of UA-XVL810 |
| Applications | |
| Software Supported | GV-Control Center (V4.1.0), GV-Edge Recording Manager Windows Version (V2.2.0), GV-Recording Server (V2.1.0), GV-VMS (V17.4.5 / V18.3.1), GV-Vital Sign Monitor (V18.4.0 or later), GV-ASManager (V6.0.2 or later) *HD DVR license is required for connecting UA-HD DVR on GV-VMS V17.4.5 or later / GV-VMS V18.3.1 or later / GV-Recording Server V2.1.0 or later (only analog channels supported) |
| Smart Device Access | GV-Eye for iOS and Android (V2.9.0) |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Version History
0.2mb
File
Quick Start Guide
1.6mb
File
Comparison Table
0.2mb
File
Compatibility Table UA-HD DVR HDD
0.1mb
File
Incompatible GV-IP Cameras for Standalone NVR
0.2mb
The UA-XVL810 is a powerful H.264/H.265 HD DVR with a compact design. It supports eight-channel analogue camera and four-channel IP camera inputs, totalling a connection of up to 12 channels. It converts analogue signals into high-resolution digital images of up to 5 megapixels. With its 4-in-1 video output, the UA-XVL810 supports TVI/AHD/CVI/CVBS connections. With the Web Client, users can access several functions via a web browser, including Live View, Change Stream, Manual Alarm and Divide Screen. It can also trigger tampering alarms when cameras are tampered with, which can prevent criminal activities.
