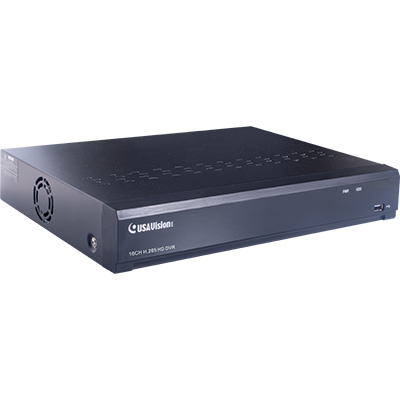

GeoVision - 84-XVL1611-UA1U - 16CH H.265 5MP Lite/2MP HD DVR, US
• AI deep learning: AI Perimeter Protection & Classification (Human & Vehicle)
• Realtime AI Face Recognition (search, tracking, attendance and repeated recognition request)
• Support H.265 / H.264 video formats
• 16-ch TVI / AHD / CVI / CVBS video input
• 4-ch IP camera input
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840 x 2160) resolution
• HDMI and VGA simultaneous output
• 1 SATA HDD up to 10 TB
• 4 alarms inputs and 1 alarm output
• Support P2P function for GV-Eye app
• Support ONVIF cameras
| System | |
|---|---|
| Operating system | Embedded Linux |
| No. of Drive Bay | 1 (3.5" / 2.5" SATA HDD) |
| Video | |
| Video Standard | NTSC, PAL |
| Video Input | Analog camera: 16 channels (up to 20 channels for analog cameras and IP cameras) |
| IP Camera: 4 channels (up to 20 channels for IP cameras only) | |
| Compression | H.265 / H.264 |
| Signal Type | TVI / AHD / CVI / CVBS *3 MP / 5 MP resolution is not supported by CVI signal |
| Recording Resolution Analog Camera | Main Stream 5 MP-Lite at 12 fps for each channel 4 MP-Lite at 16 fps for each channel 1080P at 15 fps for each channel 720P / D1 at 25 fps (PAL) / 30 fps (NTSC) for each channel |
| Sub Stream PAL: 10 fps at 704 x 576 for each channel NTSC: 10 fps at 704 x 480 for each channel | |
| *The sub-stream frame rate is less than the preview frame rate. | |
| *H.264 performance is about 20% lower than H.265. | |
| Recording Resolution IP Camera | 50 Hz: Max. 25 fps for each channel 60 Hz: Max. 30 fps for each channel *The frame rate may vary depending on the resolution set on the IP camera. |
| Display Resolution | Analog Camera 5 MP-Lite at 20 fps for each channel 4 MP-Lite at 30 fps for each channel 1080P / 720P / 960H at 30 fps for each channel |
| IP Camera 5 MP / 4 MP / 1080P / 720P *Single channel preview up to 2 MP 30 fps. *Multi-channel preview is only available in sub-stream | |
| Playback Resolution | 5 MP Lite at 192 fps 4 MP-Lite at 240 fps 1080P at 240 fps 720P at 480 fps *A maximum of 16 playback channels is applicable to each resolution. |
| Max. Bandwidth | Input: 16 ~ 80 Mbps *Decoding performance totals 240 fps at 1080P. |
| Output: 96 Mbps | |
| Video Adjustment | Hue, Brightness, Contrast, Saturation, Sharpness |
| Dual Streams | Yes |
| Playback Function | Fast Forward: 2x, 4x, 8x, 16x |
| Slow Forward: 1/2x, 1/4x, 1/8x, 1/16x | |
| Audio | |
| Audio Input | 4 RCA ports |
| Compression | G.711A, G.711U |
| Audio Support | One-way |
| Management | |
| Event Management | Trigger: Schedule, Sensor Input, Alarm Output, Motion Detection |
| Action: -Store Video (AVI format) -Send e-mails with captured images -Upload captured images to FTP Server -Activate relay outputs to control external devices | |
| Remote Monitoring | IE 10 / 11 Safari V12.1 or later Firefox V52 or later Google Chrome V57 or later Edge V79 or later |
| Language | Local Arabic / Bulgarian / Traditional Chinese / Danish / English / German / Spanish / French / Japanese / Italian / Portuguese / Russian / Turkish / Finnish / Greek / Hebrew / Hindi / Korean / Persian / Polish / Romanian / Thai |
| Web English / German / Spanish / French / Japanese / Italian / Portuguese / Russian / Turkish | |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Network | |
| Protocol | 802.1x, DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP, SNMP, IPv4, IPv6 |
| Security Feature | -No default ID and password |
| -HTTPS with an SSL certificate stored within the video server | |
| -IP address filtering | |

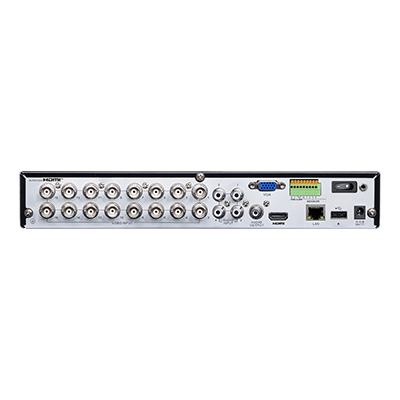

| Interface | |
| Video Input | 16 BNC ports (1.5 Vp-p, 75 Ω) |
| Audio | 4 in / 1 out, RCA |
| Alarm Input / Output | 4 in / 1 out |
| RS485 | RS-485 +/- |
| Ethernet | RJ-45, 100/1000 Mbps |
| USB | 2 ports (USB 2.0 front / USB 3.0 rear) |
| Monitors | VGA: 1 port (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080) |
| HDMI: 1 port (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440 (2K), 3840 x 2160 (4K)) | |
| LED: 2 LEDs: Power, HDD | |
| General | |
| Operating Temp. | -10°C ~ 50°C (14°F ~ 122°F) |
| Humidity | 0 ~ 90% RH |
| Dimensions (L x W x H) | 300 x 219.9 x 51.8 mm (11.81" x 8.66" x 2.04") |
| Weight | 1.2 kg (2.64 lb) |
| Rack Mount | No |
| Power | |
| Input | AC 100 ~ 240V, 50 ~ 60 Hz |
| Output | DC 12 V, 2.0 A, Max. 9 W |
| Power Consumption | 7 W (excluding HDD) |
| Certification | CE, FCC, LVD, RoHS compliant |
| AI Integrated Function | |
| Video Analytics | Pedestrian Detection & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, Heat Map, Crowd Density Monitoring, Queue Length Detection, Face Detection, Rare Sound Detection, Object Detection, Sound Detection **When connected to analog cameras, FD (Face Detection) and PD&VD (Human & Vehicles Detection) can be enabled on a maximum of 8 channels at a time. |
| Face Recognition | Face Search, Face Tracking on E-Map, Repeat Visitor Request, Face Attendance Request |
| Remote Monitoring | |
| Access from Web Browser | Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm |
| Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download Remote Setting: Channel (Live, Image control, Video Cover, Motion, Intelligent), Record (Encode, Capture), Alarm (Motion, I/O, Intelligent, PTZ Linkage), Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System | |
| Live View | PC-Based Software: Max. connection subject to the total output bandwidth of UA-XVL1611 *A total of up to 4-channel connection is supported for one non-IE browser. Mobile APP: Max. connection subject to the total output bandwidth of UA-XVL1611 |
| Playback | PC-Based Software: Max. connection subject to the total output bandwidth of UA-XVL1611 *A total of up to 4-channel connection is supported for each Web browser. Mobile APP: Max. connection subject to the total output bandwidth of UA-XVL1611 |
| Applications | |
| Software Supported | GV-VMS (V17.4.8 / V18.3.4 or later), GV-Control Center (V4.2.1 or later), GV-Edge Recording Manager Windows Version (V2.2.8 or later), GV-Recording Server (V2.1.1 or later), GV-Vital Sign Monitor (V18.4.0 or later), GV-ASManager (V6.0.2 or later) *HD DVR license is required for connecting UA-HD DVR on GV-VMS V17.4.8 / GV-VMS V18.3.4 or later / GV-Recording Server V2.1.1 or later (only analog channels supported) |
| Mobile Phone Support | GV-Eye for iOS and Android (V3.1.1 or later) |
The GeoVision 84-XVL1611-UA1U is a versatile 16-channel hybrid DVR supporting up to 16 analog cameras (TVI/AHD/CVI/CVBS) plus 4 IP cameras, or up to 20 IP cameras exclusively, with H.265/H.264 compression for optimal bandwidth efficiency. It records analog cameras at 5MP-Lite (12fps), 4MP-Lite (16fps), or 1080P (15fps) per channel, with 240fps total playback at 1080P. The unit features a single 3.5"/2.5" SATA HDD bay, 4 audio inputs, 4 alarm inputs/1 output, RS-485, Gigabit Ethernet, and 4K HDMI output. With 16-80 Mbps input bandwidth and 96 Mbps output, it delivers robust performance for hybrid surveillance deployments. Powered by integrated AI analytics, it supports pedestrian/vehicle detection, perimeter intrusion, line crossing, cross counting, heat mapping, crowd density, queue length, face detection, and rare sound detection - with up to 8 channels simultaneously for face detection and human/vehicle detection when using analog cameras. The DVR includes comprehensive security features with no default password, HTTPS, and IP filtering. Fully compatible with GV-VMS, GV-Control Center, and GV-Eye mobile app, it provides an economical hybrid solution for transitioning analog systems to IP-based AI surveillance.
