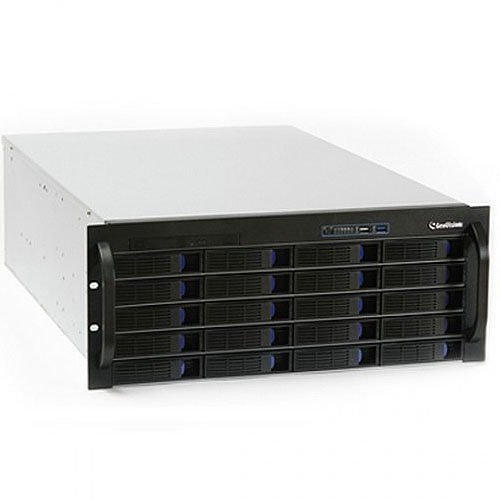

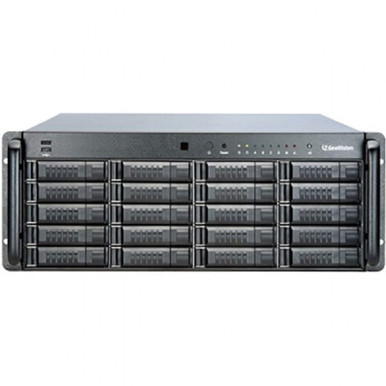

GeoVision - 850-RSI720-128 - 128-Channel Hot Swap System, 20-Bay Recording Server, No HDD Included
Product Overview
The GV-Hot Swap Recording Server is a high-capacity video streaming solution for large-scale deployments, available in 3U or 4U rackmount configurations. Powered by an Intel i7 processor with 16GB DDR4 RAM, it supports up to 20 hot-swappable bays for 60TB+ of storage. The pre-installed GV-Recording Server software manages up to 128 IP channels and can distribute up to 300 channels simultaneously to various GeoVision client platforms.
Key Configuration
- • CPU: Intel i7 Kaby Lake; RAM: 16GB DDR4; OS: 64-bit Windows 7 Embedded on 128GB SSD
- • Hot swap bays: 8 or 20 (3U/4U rackmount); RAID options: 0, 1, 5, 6 (optional)
- • Max IP video device connections: up to 128 channels; max remote client connections: 300
- • Network: 6 × RJ-45 10/100/1000 Mbps Ethernet ports; video outputs: DVI, HDMI, Mini DisplayPort
- • Power: 520W (8-bay) or 1000W (20-bay); dimensions: 19" × 24" × 7" (8-bay) or 19" × 26" × 7" (20-bay)
Key Features
This high-availability server features hot-swappable SATA racks for HDD replacement without downtime and includes dual hardware/software watchdogs with auto-restart to ensure continuous operation. Its built-in GV-Recording Server optimizes CPU and bandwidth performance while managing up to 128 channels. The system includes three NICs to balance video input and client transmission, with a recovery DVD for automatic system rebuilds and support for various optical backup media.
Technical Context
Equipped with eight USB ports (four USB 3.0, four USB 2.0) for versatile connectivity, this 4U rackmount server operates reliably between 32°F and 113°F. The package includes the server, power cord, recovery and software DVDs, and essential setup guides to ensure a complete out-of-the-box installation.
Installation Notes
Available in 3U or 4U rackmount configurations, this system supports 60+ TB of storage across up to 20 hot-swap bays with optional RAID (0, 1, 5, 6). It features high-output power supplies (up to 1000W) and dual watchdog monitoring for maximum reliability. For simplified maintenance, the server includes an automatic system rebuild function via recovery DVD.
| System | |
|---|---|
| CPU | Intel i7 Kaby Lake |
| Memory (RAM) | 16GB DDR4 |
| Hot Swap Bay | 8 / 20 |
| Number of IP Video Device Connections | Up to 128 |
| Number of Remote Client Connections | 300 |
| OS | 64-bit Microsoft Windows 7 Embedded |
| System Drive | 128GB SSD |
| Recovery DVD | Automatic System Rebuild from DVD |
| Backup Type | DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW |
| Connector | |
| Ethernet | 6 x RJ-45 10/100/1000 Mbps |
| VGA Output | DVI, HDMI, Mini Display Port |
| USB 2.0 | 4 Rear |
| USB 3.0 | 2 Front, 2 Rear |
| Environmental | |
| Operating Temperature | 0 to 45 °C (32 to 133 °F) |
| Humidity | 0 to 80% RH (non condensing) |
| Dimensions (W x D x H) | |
| 20 Bays | 19 x 26 x 7 inch |
| 8 Bays | 19 x 24 x 7 inch |
| RAID & Power | |
| Raid (optional) | 0, 1, 5, 6 |
| Power Restoration | Automatic restart after power outage |
| Power Supply | 8 Bays: 520W 20 Bays: 1000W |
| Monitoring | Two independent Watchdogs (Hardware Watchdog + Software Watchdog) |
