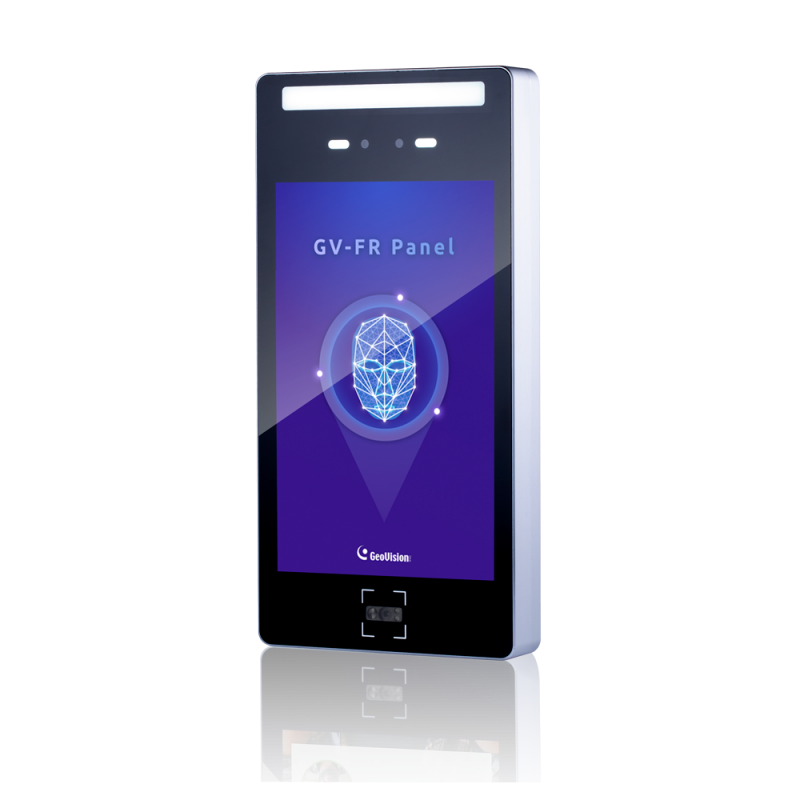

GV-FR Panel is a face-recognition-based access reader, with an 8" LCD touchscreen that dispalys 800 x 1280 HD images. When connected to GeoVision access control systems, GV-FR Panel can grant or deny access based on a variety of credentials including face recognition, access cards and card + face double authentication. Additionally, GV-FR Panel can read QR codes from GV-ASManager's Visitor Management System (GV-VMWeb) as well as the EU Digital COVID Certificate.
GV-FR Panel, with cutting-edge face recognition ability, can be integrated into any third-party Wiegand access control system. It combines AI video analytics with access control to provide a new level of convenience and security.
Features:
- Liveness detection (face spoofing detection)
- Mask detection
- Masked face recognition
- Built-in LED light for nighttime and low-light face recognition
- Three access modes: Face Only mode, Card or Face mode, Card + Face mode
- Scanning QR codes of visitor access issued by GV-ASManager’s visitor management system
- Scanning QR codes of the EU Digital COVID Certificate
- Integration with third-party Wiegand controllers
- Mobile app supported for push notifications
- 16 languages supported
- CE, FCC, LVD, RoHS compliant
- 8" IPS touch screen with 800 x 1280 HD display
- Face recognition distance of up to 1 m (3 ft)
- Built-in RGB & IR cameras
- 10,000 face image capacity
- 10,000 access card capacity
- Built-in 13.56 MHz reader for ISO 14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic)
- Live streaming on GV-VMS (Coming soon)
Note:
- All specifications are subject to change without notice.
|
Binocular Cameras |
GV‐FR Panel‐5 |
GV‐FR Panel‐10 |
|||
|
RGB Camera |
IR Camera |
RGB Camera |
IR Camera |
||
|
Image Sensor |
1/2.7” CMOS |
||||
|
Minimum Illumination |
0.1 lux at F1.8 |
||||
|
White Balance |
Automatic |
||||
|
S/N Ratio |
≥ 45 dB |
||||
|
Frame Rate |
30 FPS |
||||
|
Dynamic Range |
≥ 100 dB |
||||
|
Touchscreen Panel |
|||||
|
Display |
8” HD fully fitted IPS LCD |
||||
|
Resolution |
800 x 1280 |
||||
|
Capacity |
|||||
|
Face Recognition Distance |
1 m (3 ft) |
||||
|
Recognition Angle |
Vertical (FOV) |
51° |
|||
|
Horizontal (FOV) |
33° |
||||
|
Card Supported |
‐ 13.56 MHz for ISO 14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic) ‐ QR code reading |
||||
|
Capacity |
Face Image |
10,000 |
|||
|
Card |
10,000 |
||||
|
Event Log |
50,000 100,000 |
||||
|
Operation Mode |
Face Only mode, Card or Face mode, Card + Face mode |
||||
|
Firmware Upgrade |
via GV‐IP Device Utility |
||||
|
Installation Management |
Web‐based configuration |
||||
|
Face Recognition |
|||||
|
Recognized Face Angle |
Tilt (Up / Down) |
‐15° ~ 10° |
|||
|
Swing (Left / Right) |
‐25° ~ 20° |
||||
|
Mechanical |
|||||
|
Audio |
Built‐in speaker and microphone |
||||
|
Motion Detection Radar |
Sensing distance up to 4 m (13 ft) |
||||
|
Internal Storage |
16 GB eMMC |
||||
|
Connectors |
Power |
DC Jack |
|||
|
Ethernet |
10 / 100 M, RJ‐45 Connector |
||||
|
Relay Output |
30V DC 1A |
||||
|
Wiegand |
Wiegand 26 /34 |
||||
|
USB |
2.0 |
||||
|
General |
|||||
|
Language |
Bulgarian, Czech, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Slovak, Spanish, Simplified Chinese, Thai, Traditional Chinese, Ukrainian |
||||
|
Operating Temperature |
‐10 ~ 60 °C (14 ~ 140 °F) |
||||
|
Humidity |
10% ~ 90% (non‐condensing) |
||||
|
Power |
DC 12 V, 3 A |
||||
|
Max. Power Consumption |
18 W |
||||
|
Dimensions (H x W x D) |
256 x 127.6 x 27 mm (10.08 x 5.02 x 1.06 in) |
||||
|
Weight |
955 g (2.11 lb) |
||||
|
Regulatory |
CE, FCC, LVD, RoHS |
||||
