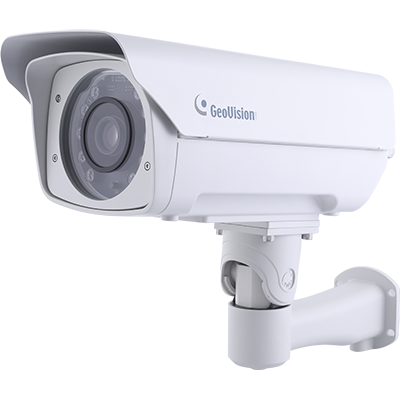

GV-LPR2800-DL is capable of recognizing license plate numbers with its built-in deep learning LPR processor. GV-LPR2800-DL can compare captured license plates either with its on-the-edge standalone database, or the database stored at the GV-ASManager access control system. When there is a match, GV-LPR2800-DL can grant access for the vehicle by opening a gate or barrier.
GV-LPR2800-DL is a 2 MP color network camera designed to recognize non-reflective and reflective license plates on vehicles traveling at up to 100 km/h (62 mph). Thanks to its multiple high-power LEDs and intelligent IR, the camera can automatically adjust its shutter speed to the scene and capture clear license plate images in low-light settings. It adheres to IP68 and IK10 standards and can withstand temperatures ranging from -40°C (-40°F) to 50°C (122°F).
Features:
- Built-in deep learning LPR processor for license plate recognition
- Double-lane recognition
- Min. illumination at 0.04 lux
- Triple streams from H.265, H.264 and MJPEG
- Up to 60 fps at 1920 × 1080
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Day and Night function (with removable IR-cut filter)
- Wide Dynamic Range Pro (WDR Pro)
- DC 12 V / PoE (IEEE 802.3bt)
- Ingress protection (IP68)
- Vandal resistance (IK10 for metal casing)
- Standalone database
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Digital I/O (2 in / 2 out)
- Built-in heater and fan
- Recognize vehicles with speeds up to 100 km/h (62 mph)
- Two-way audio
- Recognized plate numbers export
- Defog
- Motion detection
- Text Overlay
- IP address filtering
- Support for iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- CE, FCC, LVD, RoHS compliant
- TAICS IoT Cyber Security Level 2 certified (suitable for commercial use)
Note:
- Specifications are subject to change without notice.
| Camera | |||
| Image Sensor | 1/2.8" progressive scan super low lux CMOS | ||
| Minimum Illumination | Color | 0.05 lux | |
| B/W | 0.04 lux | ||
| Picture Elements | 1920 (H) x 1080 (V) | ||
| Shutter Speed | Automatic: 1/500 ~ 1/16,000 sec Manual: 1/120 ~ 1/16,000 sec | ||
| S/N Ratio | 56 dB | ||
| WDR Pro | Yes | ||
| Dynamic Range | 130 dB | ||
| Max. Speed | 100 km/h (62 mph) | ||
| Lens | |||
| Megapixel | 2 MP | ||
| Day/Night | Yes (with removable IR-cut filter) | ||
| Lens Type | Varifocal | ||
| Focal Length | 5 ~ 50 mm | ||
| Horizontal FOV | 50.9° ~ 7.6° | ||
| Maximum Aperture | F/1.6 | ||
| Mount | CS Mount | ||
| Image Format | 1/2.7" | ||
| Operation | Focus | Manual (w/lock) | |
| Zoom | Manual (w/lock) | ||
| Iris | DC-Iris | ||
| IR LED Quantity | 10 high power IR LEDs | ||
| IR Distance | 30 m (100 ft) | ||
| Operation | |||
| Video Compression | H.265, H.264, MJPEG | ||
| Video Stream | Triple streams from H.265, H.264 and MJPEG | ||
| Frame Rate | 60/50 fps at 1920 x 1080 (60/50 Hz) * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes) | ||
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, Defog, Denoise, Metering | ||
| Audio Compression | G.711 | ||
| Audio Support | Two-way audio (external microphone and speaker required) | ||
| Digital I/O | 2 In / 2 Out | ||
| Video Resolution | |||
| Main Stream | 4:3 | 1280 x 960 | |
| 16:9 | 1920 x 1080 (Default), 1280 x 720 | ||
| Sub Stream | 4:3 | 1024 x 768, 640 x 480, 320 x 240 | |
| 16:9 | 1280 x 720, 640 x 360 (Default), 448 x 256 | ||
| Third Stream | 4:3 | 640 x 480, 320 x 240 | |
| 16:9 | 640 x 360, 448 x 256 | ||
| Network | |||
| Interface | 10/100/1000 Base-T Ethernet, RJ-45 connector | ||
| Protocol | DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA | ||
| Security Feature | ‐ No default ID and Password ‐ 802.1x authentication ‐ HTTPS with SSL certificate stored within the camera ‐ 256‐bit AES encryption (requires working with GV‐VMS V18.1 or later) | ||
| Mechanical | ||
| Temperature Detector | Yes | |
| Camera Adjustment | Pan | 0° ~ 330° |
| Tilt | 0° ~ 90° | |
| Connectors | Power | 2‐pin terminal block |
| Ethernet | Ethernet (10/100/1000 Base‐T), RJ‐45 cable | |
| Audio | 1 In (microphone jack, 3.5 mm / 0.14”) 1 Out (phone jack, 3.5 mm / 0.14”) | |
| Digital I/O | 2 In / 2 Out | |
| RS-485 | RS-485+ / RS-485- (for recognition data output) | |
| Local Storage | Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) * UHS‐II card types not supported. | |
| LED Indicator | N/A | |
| LPR | ||
| Min Height of License Plates | 40 pixels | |
| Region of License Plate | Czech, Europe, France, Germany, Hungary, Italy, Israel, Lithuania, Myanmar, Netherlands, Romania, Slovakia, Taiwan, UK, Ukraine, US (California, Georgia), Vietnam | |
| General | ||
| Operating Temperature | -40 °C ~ 50 °C (-40 °F ~ 122 °F) | |
| Humidity | 10% ~ 90% (non-condensing) | |
| Power Source | DC 12 V, 5A / PoE (IEEE 802.3bt) | |
| Max. Power Consumption | 45 W | |
| Dimensions | 360 x 157 x 137.5 mm (14.17" x 6.18" x 5.41") | |
| Weight | 4.34 kg (9.57 lb) | |
| Cable Length | 1 m (3.28 ft) | |
| Ingress Protection | IP68 | |
| Vandal Resistance | IK10 for metal casing | |
| Heater On | -40°C ~ 5°C (-40°F ~ 41°F) | |
| Fan | Constantly on | |
| Regulatory | CE, FCC, RCM, RoHS compliant | |
| Power over Ethernet | ||
| PoE Standard | PoE (IEEE 802.3bt / PD) | |
| PoE Power Supply Type | End-span and Mid-span | |
| PoE Power Output | Per Port 54 V DC, 1.2 A, Max. 60 W | |
| Web Interface | ||
| Installation & Management | Web-based configuration | |
| Firmware Upgrade | Firmware upgrade through Web Browser or Utility | |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ | |
| Language | Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai /Traditional Chinese / Turkish | |
| Applications | ||
| LPR Management | GV-ASManager V5.3.0 or later | |
| Software Supported | GV-DVR / NVR (V8.8.0), GV-VMS (V17.4.0 / V18.2.0), GV-Control Center (V3.8.0), GV-Center V2 / Vital Sign Monitor (V18.2.0), GV-Edge Recording Manager for Windows (V1.4.0), GV-Recording Server / Video Gateway (V2.0.0), GV-Redundant / Failover Server (V1.1.0.0) | |
| Smart Device Access | GV-Eye for Android and iOS | |
| Live Viewing | Browser (IE, Chrome, Firefox, Safari), Mobile app | |
