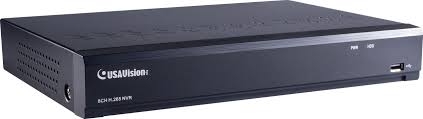

GeoVision - 88-NRL08R500-2TB - 8-Channel 8MP NVR with 2TB HDD
• H.265 / H.264 video format
• Up to 8-ch IP camera input
• 1-ch HDMI, 1-ch VGA; HDMI at up to 4K (3840 x 2160)
• HDMI and VGA simultaneous outputs
• Up to 8 MP resolution recording
• 1 SATA HDD up to 8 TB
• One-way audio
• P2P function for GV-Eye app
• ONVIF cameras supported
| System | |
|---|---|
| Operating system | Embedded Linux |
| No. of Drive Bay | 1 (3.5" / 2.5" SATA HDD) |
| Video and Audio | |
| Compression | Audio: G.711 Video: H.264 / H.265 |
| Resolution | 8 MP, 5 MP, 3 MP, 2 MP (1080P), 1.3 MP (960P), 1 MP (720P) |
| Decoding Frame Rate | Main 8 MP: 30 fps in total (1 CH max.) 5 MP: 49 fps in total (1 CH max.) 4 MP: 60 fps in total (1 CH max.) 2 MP: 120 fps in total (4 CH max.) |
| Sub 720P: 30 fps in total (8 CH max.) | |
| Playback | Max. 4-ch playback |
| Operation | |
| Recording Bandwidth | Input: 76 Mbps |
| Output: 32 Mbps | |
| Playback Function | Fast forward/backward (2x, 4x, 8x, 16x) Slow forward (1/2x, 1/4x, 1/8x, 1/16x) |
| Event Management | |
| Trigger | Schedule, Sensor Input, Motion Detection |
| Action | -Store Video (AVI format) |
| -Send e-mails with captured images | |
| -Upload captured images to FTP Server -Activate relay outputs to control external devices | |
| Web Monitoring | IE 10 / 11 Safari V12.1 or above Firefox V52 or above Google Chrome V57 or above Edge V79 or above |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Interface | |
| Monitor | VGA: 1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080) |
| HDMI: 1 (1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160) | |
| Connector | Ethernet: 1 port for WAN, RJ45 10/100 Mbps |
| PoE: 8 ports for LAN, RJ45 10/100 Mbps, PoE+ (IEEE 802.3at, Max. 30W) | |
| USB: USB 2.0 x 1 (front), USB 2.0 x 1 (rear) | |
| Audio Out: 1 RCA | |
| Line In: N/A | |
| RS-485: N/A Alarm Input/Out: N/A LED Indicator: 2 LEDs: Power, HDD | |
| General | |
| Language | Local Arabic, Bulgarian, Traditional Chinese, Danish, English, German, Spanish, French, Japanese, Italian, Portuguese, Russian, Turkish, Finnish, Greek, Hebrew, Hindi, Korean, Persian, Polish, Romanian, Thai |
| Web English, German, Spanish, French, Japanese, Italian, Portuguese, Russian, Turkish | |
| Mechanical Design | |
| Dimensions (W x D x H) | 300 x 215.15 x 53.65 mm (11.81" × 8.47" × 2.11") |
| Net Weight | 1.08 kg (2.38 lb) |
| Rack Mount | N/A |
| Electrical | |
| Power Source | Input: AC 100 ~ 240V, 50 ~ 60 Hz Output: DC 48V, 1.5A, Max. 72W |
| PoE | Max. 59W |
| Power Consumption (excluding HDD and IP cameras) | 6W |
| Operating Temperature/Humidity | Temperature: 0°C ~ 40°C (32°F ~ 104°F) Humidity: Less than 90% RH |
| Regulatory | FCC, RoHS compliant |
| Deep Learning Function | |
| Video Analytics | Pedestrian Detection & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Cross Counting, Heat Map, Crowd Density Monitoring, Queue Length Detection, Face Detection, Rare Sound Detection *The AI functions are only applicable when AI-capable UA-IP cameras are connected to the SNVR. |
| Network | |
| Protocol | DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP |
| Remote Monitoring | |
| Access from Web Browser | Live View: Audio, PTZ Setting, Color Controls, Page View, Manual Alarm |
| Playback: Search Recordings, Stretch, Full Screen, Tag Playback, Picture Playback, Download | |
| Remote Setting: Channel (Live, Image control, Video Cover, Motion, Intelligent), Record (Encode, Capture), Alarm (Motion, I/O, Intelligent, PTZ Linkage), Network (IP, DDNS, FTP, Email), Device (HDD Disk /Cloud), System | |
| Live View | PC-Based Software: Max. 8-ch connection Mobile App: Max. 8-ch connection |
| Playback | PC-Based Software: Max. 8-ch connection Mobile App: Max. 2-ch connection |
| Applications | |
| Software Supported | GV-Control Center (V4.1.0), GV-Edge Recording Manager Windows Version (V2.2.0), GV-ASManager (coming soon) |
| Smart Device Access | GV-Eye for iOS and Android (V2.9.0) |
The GeoVision 88-NRL08R500-2TB is a compact 8-channel PoE NVR featuring embedded Linux and H.265/H.264 compression, complete with a pre-installed 2TB SATA HDD for immediate out-of-the-box recording capability. It includes 8 integrated PoE+ ports (IEEE 802.3at, up to 30W per port) for direct camera connectivity, delivering 76 Mbps input bandwidth and 32 Mbps output. The NVR supports 8MP (4K) recording at 30fps total with 4-channel simultaneous playback, and features 4K HDMI output for high-resolution monitoring. Powered by integrated AI analytics, it supports pedestrian/vehicle detection, perimeter intrusion, line crossing, stationary object detection, cross counting, heat mapping, crowd density, queue length, face detection, and rare sound detection when connected to AI-capable GeoVision IP cameras. The unit includes comprehensive event management with email/FTP alerts, dual USB ports, and web-based remote monitoring supporting up to 8-channel live view and playback. Fully compatible with GV-Control Center, GV-Edge Recording Manager, and GV-Eye mobile app, it provides a complete 8-channel 4K PoE surveillance solution with built-in 2TB storage for small to medium installations requiring reliable standalone recording.
