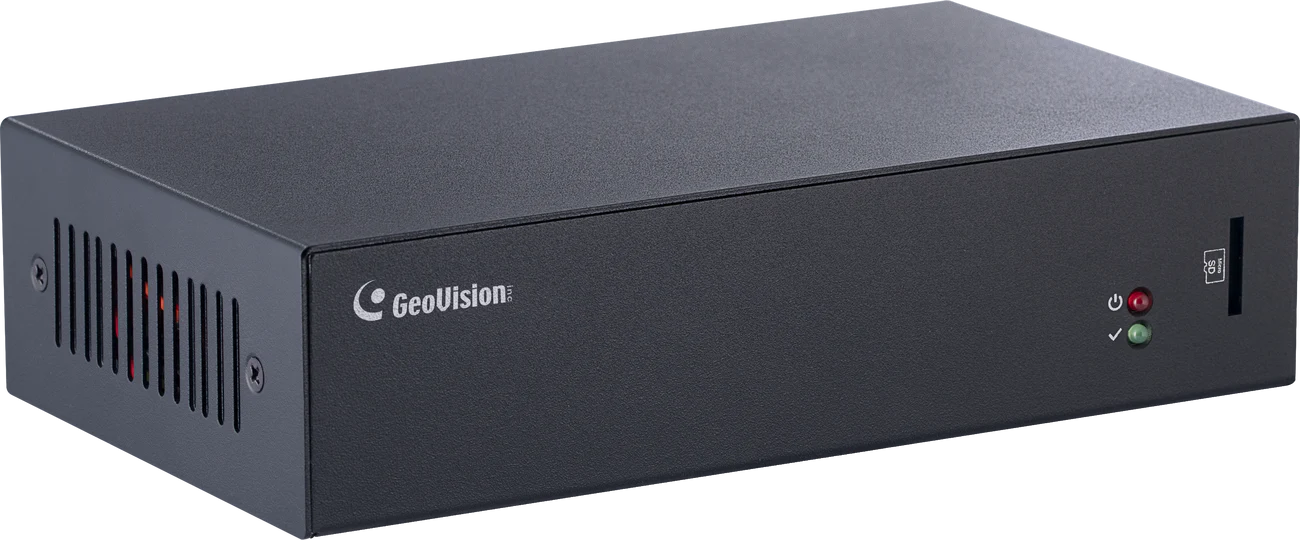

GeoVision - 89-CBPRO01-2TB - GV-Cloud Bridge Pro + SSD Mounting Plate & 2TB SSD
• Up to 8 ONVIF cameras
• Up to 8-ch People and Vehicle Detection (PVD)
• Connecting cameras to GV-Cloud VMS for cloud-based video monitoring
• Connecting access control devices to GV-Cloud Access Control for cloud-based access control
• Connecting cameras to GV-Center V2 or GV-Cloud Video Watch for central monitoring
• Connecting cameras to the GV-Recording Server / Video Gateway for large-scale video recording and transmitting
• Up to 16 IP devices supported with GV-VPN for a secure virtual private network
• Up to 16 virtual inputs supported for event alerts and recording triggers on input detection
• Up to 16 virtual outputs supported for remote control via GV-Center V2, GV-Cloud Video Watch, and GV-Eye
• Up to 8 GV-IP Speakers supported as audio outputs for camera channels
• Smartphone app support for live view and event alerts
• Live broadcasting on YouTube, Twitch, etc.
• Alarm output and audio alerts upon motion, AI event, or I/O input trigger
| Video | |
|---|---|
| Video Format | H.265, H.264 |
| Audio Format | G.711 |
| Network | |
| Interface | 10/100/1000 Ethernet |
| Protocol | DHCP, DNS, HTTP, ICMP, IPv4, NTP, RTMP, TCP/IP, UDP |
| Mechanical | |

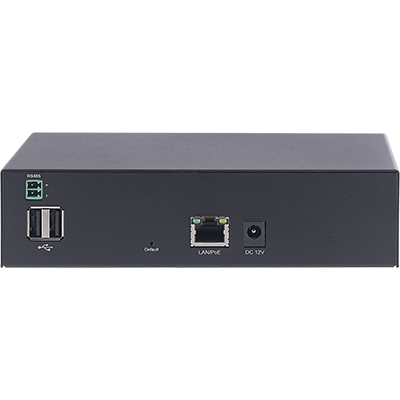

| Connector | Power: DC jack (DC 12V, 3A), PoE+ (IEEE 802.3at) |
| Ethernet: RJ-45 | |
| RS-485: RS-485 +/- (for GV-DFK1355 readers) | |
| Memory Card Slot: microSD card (SDHC / SDXC / UHS-I, Class 10, Linux ext4 format) | |

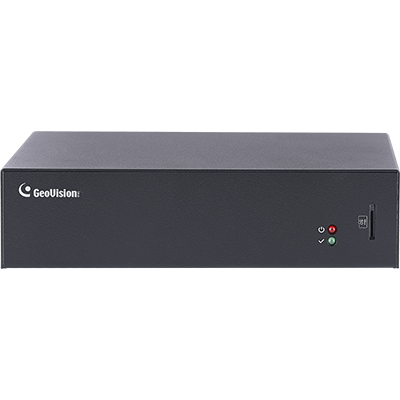

| SSD (Optional): 2.5" SSD SATA 3 interface, max. 4 TB, Linux ext4 format *The SSD Mounting Kit is required to install a SSD. USB: Not functional LED Indicator: 2 LEDs: Power, Status | |
| General | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 20% to 80% (no condensation) |
| Weather Resistance | Indoor use only |
| Power Source | 12V DC, 3A / PoE+ (IEEE 802.3at) *The device can only accept one power source, either a PoE power supply or a DC power adapter. Connecting two power sources simultaneously can damage the device. |
| Power Consumption | DC power adapter: 36 W (max. 3A at 12V DC) PoE power supply: 25 W (PoE+, IEEE 802.3at) |
| Dimensions (W x H x D) | 170.10 x 97.70 x 43.00 mm (6.7 x 3.8 x 1.7 in) |
| Net Weight | 688 g (1.52 lb) |
| Certification | CE, FCC, LVD, RCM, UKCA compliant |
| Operation | |
| Cloud VMS License | Basic / Standard License: 4 channels (SD card), 8 channels (SSD) Premium License: 4 channels (SD card), 8 channels (SSD) |
| GV-VPN | 8 mapping devices, a maximum of 80 Mbps |
| People and Vehicle Detection (PVD) | 8 channels |
| Mobile App | GV-Eye |
| Specifications | GV-AS Controller: 1 controller |
| GV-DFK1355 reader: 8 readers IP Camera: 8 cameras Database: 100,000 cards *Supports either up to eight readers or one controller | |
| Center V2 / Dispatch Server | 4 channels (SD card), 8 channels (SSD) |
| Recording Server / Video Gateway | 8 channels |
| RTMP | 2 channels for RTMP livestream |
| GV-VPN | 8 mapping devices, a maximum of 80 Mbps |
| People and Vehicle Detection (PVD) | 8 channels (only for GV-Center V2 AI version) |
| Mobile App | GV-Eye |
| GV-VPN Box | 16 mapping devices, a maximum of 80 Mbps |
| GV-Cloud Video Watch | 4 channels (SD card), 8 channels (SSD) |
| GV-VPN | 8 mapping devices, a maximum of 80 Mbps |
| People and Vehicle Detection (PVD) | 8 channels |
| Mobile App | GV-Eye |
| GV-IO Box (4E / 8E / 16E) | 4 units |
| Virtual I/O | 16 in / 16 out from cameras and GV-IO Box |
| GV-IP Speaker | 8 units |
| Event Trigger | |
| Event Type | Motion, PVD Motion, Intrusion, Enter Area, Leave Area, Loitering, I/O Input |
| Trigger Output | I/O Output, Audio Alarm |
| Management | |
| Installation Management | Web-based configuration |
| Browser Support | Chrome, Edge, Firefox, Safari |
| Access from Web Browser | Live View, Image Snapshot, Audio, Picture in Picture, Stats (Codec, Resolution, Audio, Bitrate, FPS, Client) |
| Language | English |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility (V9.0.2.0 or later) |
| 3rd Party IP Camera Support | Yes (ONVIF) |
| Application | |
| Software Supported | See Compatible Products below. |
| Smart Device Access | See Mobile App in Compatible Products below. |
The GeoVision 89-CBPRO01-2TB is a powerful cloud bridge device designed for seamless IP camera integration with GeoVision's cloud services, featuring an included 2.5" 2TB SSD (SATA 3, Linux ext4 format) mounted via the included SSD Mounting Plate—supporting up to 4TB maximum capacity. Powered by H.265/H.264 video compression and G.711 audio, it enables efficient cloud connectivity through GV-Cloud VMS, GV-VPN, and GV-Center V2 platforms with support for up to 8 channels of People and Vehicle Detection (PVD). Network connectivity is provided via Gigabit Ethernet with PoE+ (IEEE 802.3at) support, delivering up to 25W over PoE or 36W via DC power.
The device offers comprehensive functionality including cloud access control integration supporting one GV-AS controller or up to eight GV-DFK1355 readers with 100,000 card database capacity, GV-VPN for up to 16 mapping devices at 80 Mbps, RTMP livestreaming for 2 channels, and GV-IO Box support for up to 4 units with 16 virtual I/O points. Event triggering includes motion, PVD motion, intrusion, area detection, loitering, and I/O input with output and audio alarm responses. Housed in a compact indoor enclosure (170 x 97.7 x 43mm) weighing 688g, it operates at 0°C to 40°C and is fully configurable via web browser. Fully ONVIF compliant, it integrates seamlessly with GV-Cloud VMS, GV-Eye mobile app, and supports 3rd party IP cameras for versatile cloud-based surveillance deployments requiring extended 2TB local storage.
