GeoVision - 94-A908V2X-064 - UVS Ultra 4U 8bay VMS i9 64CH Advanced
• Powered by 14th Generation Intel® Core™ i-Series Processors
• Windows 11 Professional 64-bit
• Support GPU Decoding
• Standard Video Analytics Package
• Support up to 64-channel GV-VMS (pure IP surveillance)
• Dual Gigabit LAN ports: 2.5 Gigabit, 1 Gigabit
• 0/2/4/8/20 Hot-Swappable Bays
• Surveillance Grade SATA III HDDs
• Built-in 4 inputs and 4 outputs
• System Restore Hidden Partition
• Solid State OS Drive Standard
• Optional Redundant Power Supply Unit
• Optional RAID Protection
| CPU | Intel 14th Generation i7 / i9 |
| Memory (RAM) | 32GB DDR5 |
| Hot Swap Bay | 4 / 8 / 20 |
| OS Drive | 512GB SSD |
| OS | Full Version Windows 11 Profession 64 bit |
| Video | |
| Codec | MPEG4, MJPEG, H.265, H.264 |
| Input | 32 or 64 |
| Video Resolution | Panel Resolution up to 4K |
| Backup Type | DVD±R, DVD±RW, CD-R/RW |
| Alarm Inputs | |
| Sensor Input | 4 |
| Alarm Output | 4 |
| Connector | |
| Ethernet | 2 or 4 RJ-45, 10/100/1000 Mbps |
| VGA Output | DisplayPort, HDMI |
| USB 2.0 | 2 Rear |
| USB 3.1 | 2 Front, 4 Rear |
| Remote Access | TCP/IP, LAN, WAN, Internet, ISDN |
| Operating Temperature | 0 to 45 °C (32 to 133 °F) |
| Humidity | 0 to 80% RH (non condensing) |
| Dimensions (W x D x H) | 19 x 22.5 x 3.5 inch / 19 x 26 x 7 inch |
| Raid (optional) | 0, 1, 5, 6 |
| Power Supply | |
| 4 Bays | 500W |
| 8 Bays | 500W |
| 20 Bays | 1000W |
| Languages | English / Spanish |
| Optional Products | GV-IO 12-In Card / GV-IO 12-Out Card / GV-IO Box 4 / GV-IO Box 8 / GV-IO Box 16 / GV-Data Capture Box Series / GV-Hub Box / GV-COM Box / GV-DOM / GV-Joystick / GV-Remote / GV-Keyboard |

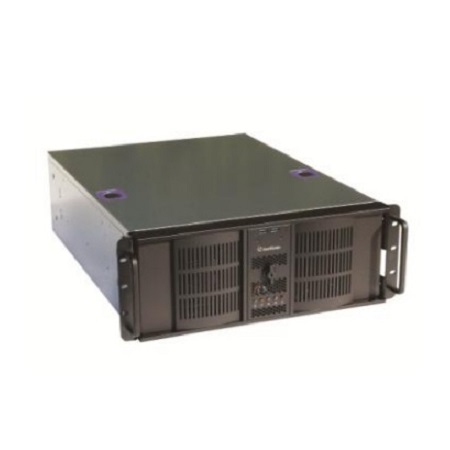

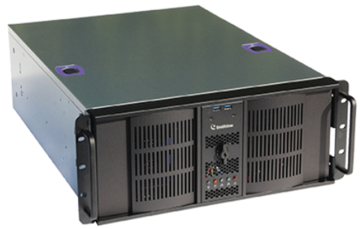

The GeoVision 94-A908V2X-064 UVS Ultra 4U 8-Bay i9 Advanced is a top-tier, enterprise-grade, 64-channel video management system server. As part of the 'Advanced' series, this model uses the high performance of an Intel Core i9 processor and an 8-bay hot-swap chassis to provide a reliable solution for large-scale surveillance requiring high-speed processing and significant local storage.
