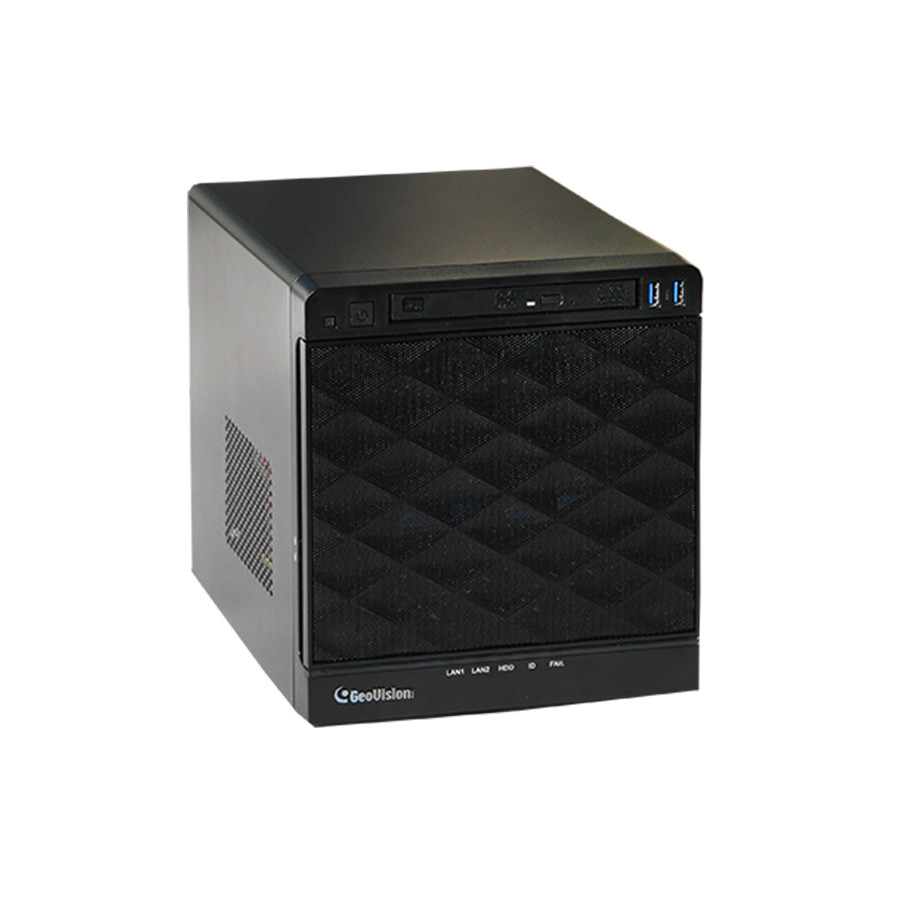

GeoVision - 94-NC3C4-C16 - UVS Cube Hotswap i3 4 Bay
• Powerful Processor: Powered by Intel Core i3 / i5 / i7 for efficient performance and multitasking.
• Robust Operating System: Runs on 64-bit Windows Embedded Standard 7 for stability and security.
• GPU Decoding Support: Enhances video playback quality and reduces CPU usage for smooth viewing.
• Maximum Storage: Offers storage capacity of up to 16 Terabytes for extensive video retention.
• Pre-installed Recovery System: Simple recovery process from hidden partition to minimize downtime.
• Dual LAN Ports: Equipped with 2 Gigabit LAN ports for improved network reliability.
• Dual Monitor Setup: Supports dual display with VGA / DVI-D or VGA / HDMI outputs for enhanced monitoring.
• 3rd Party Camera Support: Compatible with 3rd party IP cameras using H.264 codec for flexible camera integration.
• All-in-one Surveillance Solution: Features Live View, Playback, Recording, Backup, and CMS functionalities.
• Advanced Video Analysis: Includes features like Motion Detection, Privacy Mask, Scene Change Detection, and Counting.
• Fisheye Dewarping: Enjoy full control and naja viewing of fisheye camera footage.
• Automatic Camera Connection: Effortlessly links to GV IP cameras for quick setup.
• Multiple Video Formats: Supports H.264, MJPEG, and MPEG4 for versatile video management.
• Dual Video Streams: Allows simultaneous video streams for better resource management.
• On-screen LED Panel: Provides HDD status visibility for real-time monitoring and maintenance.
• Smart Phone Access: Manage and view camera feeds remotely via mobile devices.
• Multi-Language Support: Offers 29 different language options for global accessibility.
| Processors | i3 |
| IP Inputs | Up to 16 |
| Included IP Licenses | 32 channels of GeoVision IP cameras |
| 3rd Party IP Licenses | Optional |
| Server OS | Windows 7 Pro 64 Bit embedded |
| OS Drive | 64GB SSD |
| Optional OS Drive | 128GB SSD |
| Data HDD Included | 0 |
| Max # of HDD | 4 |
| Max HDD Storage | 16TB |
| Removable HDD | Yes |
| Hotswappable HDD | Yes |
| Height (in) | 7.5 |
| Width (in) | 7.75 |
| Depth (in) | 10 |
| Weight Approximate (lbs) | 10 without HDDs |
| NIC | 2 (1 Internal, 1 External) |
| RAM | 8GB |
| USB Ports | 6 |
| VGA Output | 2 (VGA, DVI, HDMI) |
| Hardware Watchdog | Included |
| Operating Temperature | 0 to 45 °C (32 to 133 °F) |
| Humidity | 0 to 80% RH (non condensing) |
The 94-NC3C4-C16 is a GV-CUBE NVR Hot-Swap 4-Bay System featuring an Intel Core i3 processor based on the latest 4th Generation Haswell architecture and a 64-bit Microsoft Windows 7 operating system. This powerful NVR supports up to 32 IP camera channels, providing extensive surveillance capabilities. With an additional licence, it can also connect to up to 32 third-party IP devices. Enhance your viewing experience by connecting to an HDTV with an HDMI cable.
