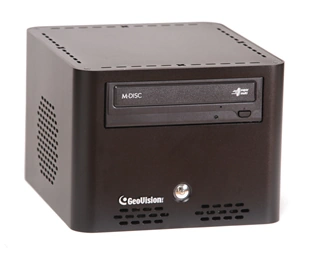

GeoVision - 94-NC52T-C32 - UVS Cube i5 with 2TB HDD
• Processor: Powered by the Intel Core i5 Processor for enhanced performance and responsiveness.
• Operating System: 64-bit Windows Embedded Standard 7 ensures compatibility and support for various applications.
• Memory: 8GB of RAM for efficient multitasking and operation.
• GPU Decoding: Supports GPU decoding for improved video playback performance.
• Video Resolution: Capable of displaying high-quality video resolutions up to 2560x1920 (5M) for detailed surveillance footage.
• Storage Capacity: Maximum storage capacity of up to 4 Terabytes for extensive video storage capabilities.
• Recovery Feature: Pre-installed recovery system from the hidden partition for quick restoration.
• Connectivity: Gigabit LAN port for fast and reliable network connectivity.
• Dual Monitor Support: Offers VGA, DVI-D, and HDMI outputs for dual monitor display capability.
• IP Camera Compatibility: Supports third-party IP cameras with H.264 encoding for versatile surveillance options.
• All-in-One Solution: Provides Live View, Playback, Recording, Backup, and CMS functionality within a single system.
• Backup Function: Requires an external USB DVD/CD burner for backup operations.
• Video Analysis Features: Includes advanced motion detection, privacy mask, scene change detection, and counting capabilities.
| CPU | Intel 4th Gen Haswell i3 / i5 |
| Memory (RAM) | 8 GB |
| Video | |
| Codec | MPEG4, MJPEG, H.264 |
| Input | 16 / 32 |
| Video Resolution | 2560x1920 (5M), 2560x1600 (4M), 2048x1536 (3M), 1600x1200 (2M), 1280x960 (1.3M), 640x480 (VGA), 320x240 (CIF) |
| Backup Type | DVD+R (DL), DVD-R (DL), DVD+R, DVD+RW, DVD-R, DVD-RW, CD-R, CD-RW |
| Recovery DVD | Automatic System Rebuild |
| Connector | |
| Ethernet | RJ-45, 10/100/1000 Mbps |
| VGA Output | Dual Monitor Output DB-15 VGA, DVI-D and HDMI |
| USB 2.0 | Back: 2 Ports |
| USB 3.0 | Back: 4 Ports |
| Remote Access | TCP/IP, Lan, Wan, Internet, Modem to Modem, ISDN |
| Operating Temperature | 0 to 45 °C (32 to 133 °F) |
| Humidity | 0 to 80% RH (non condensing) |
| Dimensions (W x D x H) | 7.90" x 5.90" x 8.90" |
| Languages | English / Spanish |
| Optional Products | GV-IO Box 4 / GV-IO Box 8 / GV-IO Box 16 / GV-Data Capture Box Series / GV-Hub Box / GV-COM Box / GV-DOM / GV-Joystick / GV-Remote / GV-Keyboard |
The Geovision GV-CUBE NVR System (model 94-NC52T-C32) offers a powerful surveillance solution, supporting up to 32 IP camera channels and featuring high-performance processing capabilities and advanced functions such as video decoding and remote access. With a robust Intel Core i5 processor, 64-bit Windows Embedded Standard 7 and extensive storage options, this NVR system is designed for efficient, reliable video recording and management.
