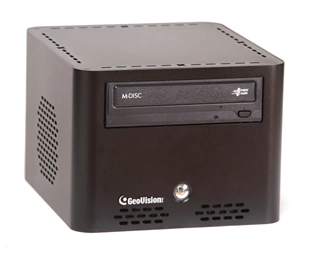

GeoVision - 94-NC54T-C32 - UVS Cube i5 with 4TB HDD
• Powered by Intel Core i5 Processor: Ensures efficient processing for high-resolution video management.
• 64-bit Windows Embedded Standard 7: Guarantees compatibility with advanced applications and improved system performance.
• 8GB of RAM: Supports multitasking and smooth operation of applications without lag.
• Support for GPU Decoding: Enhances video playback and stream management capabilities, reducing CPU load.
• Video Resolution: Provides high-quality video output, supporting resolutions up to 2560x1920 (5M) for detailed surveillance.
• Maximum storage capacity of up to 4 Terabytes: Allows for extensive video storage, catering to larger installations.
• Pre-installed recovery from the hidden partition: Ensures data integrity and easy recovery in case of system failures.
• Gigabit LAN port: Facilitates fast and stable network connectivity for reliable surveillance operations.
• Dual monitor display: Offers multiple connectivity options (VGA, DVI-D, and HDMI outputs), enhancing the user interface experience.
• Support for 3rd party IP cameras with H.264: Provides flexibility in camera selection and integration into existing systems.
• All-in-one solution: Combines live view, playback, recording, and backup features into a single platform for ease of access.
• For backup function: Requires connection to an external USB DVD/CD burner, ensuring data preservation and management.
• Video analysis: Advanced features like Motion Detection and Privacy Mask enhance surveillance capabilities.
| CPU | Intel 4th Gen Haswell i3 / i5 |
| Memory (RAM) | 8 GB |
| Video | |
| Codec | MPEG4, MJPEG, H.264 |
| Input | 16 / 32 |
| Video Resolution | 2560x1920 (5M), 2560x1600 (4M), 2048x1536 (3M), 1600x1200 (2M), 1280x960 (1.3M), 640x480 (VGA), 320x240 (CIF) |
| Backup Type | DVD+R (DL), DVD-R (DL), DVD+R, DVD+RW, DVD-R, DVD-RW, CD-R, CD-RW |
| Recovery DVD | Automatic System Rebuild |
| Connector | |
| Ethernet | RJ-45, 10/100/1000 Mbps |
| VGA Output | Dual Monitor Output DB-15 VGA, DVI-D and HDMI |
| USB 2.0 | Back: 2 Ports |
| USB 3.0 | Back: 4 Ports |
| Remote Access | TCP/IP, Lan, Wan, Internet, Modem to Modem, ISDN |
| Operating Temperature | 0 to 45 °C (32 to 133 °F) |
| Humidity | 0 to 80% RH (non condensing) |
| Dimensions (W x D x H) | 7.90" x 5.90" x 8.90" |
| Languages | English / Spanish |
| Optional Products | GV-IO Box 4 / GV-IO Box 8 / GV-IO Box 16 / GV-Data Capture Box Series / GV-Hub Box / GV-COM Box / GV-DOM / GV-Joystick / GV-Remote / GV-Keyboard |
The Geovision 94-NC54T-C32 32-channel GV-CUBE NVR system is a powerful surveillance solution designed for effective monitoring and security management. Powered by an Intel Core i5 processor and running on 64-bit Windows Embedded Standard 7, this NVR system supports up to 32 IP camera channels and offers expansive storage of up to 4 TB. Its comprehensive features include advanced video analysis, dual monitor support and mobile access, making it a fully integrated security system that delivers robust performance and user convenience.
