GeoVision - GV-ERM - Software 64ch Windows Version

Product Overview

GeoVision GV-ERM is a Windows-based software for centralized live monitoring and remote control of GeoVision IP devices. It supports 32 free channels, expandable to 64 via a GV-USB dongle. Include fisheye dewarping, remote playback, and two-way audio. It simplifies administration with batch IP assignment, PTZ control, and direct NAS recording management.

Key Configuration

• • Maximum channels: 32 channels free, up to 64 channels with GV-USB dongle
• • Supported OS: Windows 10 / Server 2016 / Server 2019 (64-bit)
• • CPU requirements: Core i3-4130 (3.4 GHz) for 32 channels; Core i5-4670 (3.4 GHz) for 64 channels (dual streams)
• • Memory requirements: 8 GB RAM (32 channels), 16 GB RAM (64 channels)
• • Graphic card: PCI-Express, 800×600 (1280×1024 recommended), 32-bit color

Key Features

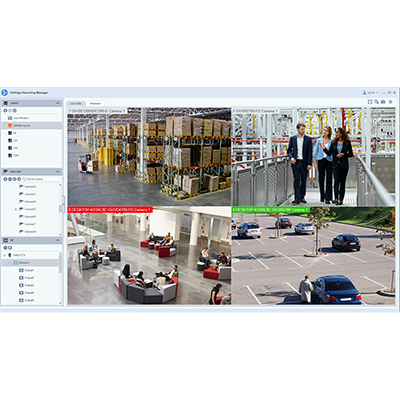

GV-ERM features fisheye dewarping and versatile display modes, including PIP, PAP, and Focus View, with support for multi-monitor projection. It allows users to manage recording for GV-IP cameras, NVR, and VMS and directly assign NAS storage. Operators can utilize PTZ control, two-way audio, and remote playback without accessing individual host interfaces. Administrative tools include batch IP assignment, storage monitoring, and GV-Joystick support, ensuring seamless control without disrupting active recordings.

Technical Context

Licensing is provided via internal/external dongles for Windows and in-app purchases for Mac. Both versions support up to 64 channels, with Windows adding GV-Joystick compatibility and the ability to capture live snapshots.

Installation Notes

A 64-bit Windows OS (Windows 10, Server 2016, or 2019) is required for installation. Expanding to 64 channels or adding GV-Joystick support requires a GV-USB dongle and a 64-channel license. The system must have a PCI-Express graphics card supporting 32-bit color. While the minimum resolution is 800×600, 1280×1024 is recommended for optimal performance.
