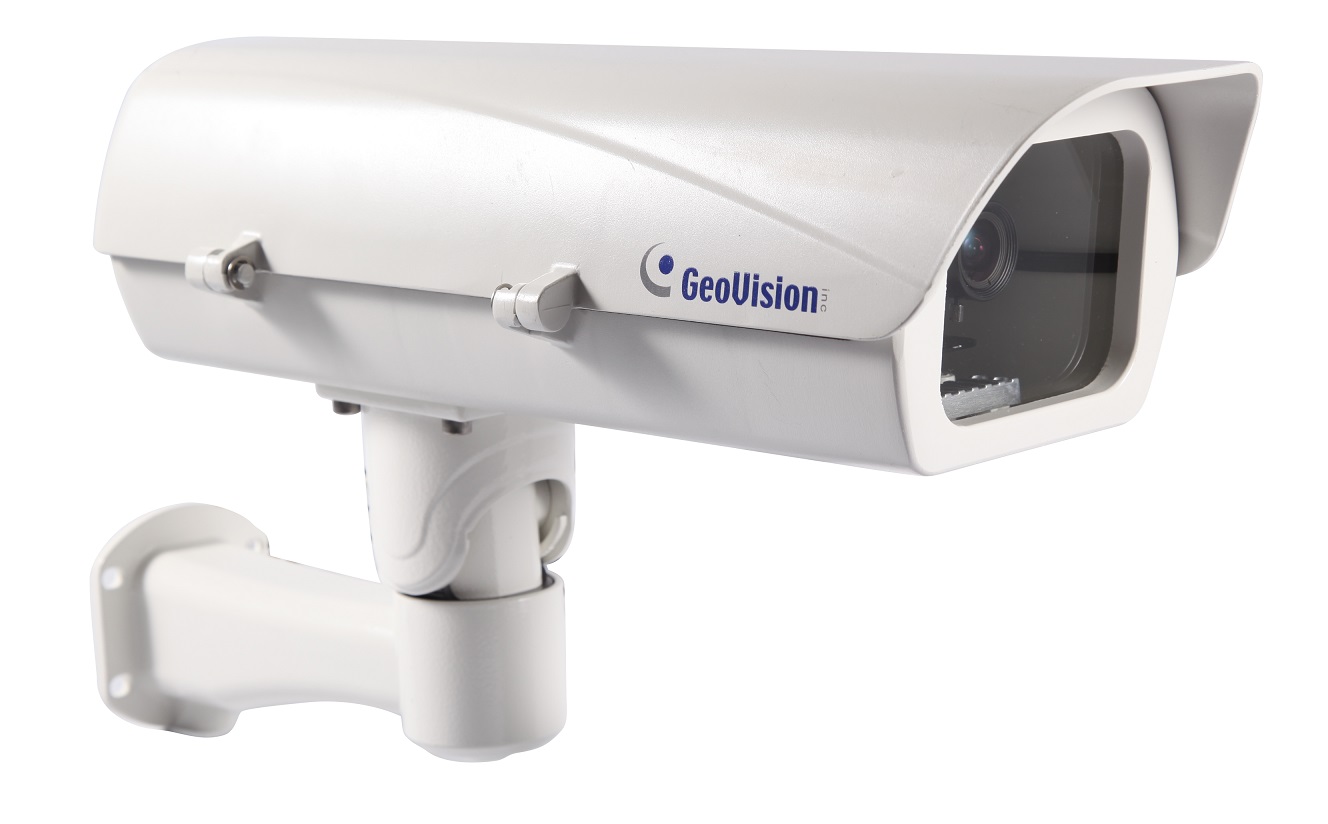

The GV-Housing102 is a housing box designed to support the outdoor installation of Box Camera with external protection. It conforms to IP67 and IK10 standards, and is equipped with a heater and a fan. The GV-Housing102 also supports optional GV-Mount accessories, allowing the Box Camera to be installed on the pole, convex and concave surfaces. Adopting the housing box enables flexible installation of the Box Camera to meet your needs for IP surveillance in various environmental conditions.
Specifications
|
Power |
2 pin terminal block (DC 12V 1.25A / AC 24V 0.58A) |
|
|
Temperature |
Start‐up |
30°C ~ 50°C (22°F ~ 122°F) |
|
Operation |
40°C ~ 50°C (40°F ~ 122°F) |
|
|
Heater |
On |
15°C (59°F) |
|
Off |
25°C (77°F) |
|
|
Fan |
On |
35°C (95°F) |
|
Off |
25°C (77°F) |
|
|
Dimensions (L x W x H) |
406 x 145 x 109 mm (16 x 5.7 x 4.3’’) |
|
|
Weight |
4.69 kg (10.34 lb) (including Supporting Tube) |
|
|
Ingress Protection |
IP67 |
|
|
Vandal Resistance |
IK10 (for metal casing) |
