GeoVision - GV-PA191 - PoE Adaptor
Part number:
140-PA191-000
Price:

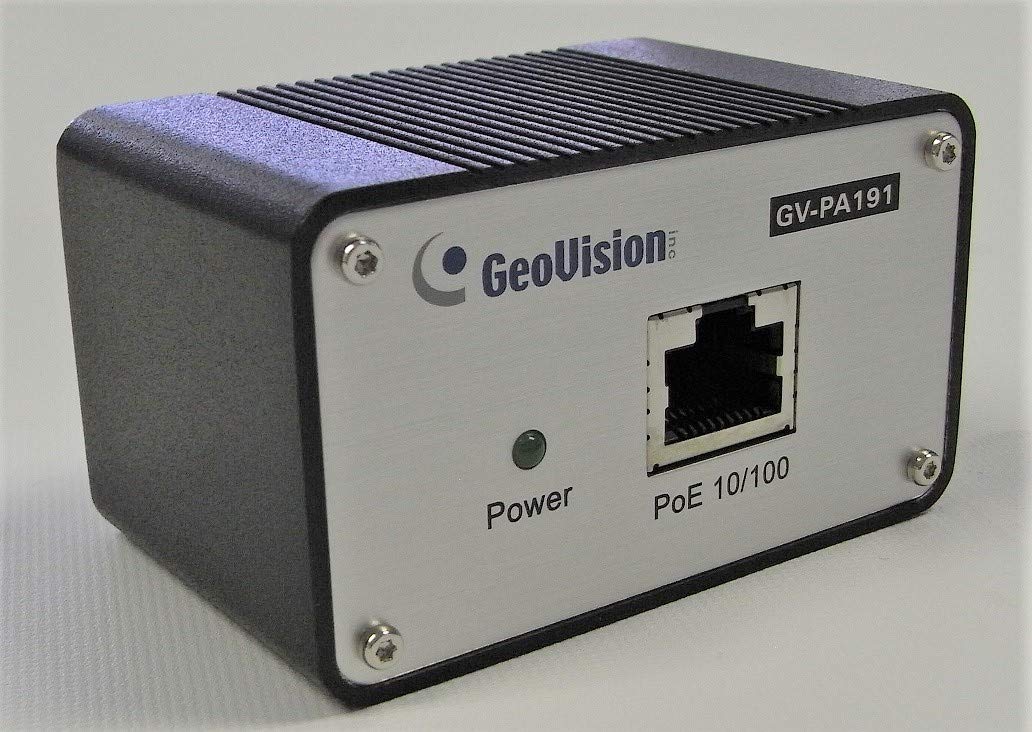

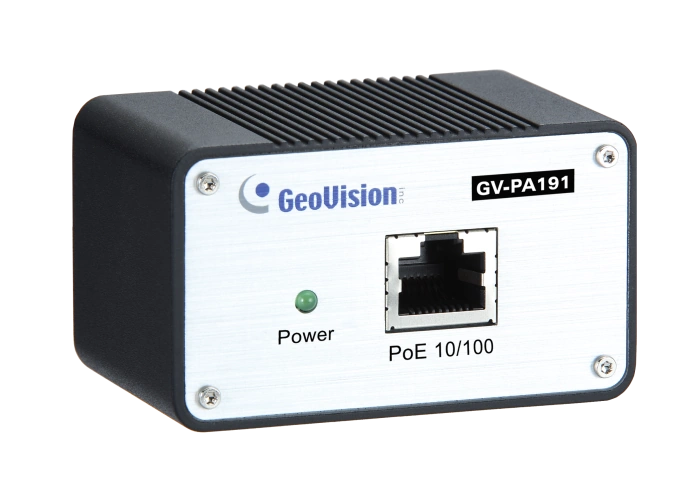

The GeoVision GV‑PA191 is a compact, single‑port Power over Ethernet (PoE) injector adapter designed to deliver both DC power and network data to an IP surveillance camera or other networked device over a single Ethernet cable, simplifying installation by eliminating the need for separate power cabling.
Key Features:
• PoE Output: 10 / 100 Out DC 48 V, 400 mA (Max. 19 W)
• Ethernet Cable Length: Max 100 m (328 ft) from Hub to IP device, CAT5
• Power Input: DC 48 V, 400 mA
• Operation Temperature: ‐10 °C ~ 50 °C (14 °F ~ 122 °F)
• Dimensions (L x W x H): 43 x 69 x 40 mm (1.69 x 2.72 x 1.57”)
• Weight: 130 g (0.29 lb)
| PoE Standard | Power over Ethernet (Max 19 W) |
| PoE Output (10 / 100 Out) | DC 48 V, 400 mA (Max. 19 W) |
| Ethernet Cable Length | Max 100 m (328 ft) from Hub to IP device, CAT5 |
| Power Input | DC 48 V, 400 mA |
| Operation Temperature | ‐10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Dimensions (L x W x H) | 43 x 69 x 40 mm (1.69 x 2.72 x 1.57”) |
| Weight | 130 g (0.29 lb) |
| Installation Guide | GV-PA191 PoE Adapter |
