Geovision - GV-TVD4810 - AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
Part number:
GV-TVD4810
Price:

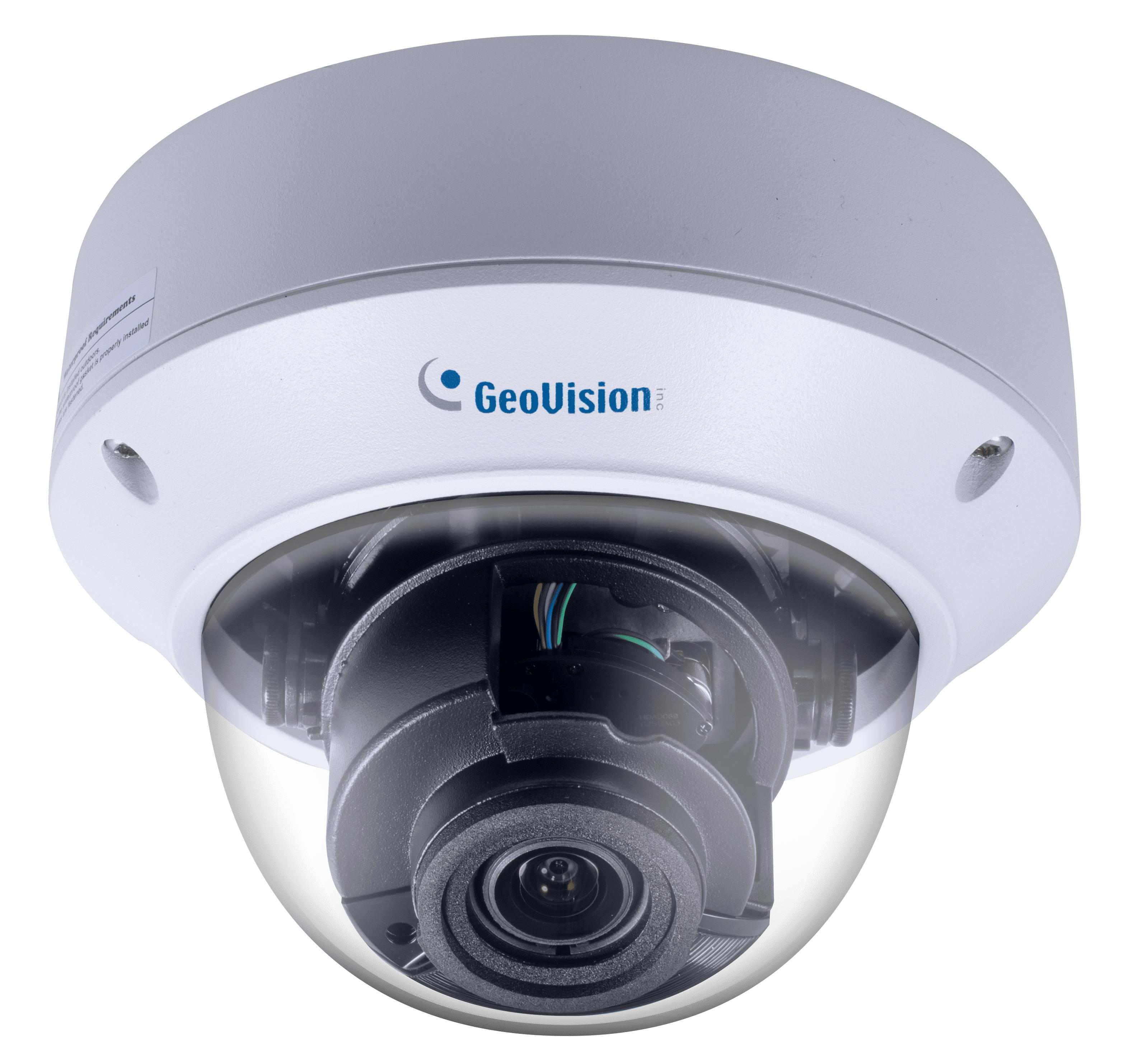

GV-TVD4810 is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.
Features:
- AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.002 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 2688 x 1520
- Motorized varifocal lens for remote focus / zoom adjustment
- Intelligent IR
- IR distance up to 40 m (130 ft)
- Day and Night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- 3-axis mechanism (pan / tilt / rotate)
- DC 12V / PoE (IEEE 802.3af)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Two-way audio
- Wide Dynamic Range Pro (WDR Pro)
- ONVIF (Profile G, S, T) conformant
| Camera | |
| Image Sensor | 1/3” progressive scan super low lux CMOS |
| Picture Elements | 2688(H) x 1520 (V) |
| Minimum Illumination |
|
| Shutter Speed | Automatic, Manual 1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized varifocal lens |
| Focal Length | 2.7 ~ 13.5mm |
| Maximum Aperture | F/1.2 |
| Mount | Ø 14 mm |
| Horizontal FOV | 98~ 31° |
| Operation |
|
| IR LED Quantity | 2 IR LEDs |
| Max. IR Distance | 40 m (130 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Frame Rate | 30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x1296 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 0°,90°, 180°, 270°‐including Corridor format) |
| Audio Compression | G.711 |
| Audio Support | Two‐way Audio (External speaker required) |
| Digital I/O |
|
| Face Detection | |
| Environment | 100 lux |
| Detectable face angle |
|
| Max. number of faces | Up to 40 |
| Min. face image pixel requirement | 80 pixels |
| Deep Learning Function | |
| AI Analytics | Intrusion, Cross Line, Enter Area, Face Detection, Leave Area (Human & Vehicle classification), People Flow Counting, Crowd Density Monitoring |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Video Resolution | |
| Main Stream | 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream | 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 640 x 480, 352 x 288 |
| Third Stream (Closed by Default) | 720 x 576, 704 x 288, 640 x 360,352 x 288 |
| Mechanical | |
| Camera Angle Adjustment |
|
| Connectors |
|
| General | |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 0% ~ 95% (no condensation) |
| Power Source | 12V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 7.0 W |
| Dimensions | Ø 148 x 111 mm (Ø 5.8 x 4.4”) |
| Weight | 0.92 kg (2.03 lb) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 for metal casing |
| Regulatory | FCC, CE, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or GV-IP Device Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,Defog, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0),GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1) |
| Live Viewing | Browser (Chrome, Edge, Firefox, Safari), Mobile App |
