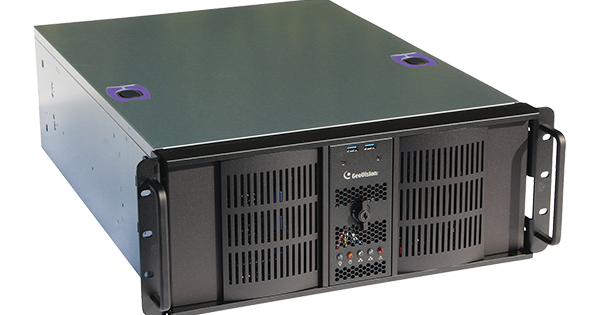

The UVS-Hot Swap Recording Server System is a video streaming server supported by a powerful data storage capacity and designed for large-scale video surveillance deployments. It comes with 4U (8 / 20-bay) hot-swappable SATA mobile racks. Depending on the HDD size, the GV-Hot Swap Recording Server System can store more than 200 terabytes of recorded data.

The built-in GV-Recording Server can receive and record up to 128 channels from various IP video devices. In addition, it can simultaneously distribute up to 300 channels to its clients which include GV-System (DVR/NVR system), GV-Control Center (central monitoring system) and Multi View (viewing software). Using the GV-Recording Server, the desired frame rates can be reached while the CPU loading and the bandwidth usage of IP video devices are significantly reduced.

Features:

• Windows Embedded 10 64-bit (x64)
• Powered by Intel Core i7 Processor
• 8 / 20 hot-swappable SATA drive bays for data storage
• Maximum storage capacity of more than 200 TB (4U 20-Bay) / 80 TB (4U 8-Bay)
• Simultaneous receiving and recording up to 128 IP channels
• Distributing up to 300 IP channels of video to clients
• Six RJ-45 10/100/1000 Mbps LAN ports
• Six USB 2.0 ports and two USB 3.0 ports
• Recovery DVD in case of failure
• Web interface to remotely configure and monitor GV-Recording Server
• Two-way audio communication (only for GV-IP devices through active connection)
• Support for third-party IP video devices (Sony, Axis, VIVOTEK, Panasonic, HikVision, Arecont Vision)
• Support for ONVIF, PSIA and RTSP protocols
• Support for 29 languages
• RAID 0 / 1 / 5 / 6 (optional)
