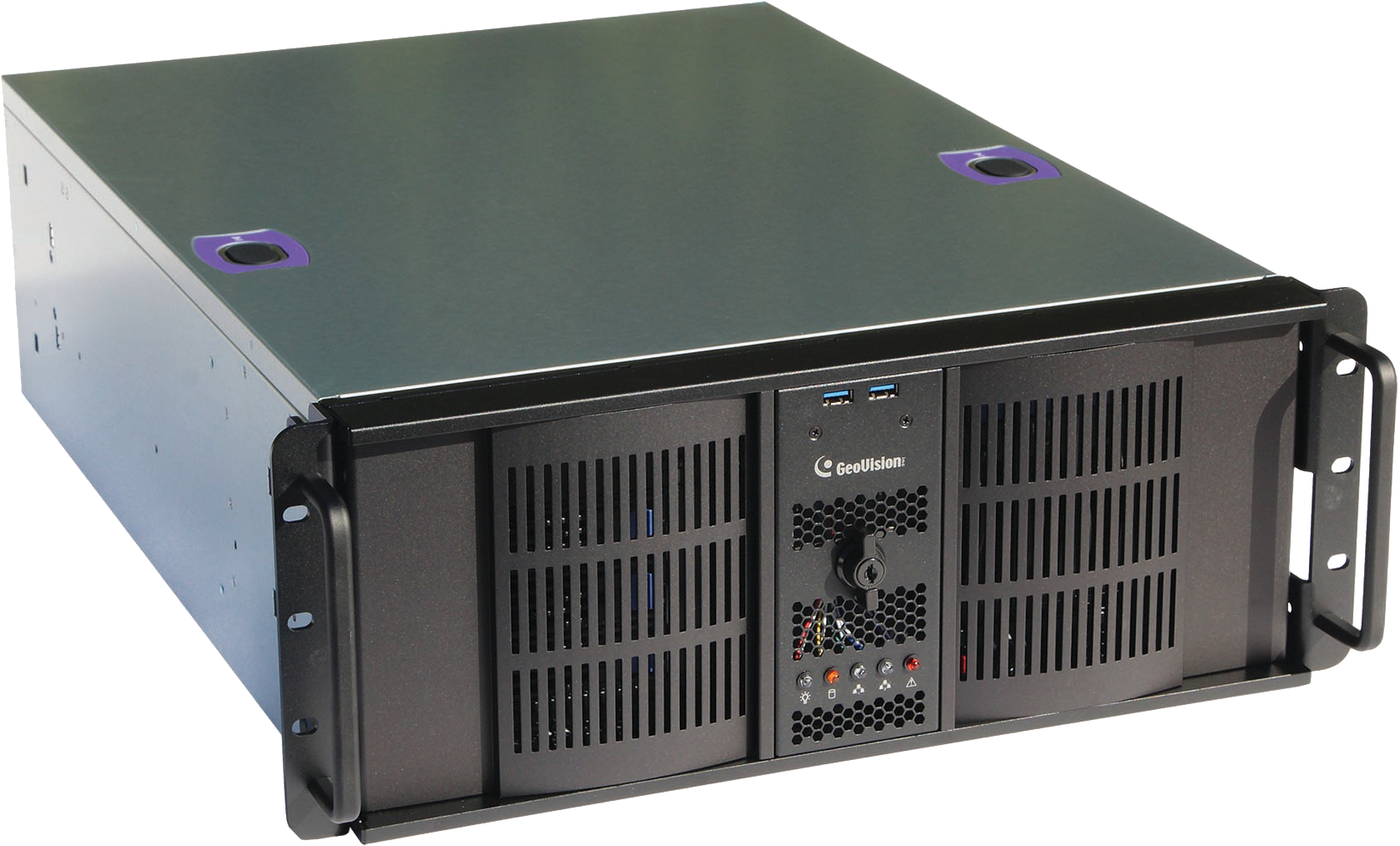

GeoVision - 94-AI908-008 - UVS Ultra i9 8 Bay AI Guard Basic Server 8CH
Part number:
839-AI908-008
Price:
• Powered by 8th Generation Intel Core i-Series Coffee Lake Processors
• Windows 10 Professional 64 bit
• Support GPU Decoding
• Standard Video Analytics Package
• Support 32-channel GV-VMS (pure IP surveillance)
• Dual Gigabit LAN ports: 2.5 Gigabit, 1 Gigabit
• 0/2/4/8 Hot-Swappable Bays
• Surveillance Grade SATA III HDDs
• Built-in 4 inputs and 4 outputs
• System Restore Hidden Partition
• Solid State OS Drive Standard
• Optional Redundant Power Supply Unit
• Optional RAID Protection
| CPU | Intel 8th Generation i5 Coffee Lake |
| Memory (RAM) | Standard 16 GB DDR4 / Optional 32 GB DDR4 |
| Hot Swap Bay | 2 / 4 / 8 |
| Video | |
| Codec | MPEG4, MJPEG, H.265, H.264 |
| Input | 32 or 64 |
| Video Resolution | Panel Resolution up to 4K |
| Backup Type | DVD±R, DVD±RW, CD-R/RW |
| Recovery Option | Hidden Partition System Restore |
| Alarm Inputs | |
| Sensor Input | 4 |
| Alarm Output | 4 |
| Connector | |
| Ethernet | 2 RJ-45, 10/100/1000 Mbps |
| Output VGA | DVI-D, DP, and HDMI |
| USB 2.0 | 2 Rear |
| USB 3.1 | 2 Front, 4 Rear |
| Remote Access | TCP/IP, LAN, WAN, Internet, ISDN |
| Operating Temperature | 0 to 45 °C (32 to 133 °F) |
| Humidity | 0 to 80% RH (non condensing) |
| Dimensions (W x D x H) | 19 x 24 x 7 inch |
| Raid (optional) | 0, 1, 5, 6 |
| Power Supply | 520W |
| Optional Products | GV-IO 12-In Card / GV-IO 12-Out Card / GV-IO Box 4 / GV-IO Box 8 / GV-IO Box 16 / GV-Data Capture Box Series / GV-Hub Box / GV-COM Box / GV-DOM / GV-Joystick / GV-Remote / GV-Keyboard |
| Languages | English / Spanish |
