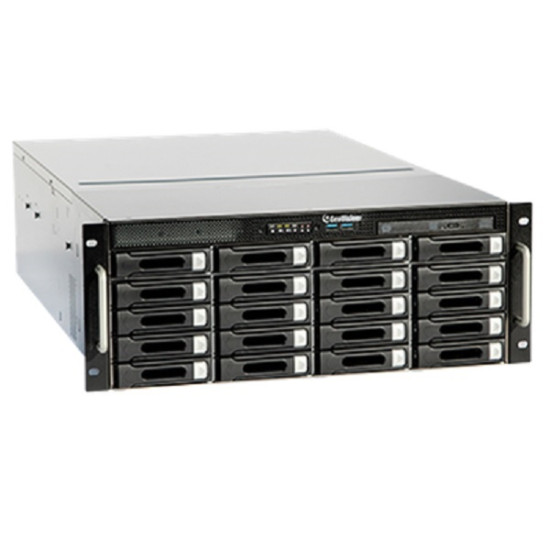

GeoVision - 94-BA708-200 - UVS i7 Backup Center Server 8 Bay
• Windows Embedded 7 64‐bit (x64)
• Powered by Intel Core i7 Processor
• Maximum storage capacity of more than 60 TB (4U 20‐Bay) / 48 TB (3U 16‐Bay) / 24 TB (3U 8‐Bay)
• 20 (4U), 16 / 8 (3U) hot‐swappable SATA drive bays
• Four Gigabit LAN ports
• Four USB 2.0 ports and four USB 3.0 ports
• Recovery DVD in case of failure
• Remote backup
• Up to 200 units of GV‐System and GV‐IP Devices supported
• Up to 10 backup rules for working and non‐working days independently
• Support for backing up GV‐System recordings according to event types (all types, motion or I/O trigger)
• E‐Mail alerts for low disk space, disconnection, and file transfer failure
• Online data analysis by Event Count, File Size and Time
• Failover support (GV‐IP Devices only)
• Web interface for event query
• Support for 16 languages
• RAID 0 / 1 / 5 / 6 / 00 / 10 / 50 / 60 data protection (optional)
| System | |
|---|---|
| CPU | Intel Core i7 Processor |
| RAM | 4 GB Dual Channels |
| OS | 64-bit Microsoft Windows 7 Embedded |
| DirectX | 11 |
| No. of HDD | 20 (3.5" HDD) |
| Internal Storage | 500 GB (3.5" HDD) |
| Ethernet | RJ-45, 10 / 100 / 1000 Mbps x 4 |
| Video Output | 3 displays with outputs VGA, DVI-D (DVI-D signal Only) and HDMI |
| Connector | |
| USB 2.0 | Front: 2 ports, Rear: 2 ports |
| USB 3.0 | Rear: 4 ports |
| DVD (±) RW | Slim 8X |
| Fan | 12 cm (4 3/4") 3 units |
| 8 cm (3 1/8") 2 units | |
| Power | Output: 1000 W Input: 90-264 V, 47-63 Hz |
| Backup Type | DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW |
| System Monitoring and Recovery | |
| Power Restoration | Automatic restart after power outage |
| Monitoring | Two independent Watchdogs (Hardware Watchdog + Software Watchdog) |
| Recovery DVD | Automatic system rebuild from DVD |
| Environment | |
| Operating Temp. | 0 ~ 45 °C / 32 ~113 °F |
| Humidity | 0 ~ 80% RH (non-condensing) |
| Physical | |
| LED Indicator | Yes (Fan, Power, HDD) |
| Color | Black |
| Dimensions (W x H x D) | 483 x 178 x 660.4 mm / 19 x 7 x 26 in |
| Weight | 23.5 kg / 51.8 lb (± 1 kg / 2.2 lb) |
| Software Specifications | |
| Number of hosts | 200 units of GV-System and GV-IP Devices |
| Number of user accounts | 100 in total including Supervisors and Users |
| Backup schedule | Yes (for GV-System and GV-IP Devices) |
| Backup rules | 10 rules for working and non-working days independently |
| Resuming backup after losing connection to hosts | Yes |
| E-mail alert | Low disk space, disconnection, file transfer failure |
| Disk space recycle | Yes |
| Keep Day | Definable and unlimited in number |
| System Log query | Web-based query pages |
| Video playback | Available through web-based query pages, or Remote ViewLog Playback program additionally installed from Software DVD |
| Language | Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese / Turkish |
Designed for large-scale video surveillance deployments, the GV-Hot Swap Backup Center System provides a secure remote backup solution with powerful data storage capacity for the GV-System and GV-IP Devices. It comes with a choice of 4U (20-bay) or 3U (16/8-bay) hot-swappable SATA mobile racks. Depending on the HDD size, the GV-Hot Swap Backup Centre System can store over 60 terabytes of recorded data. The built-in GV-Backup Centre can automatically store copies of recordings and logs in an offsite location. In the event that the GV-System and GV-IP Devices are damaged, the recording data remains safe in a different location.
