GeoVision - 94-EXPANSI-0001 - UVS Expansion System 24Bay (HDD Extra)
• Intelligent Enclosure Management
• Individual drive power management
• Cutting-edge performance and scalability
• Expander Self-discovery/Self-configuration (connects Mini SAS port to host or expansion)
• Supports SES-2 (SCSI Enclosure Service)
• Hot swap design for easy maintenance and management
• Tool-less drive trays (come with screw holes to adapt to 2.5” drives)
• Adjustable Thermal Profile
• Easy deployment
| General | |
|---|---|
| Number of Expander | Single/Dual |
| Expander Chip | LSI SAS3x36R |
| Host/Expansion Interface | 3 x Mini SAS HD (SFF-8644) per expander module |
| Drives Supported | |
| Drive Interface | 12Gb & 6Gb SAS if using dual expanders 12Gb & 6Gb SAS/SATA if using single expander |
| Form Factor | 3.5" |
| Administration / Management | |
| Admin/Firmware Upgrade | In-band & Serial port interface IEM port (Optional) |
| LED indicators, Audible Alarm | Yes |
| Hot swap and Redundancy | |
| Drive Bays | 24 |
| Cooling | 4 x 6038 hot swap fans |
| Power Supply | 549W 1+1 hot swap redundant 80+ Platinum |
| Power Entry | Dual AC Inlet |
| Expander Modules | Dual expanders (Optional) |
| Electrical and Environmental | |
| Universal A/C Input | 100~240V AC full range |
| Operating Environment | Temperature: 0ºC to 35ºC Relative humidity: 20% to 80% |
| Non-operating Environment | Temperature: -20ºC to 60ºC Relative humidity: 10% to 90% |
| Physical Specification | |
| Dimensions (W x D x H) | mm: 430 x 534 x 174.4 inches: 16.9 x 21 x 6.9 |
| Gross Weight (w/ PSU, w/o Rail & Disks) | kgs: 29 lbs: 63.9 |
| Packaging Dimensions (W x D x H) | mm: 591 x 851 x 378 inches: 23.2 x 33.5 x 14.9 |
| Mounting | Standard Adjustable plate Option 28" tool-less rail (North America Standard) |

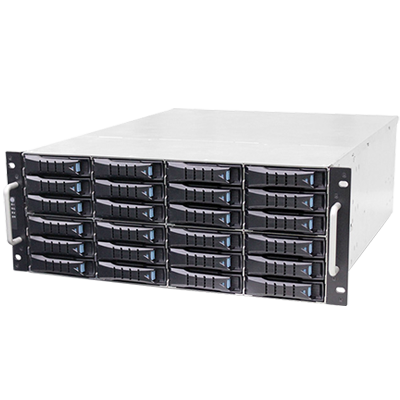

The 94-EXPANSI-0001 from Geovision is a 24-bay expansion system designed as a 19-inch, 4U rack-mount JBOD unit. It optimises solutions for servers and external storage systems and features the latest SAS 3.0 12Gb/s interface. Crafted for environments requiring reliable data growth, this system incorporates cutting-edge technologies for enhanced performance and efficiency.
