GeoVision - 94-RS08A-064 - Recording Server 8 Bay i7 64CH
• Windows Embedded 10 64-bit (x64)
• Powered by Intel Core i7 Processor
• 8 / 20 hot-swappable SATA drive bays for data storage
• Maximum storage capacity of more than 200 TB (4U 20-Bay) / 80 TB (4U 8-Bay)
• Simultaneous receiving and recording up to 128 IP channels
• Distributing up to 300 IP channels of video to clients
• Six RJ-45 10/100/1000 Mbps LAN ports
• Six USB 2.0 ports and two USB 3.0 ports
• Recovery DVD in case of failure
• Web interface to remotely configure and monitor GV-Recording Server
• Two-way audio communication (only for GV-IP devices through active connection)
• Support for third-party IP video devices (Sony, Axis, VIVOTEK, Panasonic, HikVision, Arecont Vision)
• Support for ONVIF, PSIA and RTSP protocols
• Support for 29 languages
• RAID 0 / 1 / 5 / 6 (optional)
| CPU | Intel i7 / i9 11th Generation CPU |
| Memory (RAM) | 16GB DDR4 |
| Hot Swap Bay | 8/ 20 |
| Number of IP Video Device Connections | Up to 256 |
| Number of Remote Client Connections | 300 |
| OS | Full Version Windows 10 Profession 64 bit |
| System Drive | 256GB SSD |
| Recovery DVD | Automatic System Rebuild from DVD |
| Backup Type | DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW |
| Connector |
|
| Operating Temperature | 0 to 45 °C (32 to 133 °F) |
| Humidity | 0 to 80% RH (non condensing) |
| Dimensions (W x D x H) |
|
| Raid (optional) | 0, 1, 5, 6 |
| Power Restoration | Automatic restart after power outage |
| Power Supply |
|
| Monitoring | Two independent Watchdogs (Hardware Watchdog + Software Watchdog) |
| Languages | English |

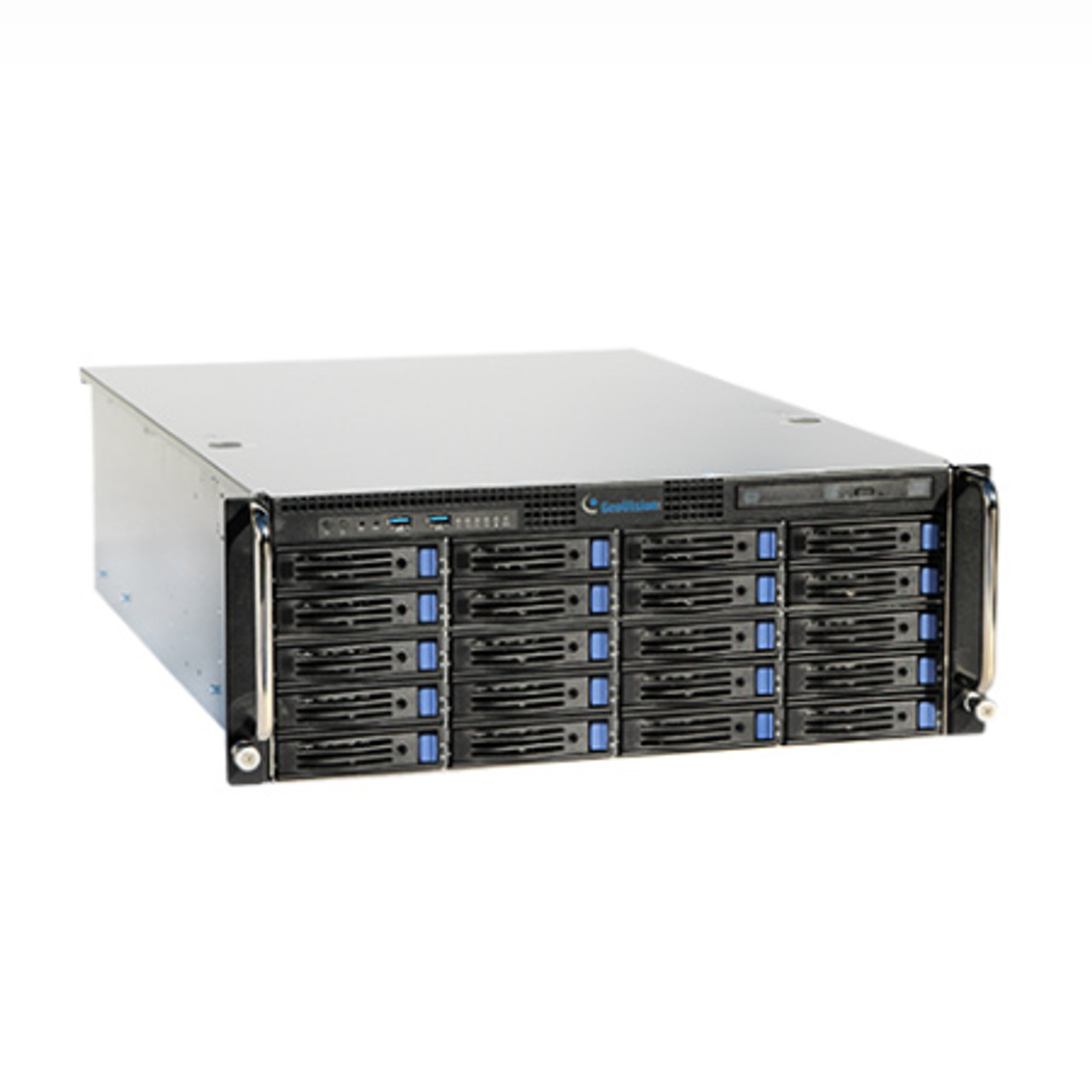

The UVS-Hot Swap Recording Server System is a video streaming server with a high data storage capacity, designed for large-scale video surveillance deployments. It comes with 4U hot-swappable SATA mobile racks with 8 or 20 bays. Depending on the HDD size, the GV-Hot Swap Recording Server System can store over 200 terabytes of recorded data.
The built-in GV-Recording Server can receive and record up to 128 channels from various IP video devices. It can also simultaneously distribute up to 300 channels to clients, including the GV-System (DVR/NVR system), the GV-Control Center (central monitoring system), and Multi View (viewing software). Using the GV-Recording Server, the desired frame rates can be achieved while significantly reducing the CPU loading and bandwidth usage of IP video devices.
