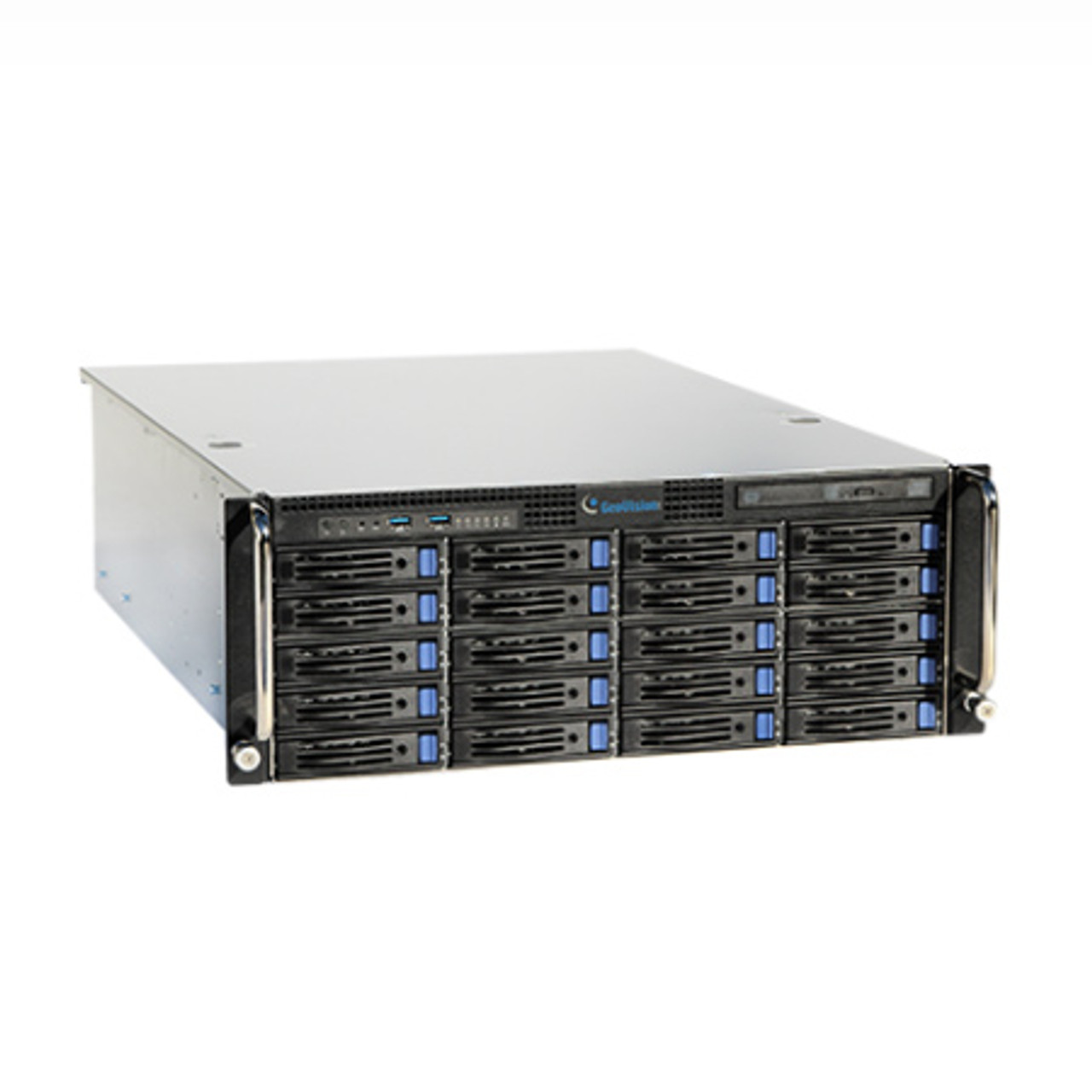

The UVS-Hot Swap Recording Server System is a video streaming server supported by a powerful data storage capacity and designed for large-scale video surveillance deployments. It comes with 4U (8 / 20-bay) hot-swappable SATA mobile racks. Depending on the HDD size, the GV-Hot Swap Recording Server System can store more than 200 terabytes of recorded data.
The built-in GV-Recording Server can receive and record up to 128 channels from various IP video devices. In addition, it can simultaneously distribute up to 300 channels to its clients which include GV-System (DVR/NVR system), GV-Control Center (central monitoring system) and Multi View (viewing software). Using the GV-Recording Server, the desired frame rates can be reached while the CPU loading and the bandwidth usage of IP video devices are significantly reduced.
| CPU | Intel i7 / i9 11th Generation CPU |
| Memory (RAM) | 16GB DDR4 |
| Hot Swap Bay | 8/ 20 |
| Number of IP Video Device Connections | Up to 256 |
| Number of Remote Client Connections | 300 |
| OS | Full Version Windows 10 Profession 64 bit |
| System Drive | 256GB SSD |
| Recovery DVD | Automatic System Rebuild from DVD |
| Backup Type | DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW |
| Connector |
|
| Operating Temperature | 0 to 45 °C (32 to 133 °F) |
| Humidity | 0 to 80% RH (non condensing) |
| Dimensions (W x D x H) |
|
| Raid (optional) | 0, 1, 5, 6 |
| Power Restoration | Automatic restart after power outage |
| Power Supply |
|
| Monitoring | Two independent Watchdogs (Hardware Watchdog + Software Watchdog) |
| Languages | English |
