GeoVision - 94-RS20A-096 - Recording Server 20 Bay i7 96CH

Product Overview

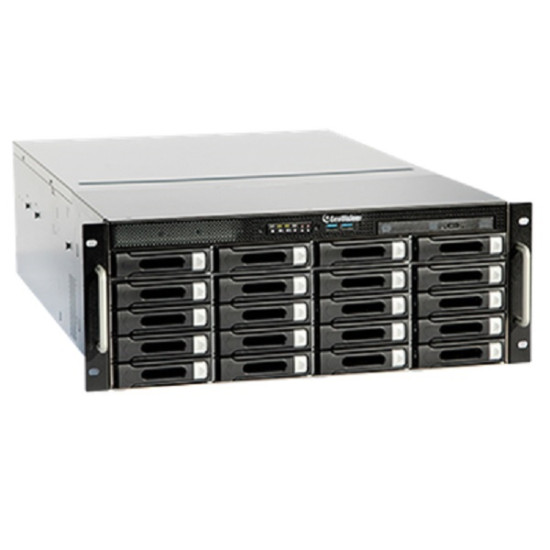

The GeoVision GV-Recording Server 20 Bay i7 96CH is a 4U rack‑mount recording server with 20 hot‑swappable SATA drive bays supporting over 200 TB of storage, powered by an Intel Core i7 processor, 16GB DDR4 RAM, and Windows 10 Pro 64‑bit. It supports up to 256 IP video device connections, 300 remote clients, 6 Gigabit LAN ports, and optional RAID 0/1/5/6 configurations for data protection and performance.

Key Configuration

• Drive bays: 20 hot-swappable SATA (4U, 200+ TB max)
• CPU: Intel Core i7 (11th Gen)
• Memory: 16GB DDR4 RAM
• OS drive: 256GB SSD
• OS: Windows 10 Pro 64-bit
• Network: 6 × RJ-45 10/100/1000 Mbps

Key Features

The GV-Recording Server is a high‑capacity video streaming server supporting simultaneous recording of up to 128 IP channels and distributing up to 300 IP channels to clients, including GV‑System, GV‑Control Center, and Multi View. It supports up to 256 IP video device connections and 300 remote clients, with two‑way audio communication for GV‑IP devices and compatibility with ONVIF, PSIA, RTSP protocols, as well as third‑party IP devices from Sony, Axis, VIVOTEK, Panasonic, HikVision, and Arecont Vision.

Technical Context

The 20‑bay 4U chassis features hot‑swappable SATA drive bays supporting over 200 TB of storage, with optional RAID 0/1/5/6 configurations for data redundancy and performance. A 256GB SSD serves as the system drive, and a recovery DVD is included for system rebuild. The server includes hardware and software watchdogs for system reliability, with automatic restart after a power outage and support for 29 languages.

Installation Notes

Measures 19" × 26" × 7", operates from 0–45°C with 0–80% RH, and is powered by a 1000W power supply. It features 6 Gigabit LAN ports for dedicated network segregation, runs Windows 10 Pro 64‑bit with an Intel Core i7 11th Gen processor and 16GB DDR4 RAM, and includes a web interface for remote configuration and monitoring.
