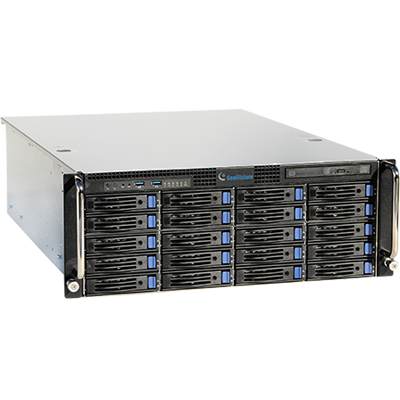

GeoVision - UVS-VMS-i9U20-64A - UVS Ultra 4U 20 Bay VMS i9 64CH
Part number:
837-NUi920-064
Price:
We are proud to present an updated line of VMS Servers based upon the newest Intel Core i-series architecture. GeoVision utilizes technology from the latest architecture to bring the most innovative surveillance software to the industry.
Features:
- Powered by 8th Generation Intel® Core™ i-Series Coffee Lake Processors
- Windows 10 Professional 64 bit
- Support GPU Decoding
- Standard Video Analytics Package
- Support up to 64-channel GV-VMS (pure IP surveillance)
- Dual Gigabit LAN ports: 2.5 Gigabit, 1 Gigabit
- 0/2/4/8/20 Hot-Swappable Bays
- Surveillance Grade SATA III HDDs
- Built-in 4 inputs and 4 outputs
- System Restore Hidden Partition
- Solid State OS Drive Standard
- Optional Redundant Power Supply Unit
- Optional RAID Protection
| CPU | Intel 11th Generation i7 / i9 |
| Memory (RAM) | Standard 16 GB DDR4 / Optional 32 GB DDR4 |
| Hot Swap Bay | 4/ 8/ 20 |
| OS Drive | 256GB |
| OS | Full Version Windows 10 Profession 64 bit |
| Video Resolution | Panel Resolution up to 4K |
| Backup Type | DVD±R, DVD±RW, CD-R/RW |
| Recovery Option | Hidden Partion System Restore |
| Sensor Input | 4* |
| Alarm Output | 4* |
| Ethernet | 2 or 4 RJ-45, 10/100/1000 Mbps |
| VGA Output | DisplayPort, HDMI |
| USB 2.0 | 2 Rear |
| USB 3.1 | 2 Front, 4 Rear |
| Remote Access | TCP/IP, LAN, WAN, Internet, ISDN |
| Operating Temperature | 0 to 45 °C (32 to 133 °F) |
| Humidity | 0 to 80% RH (non condensing) |
| Dimensions (W x D x H) | 19 x 26 x 3.5 inch / 19 x 26 x 7 inch |
| Raid (optional) | 0, 1, 5, 6 |
| Optional Products | GV-IO 12-In Card / GV-IO 12-Out Card / GV-IO Box 4 / GV-IO Box 8 / GV-IO Box 16 / GV-Data Capture Box Series / GV-Hub Box / GV-COM Box/ GV-DOM / GV-Joystick / GV-Remote / GV - Keyboard |
| Languages | English/ Spanish |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
