PLANET - POE-161S - Gigabit IEEE802.3at High Power PoE Splitter - 5V/12V
Product Overview

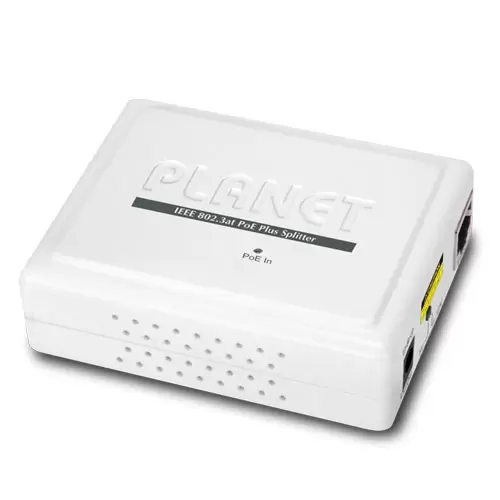

Planet POE-161S is a Gigabit 802.3at PoE+ splitter converting 52-56V DC input into selectable 5V or 12V DC output (up to 25.5W) via DIP switch, with passive 10/100/1000BASE-T data pass-through for powering non-PoE devices.
Key Configuration
- • PoE input: 1 × RJ45 (802.3at PD, 52-56V DC)
- • Data output: 1 × RJ45 (Gigabit pass-through)

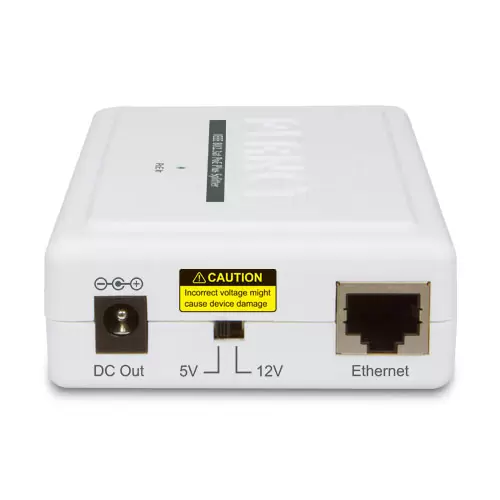

- • DC output: DC jack, 5V or 12V selectable via DIP switch
- • Power output: up to 25.5W
- • Dimensions: 95 × 70 × 25 mm; weight: 108g
Key Features
Selectable 5V/12V output via DIP switch. Supports both End-span and Mid-span PoE input. Passive Gigabit data pass-through. LED indicator for PoE input status. Plug-and-play operation. Operating temperature: 0-50°C. TAA compliant.
Technical Context
The POE-161S splits 802.3at power from data, converting 52-56V DC to regulated 5V or 12V DC for non-PoE devices. 5V output suits USB-powered and small electronics; 12V suits IP cameras, VoIP phones, and WAPs. Works with any 802.3at PSE (injector or switch) over Cat5/5e/6 up to 100m.
Installation Notes
Operating temperature: 0-50°C; humidity: 5-95% non-condensing. Select output voltage via DIP switch. PoE input requires 802.3at source (52-56V DC). Distance: up to 100m from PSE. Output via DC jack. Powers one device per splitter.
| Hardware Specification | |
| Hardware Version | 2 |
| Interface | “Data” Out Port” 1 x RJ-45 STP “PoE (Power + Data)” Input Port: 1 x RJ-45 STP DC Out Plug Connector: 1 |
| LED Indicator | System: PoE in Use x 1 (Green) |
| Network Cable | UTP Cat. 5/5e/6, up to 100m (328ft) |
| Data Rate | 10/100/1000Mbps |
| Dimension (W x D x H) | 95 x 70 x 25 mm |
| Weight | 108g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Gigabit Power over Ethernet / PD |
| PoE Power Input | IEEE 802.3at 52~56V DC |
| DIP Switch | 5V DC/12V DC output voltage |
| Number of devices that can be powered | 1 |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
