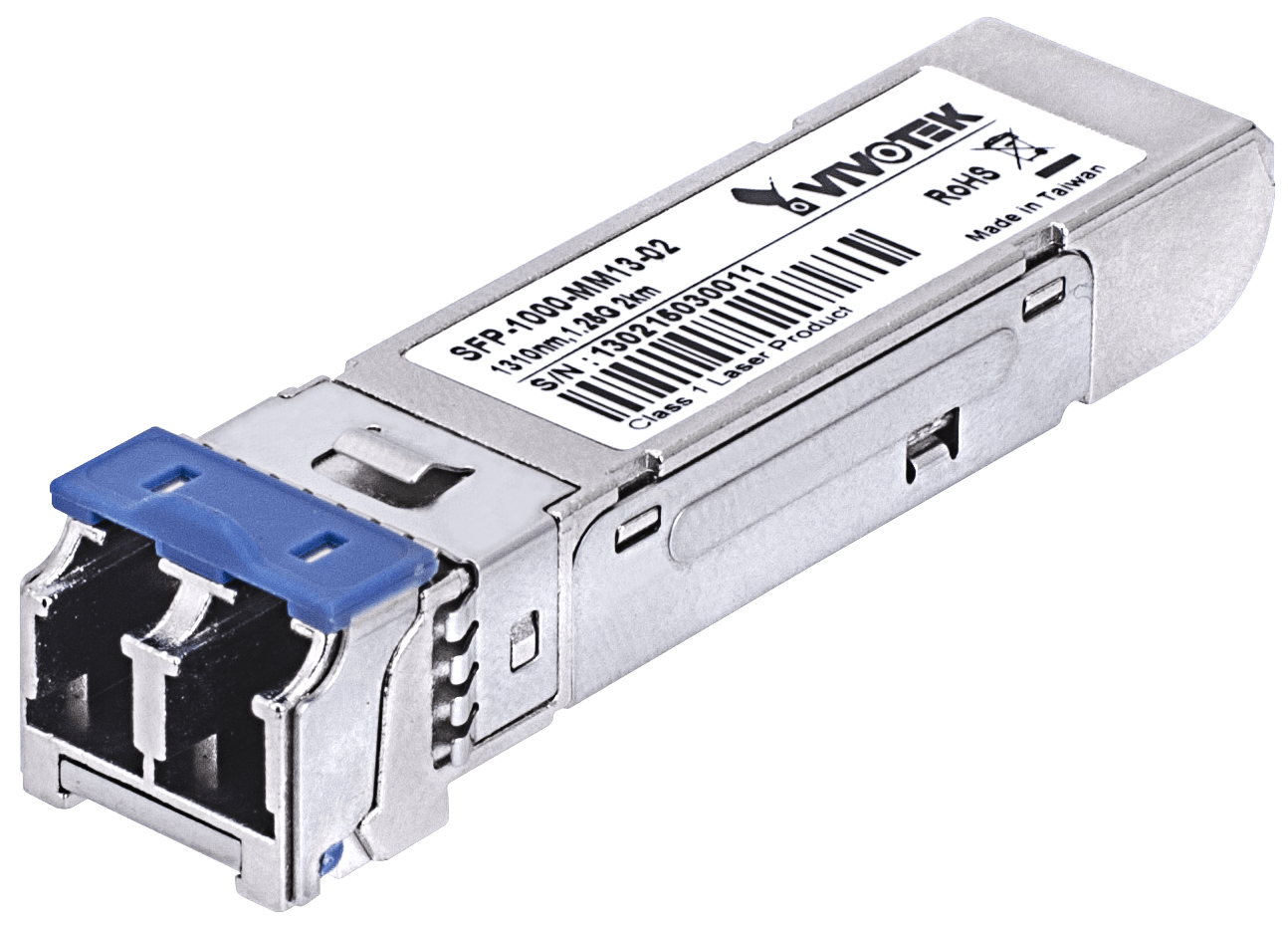

Vivotek - SFP-1000-MM13-02 - Gigabit Mini GBIC Multi Mode 1310nm 2KM, LC Connector
Part number:
SFP-1000-MM13-02
Price:
Gigabit Mini GBIC Multi Mode 1310nm 2KM, LC Connector.
Features:
- Data Rate Gigabit 1.25G
- Type SFP
- Center Wave Length 1300/1310 nm
- Laser Type Fabry-Perot
- Tx -5 ~ -15 dBm
- Rx -3 ~ -20 dBm
- Voltage 3.3V
- Transmission Range 50/125µm, 62.5/125µm, up to 2km
- Fiber Type (MMF/SMF) MMF
- Connector LC
- Dimensions (L x W x H) 55.9 x 14.69 x 12.39 mm
- Operating Temperature 0°C ~ 70°C (32°F ~ 158°F)
- Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- Humidity 5 ~ 90% (non-condensing)
- MSA Compliant Yes
- Certifications IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11
| Model | SFP-1000-MM13-02 |
| Data Rate Gigabit | 1.25G |
| Center Wave Length | 1300/1310 nm |
| Laser Type | Fabry-Perot |
| Tx | -5 ~ -15 dBm |
| Rx | -3 ~ -20 dBm |
| Voltage | 3.3V |
| Transmission Range | 50/125µm, 62.5/125µm, up to 2km |
| Fiber Type (MMF/SMF) | MMF |
| Connector | LC |
| Dimensions (L x W x H) | 55.9 x 14.69 x 12.39 mm |
| Operating Temperature | 0°C ~ 70°C (32°F ~ 158°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Humidity | 5 ~ 90% (non-condensing) |
| MSA Compliant | Yes |
| Certifications | IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11 |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
