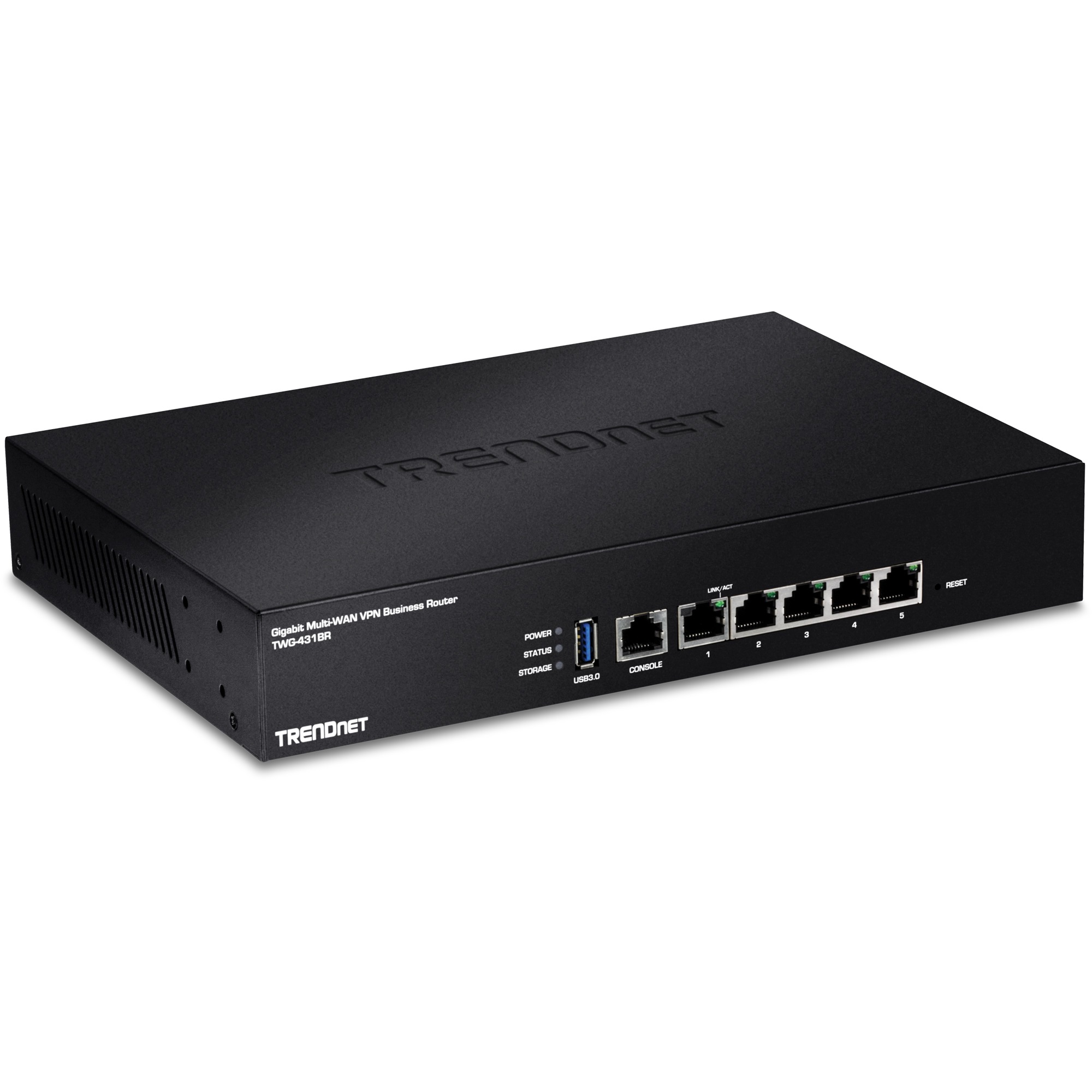

TRENDNET - TWG-431BR - Gigabit Multi-WAN VPN Business Router
TRENDNET - TWG-431BR - Gigabit Multi-WAN VPN Business Router
Part number:
TWG-431BR
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet's Gigabit Multi-WAN VPN Business Router, model TWG-431BR, features internet WAN load balancing, a network fail-safe backup, and encrypted Virtual Private Network (VPN) access for remote users. Improve peak-network-loading performance and eliminates network downtime with the use of the VPN router's multiple WAN ports. Smooth network loading, minimize network downtime, and allow employees to access your network from the Internet—all with a single router. The VPN router features advanced management, high availability, QoS, VLAN, VPN, and other capabilities to ensure optimal performance, scalability, and protection of your network. Advanced SPI, NAT and SNAT protects against Internet attacks.



Features:

  • Multi-WAN support
  • High Availability
  • IEEE 802.1Q inter-VLAN routing
  • WAN load-balancing and fail-over modes
  • SSL, IPsec, PPTP, and L2TP w/IPsec VPN support
  • Web browser and Command Line Interface (CLI) Management
  • Online firmware notification and upgrade
  • QoS for VoIP and media streaming
  • NDAA / TAA compliant (U.S. and Canada only)



Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.1Q
Device Interface
  • 5 x Gigabit ports (Modes: 4 WAN ports / 1 LAN port or 1 WAN port / 4 LAN ports)
  • 1 x USB 3.0 port (Backup & Restore Configuration / Export Logging)
  • 1 x RJ-45 console port
  • Reset button
  • LED indicators
  • On/off switch
Performance
  • NAT (LAN-to-WAN) Throughput: 900Mbps
  • Routing Performance: 900Mbps
  • Maximum Concurrent Sessions: 50,000
  • Maximum Number of VLANs: 8 (ID: 1-4093)
  • IPsec VPN (AES-256/SHA-256/LAN-to-LAN) Throughput: 200Mbps
  • SSL VPN Throughput (Blowfish/SHA-1/Bridge): 20Mbps
VPN
  • SSL VPN Client-to-Site (Up to 30 tunnels)
  • IPsec VPN Site-to-Site / Client-to-Site (Up to 5 tunnels)
  • PPTP/L2TP VPN Server / Client-to-Site (Up to 15 tunnels / 5 user accounts)
  • L2TP with IPsec VPN Server / Client-to-Site (Up to 15 tunnels shared with L2TP)
  • IPsec Encryption: 3DES, AES-128/192/256
  • IPsec Authentication: MD5, SHA-1, SHA-256
  • IPsec Key Exchange: IKE: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
  • IPsec Protocols: ESP, PFS DH Groups 1/2/5/14, DPD, Local/Remote ID: IP Address, FQDN
  • IPsec NAT Traversal
  • SSL VPN Encryption: AES
  • SSL VPN Certificate: RSA
  • PPTP/L2TP Encryption: MPPE 40-bit, 128-bit, IPsec
  • PPTP/L2TP Authentication: MS-CHAPv1/2
Networking
  • WAN Modes: NAT, Classical Routing
  • NAT Modes: NAT, PAT
  • IPv4 WAN Modes: DHCP, Static IP, PPPoE, PPTP
  • IPv6 WAN Modes: Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4, 6rd
  • Routing: Static, dynamic RIPv2, OSPFv1/2, distribute RIPv2 over OSPFv1/2, routing policies (Up to 20 entries)
  • Inter-VLAN Routing (Up to 8 VLANs, 8 IP interfaces)
  • DHCP Server/Relay
  • Dynamic DNS: dyn.com, no-ip.com
  • WAN Failover
  • WAN Load Balancing: Assign weight by percentage or bandwidth, source IP based, source & destination IP based, session based
  • High Availability: Supports 1 active-passive cluster up to a total of 6 units (1 master + 5 standby)
  • VPN passthrough: IPsec, PPTP, L2TP
Access Control
  • MAC address filtering (Up to 64 entries)
  • IP address filtering: TCP, UDP, ICMP (Up to 64 entries)
  • Content filtering: URL (HTTP only), Keyword, P2P, IM (Up to 64 entries)
  • Scheduling: IP/MAC/Content filters, virtual server (Up to 10 entries)
  • DMZ host
Quality of Service
  • Bandwidth Control: applicable by IP network, IP range, TCP/UDP port, SIP, RTSP, RTP, web
MIB
  • MIB II RFC 1213
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.5A
  • Output: 12V DC, 1.5A external power adapter
  • Max. consumption: 17.4W
MTBF
  • 318,350 hours
Operating Temperature
  • 0 – 50°C (32 – 122°F)
Operating Humidity
  • Max. 80% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 265 x 185 x 44.45mm (10.4 x 7.28 x 1.75 in.)
  • Rack mountable 1U height
Weight
  • 1.1kg (2.44 lbs.)
Warranty
  • 3 years

PACKAGE CONTENTS

  • TWG-431BR
  • Quick Installation Guide
  • RJ-45 to RS-232 console cable (1.5m / 5 ft.)
  • Power adapter (12V DC, 1A)
  • Rackmount kit
Name
Description
Size
Downloads
File
Datasheet
1.6mb
