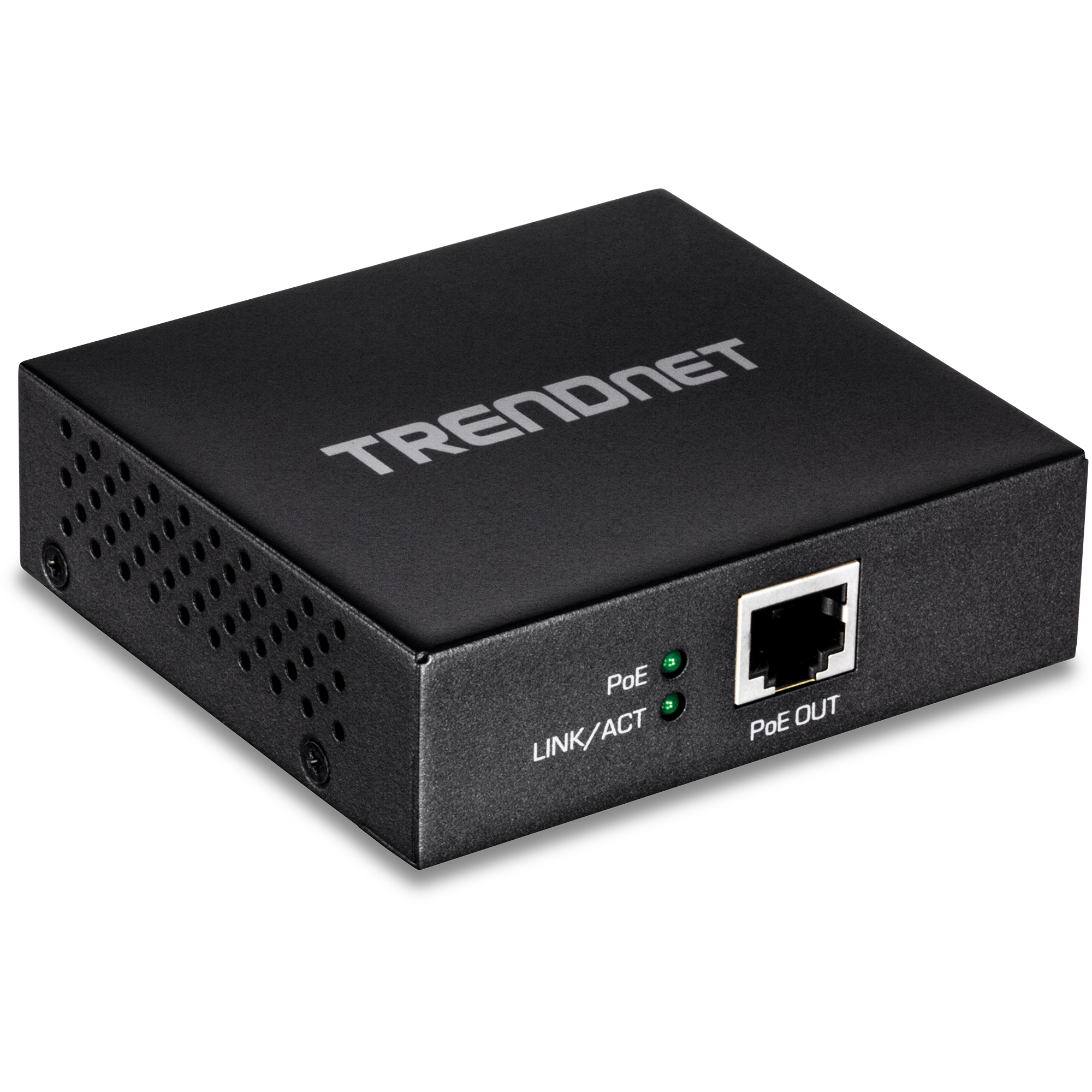

TRENDNET - TPE-E100 - Gigabit PoE+ Repeater
Part number:
TPE-E100
Price:

TRENDnet's Gigabit PoE+ extender, model TPE-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The PoE Extender auto-detects a PoE (15.4W) or PoE+ (30W) connection and extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TPE-E100 features a convenient wall mountable design for installation flexibility. Daisy-chain up to 3 units for a total PoE+ network extension of 400m (1312 ft.).



PoE Powered

Extends a single PoE/PoE+ network connection up to 100m (328 ft.) for a remote PoE or PoE+ device installation.



Daisy-Chainable

Daisy chain up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.).



Wall Mountable

Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment.



Features:

  • Easy installation
  • Extends 100m for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 3 units for a total PoE network extension of up to 400m (1,312 ft.)*
  • Supports PoE (15.4W) and PoE+ (30W)
  • Wall mountable
  • LED Indicators
  • Durable metal housing
  • NDAA compliant
Technical Specifications
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface

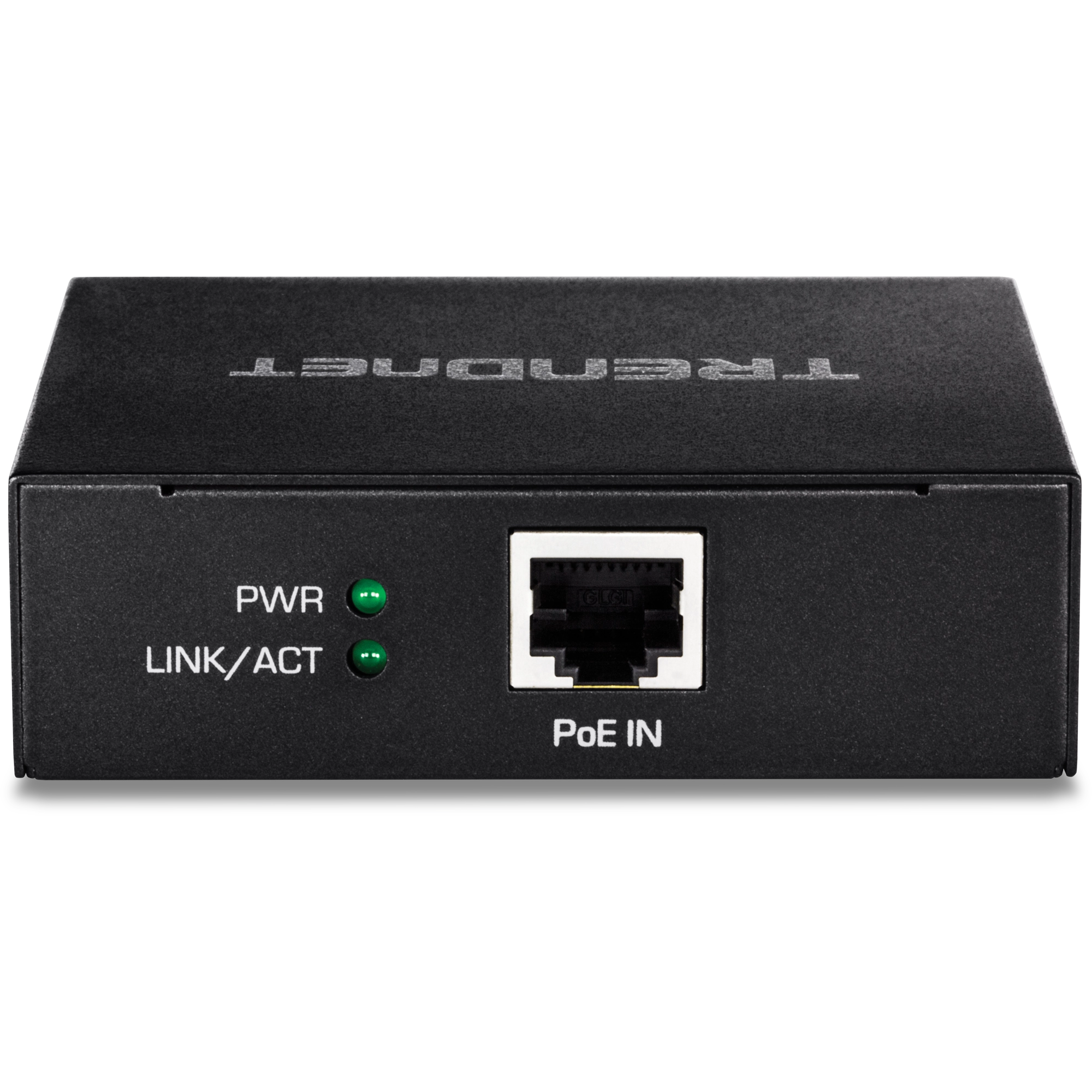

  • 1 x Gigabit PoE+ in port
  • 1 x Gigabit PoE out port
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • SRAM buffer: 128KB
  • MAC Address Table: 2K
  • Jumbo Frame: 9KB
Special Features
  • Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 400m (1312 ft.)
  • Cascade up to 3 repeaters
Power
  • Powered by PoE+ Device
  • Max. consumption: 0.9W
PoE Delivery
  • Pair 1: pin 1, 2
  • Pair 2: pin 3, 6
Operating Temperature
  • 0 – 40° C (32 - 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 86 x 79 x 25mm (3.4 x 3.1 x 1 in.)
Weight
  • 198g (7 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year
