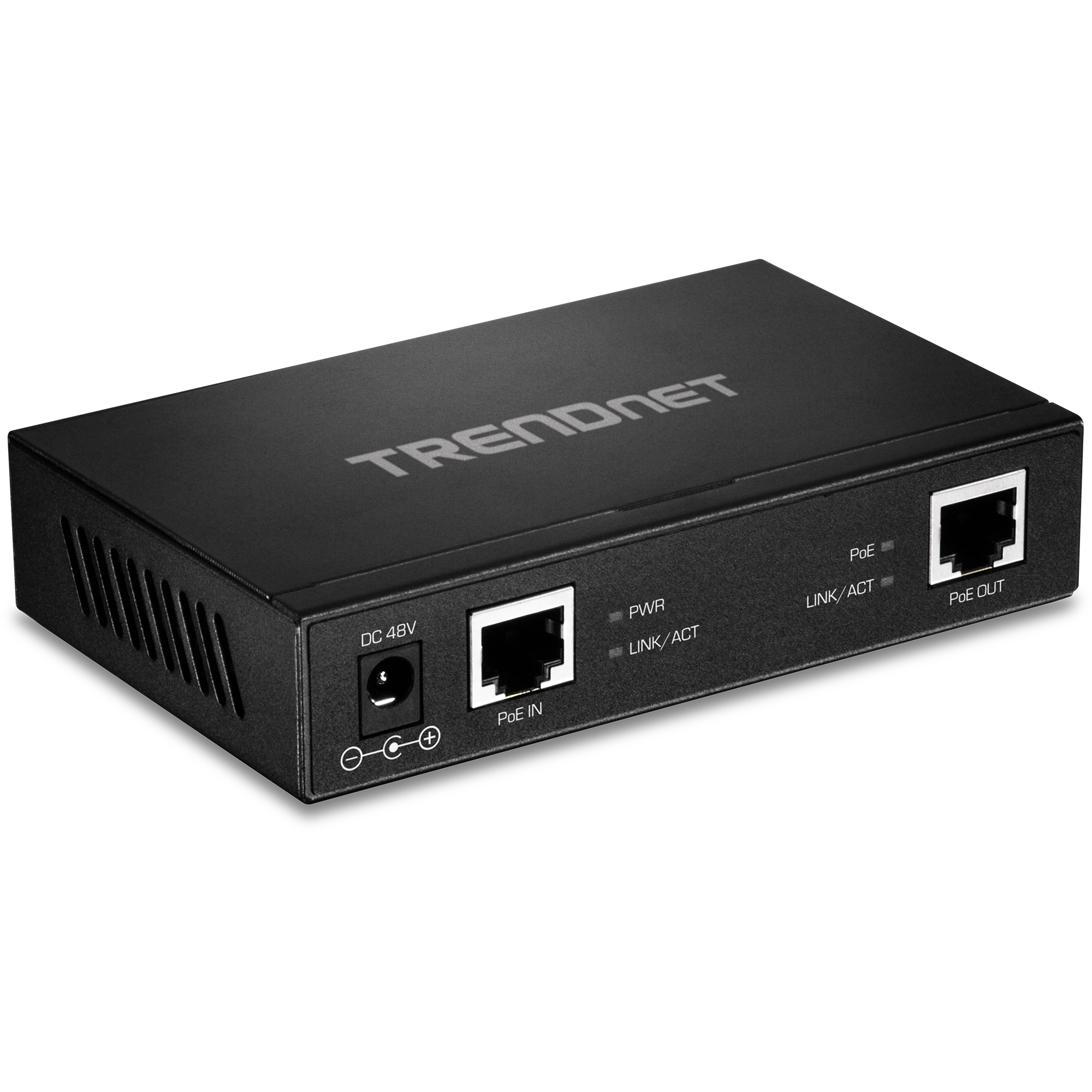

TRENDNET - TPE-E110 - Gigabit PoE+ Repeater/Amplifier
Part number:
TPE-E110
Price:

TRENDnet's Gigabit PoE+ Extender/Amplifier, model TPE-E110, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The TPE-E110 auto-detects a PoE (15.4W) or PoE+ (30W) connection and extends it for a total distance of up to 200m (656 ft.) from the power sourcing equipment. Daisy chain up to 5 units for a total PoE+ network extension of 600m (1,968 ft.) *. The extended range and convenient wall mounting design allows for greater installation flexibility.



PoE Powered

Extends a single PoE+ network connection up to 100m (328 ft.) for a remote PoE (15.4W) or PoE+ (30W) device installation.



Daisy-Chainable

Daisy-chain up to 5 units for a total PoE+ network extension of 600m (1,968 ft.) *.

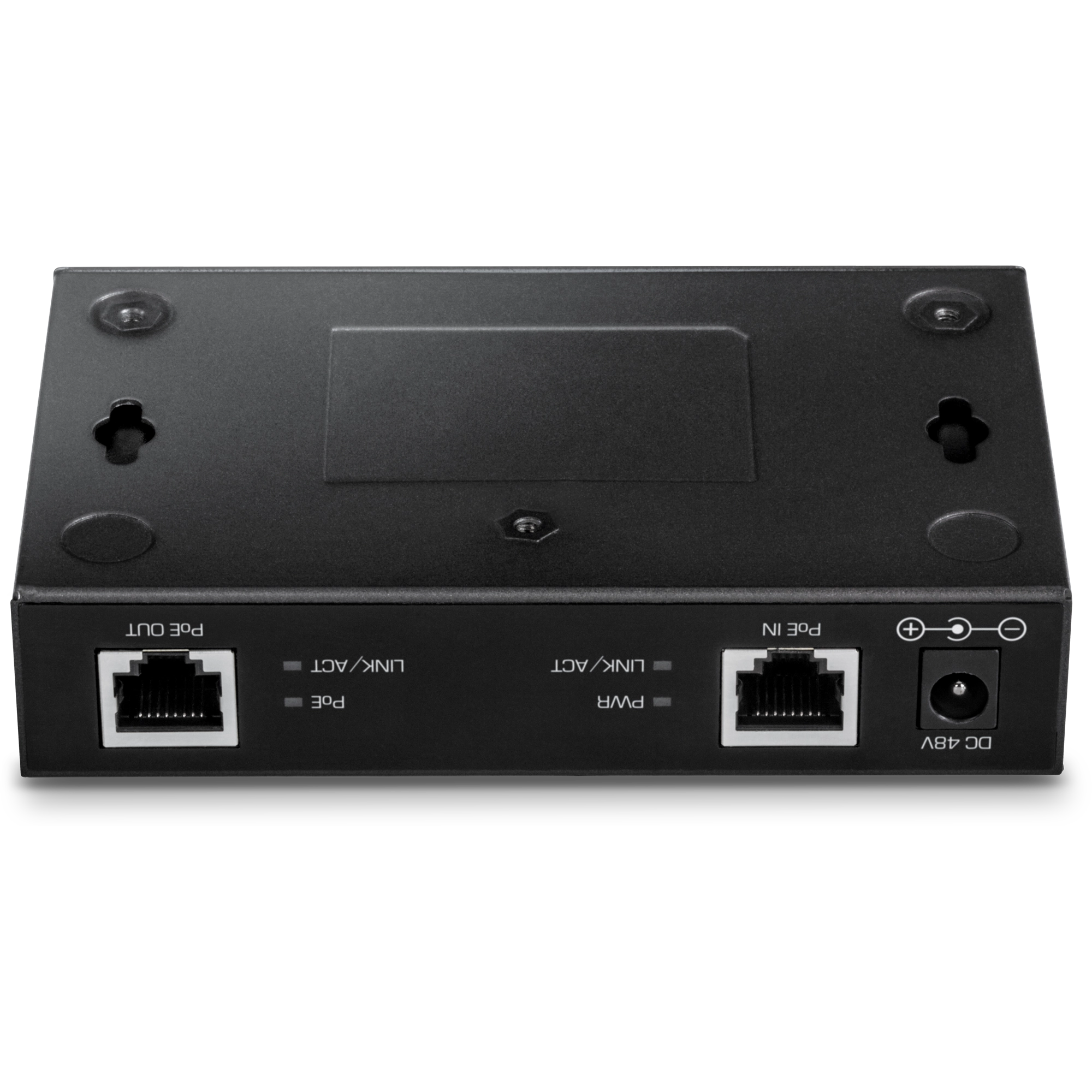

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility.



Features:

  • Easy installation
  • Extends 100m for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 5 units for a total PoE+ network extension of 600m (1,968 ft.)*
  • PoE/PoE+ powered
  • Wall mountable
  • Durable metal housing
  • NDAA compliant
Technical Specifications
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3af
  • IEEE 802.3at

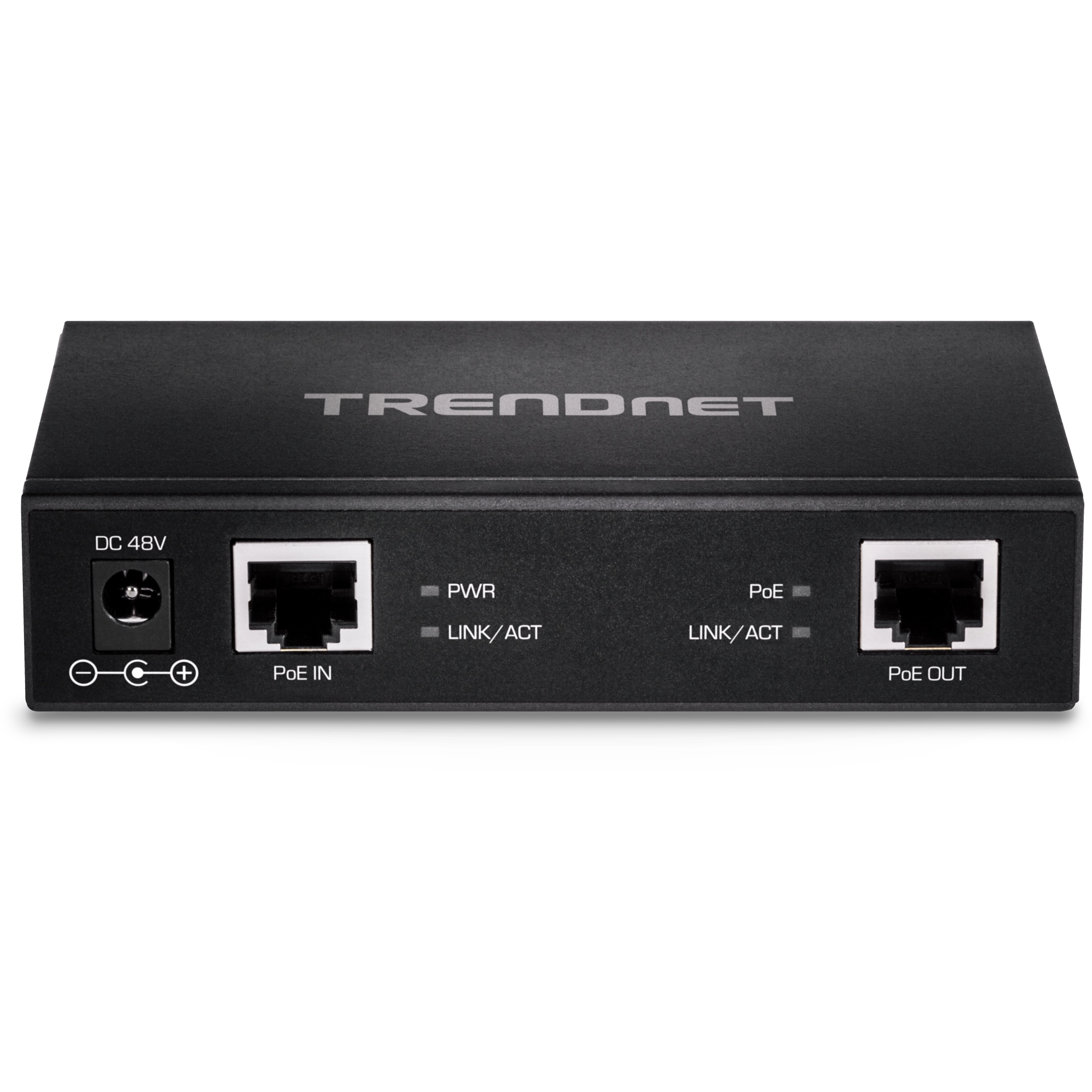

Device Interface
  • 1 x Gigabit PoE/PoE+ in port
  • 1 x Gigabit PoE/PoE+ out port
  • 1 x Power port (optional power adapter model name 54VDC0700 sold separately)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • RAM buffer: 128KB
  • MAC Address Table: 2K
  • Jumbo Frame: 9K
Special Features
  • Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 200m (656 ft.)
  • Daisy-chain up to 5 units* without optional power adapter
  • Wall mountable
Daisy Chain
Number of Daisy Chains from PSEMax. PoE output (approx.) Without optional power adapter
  • 1 (up to 100m)
  • 30W input: 24.5W
  • 15.4W input: 12W
  • 2 (up to 200m)
  • 30W input: 19.6W
  • 15.4W input: 8.5W
  • 3 (up to 300m)
  • 30W input: 15.5W
  • 15.4W input: 6.5W
  • 4 (up to 400m)
  • 30W input: 11.9W
  • 15.4W input: 4W
  • 5 (up to 500m)
  • 30W input: 9.9W
  • 15.4W input: N/A




Number of Daisy Chains from PSEMax. PoE output (approx.) With Optional power adapter
  • 1 (up to 100m)
  • 30W input: 24.5W
  • 15.4W input: 12W
  • 2 (up to 200m)
  • 30W input: 19.6W
  • 15.4W input: 8.5W
  • 3 (up to 300m)
  • 30W input: 15.5W
  • 15.4W input: 6.5W
  • 4 (up to 400m)
    Add power adapter
  • 30W input: 24.5W
  • 15.4W input: 12W
  • 5 (up to 500m)
  • 30W input: 19.6W
  • 15.4W input: 8.5W
  • 6 (up to 600m)
  • 30W input: 15.5W
  • 15.4W input: 6.5W
  • 7 (up to 700m)
    Add power adapter
  • 30W input: 24.5W
  • 15.4W input: 12W
  • 8 (up to 800m)
  • 30W input: 19.6W
  • 15.4W input: 8.5W
  • 9 (up to 900m)
  • 30W input: 15.5W
  • 15.4W input: 6.5W
PoE
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
  • PD auto classification
  • Over current/short circuit protection
Power
  • Powered via PoE/PoE+ switch or injector
  • Max. consumption: 1.6W
Optional Power Adapter (54VDC0700 sold separately)
  • Input: 100 – 240V AC 50/60Hz, 1.2A
  • Output: 54V DC, 0.7A
  • Max. consumption: 32W (with use of power adapter sold separately)
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 121 x 75 x 26mm (4.77 x 2.95 x 1 in.)
Weight
  • 242g (8.5 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year
