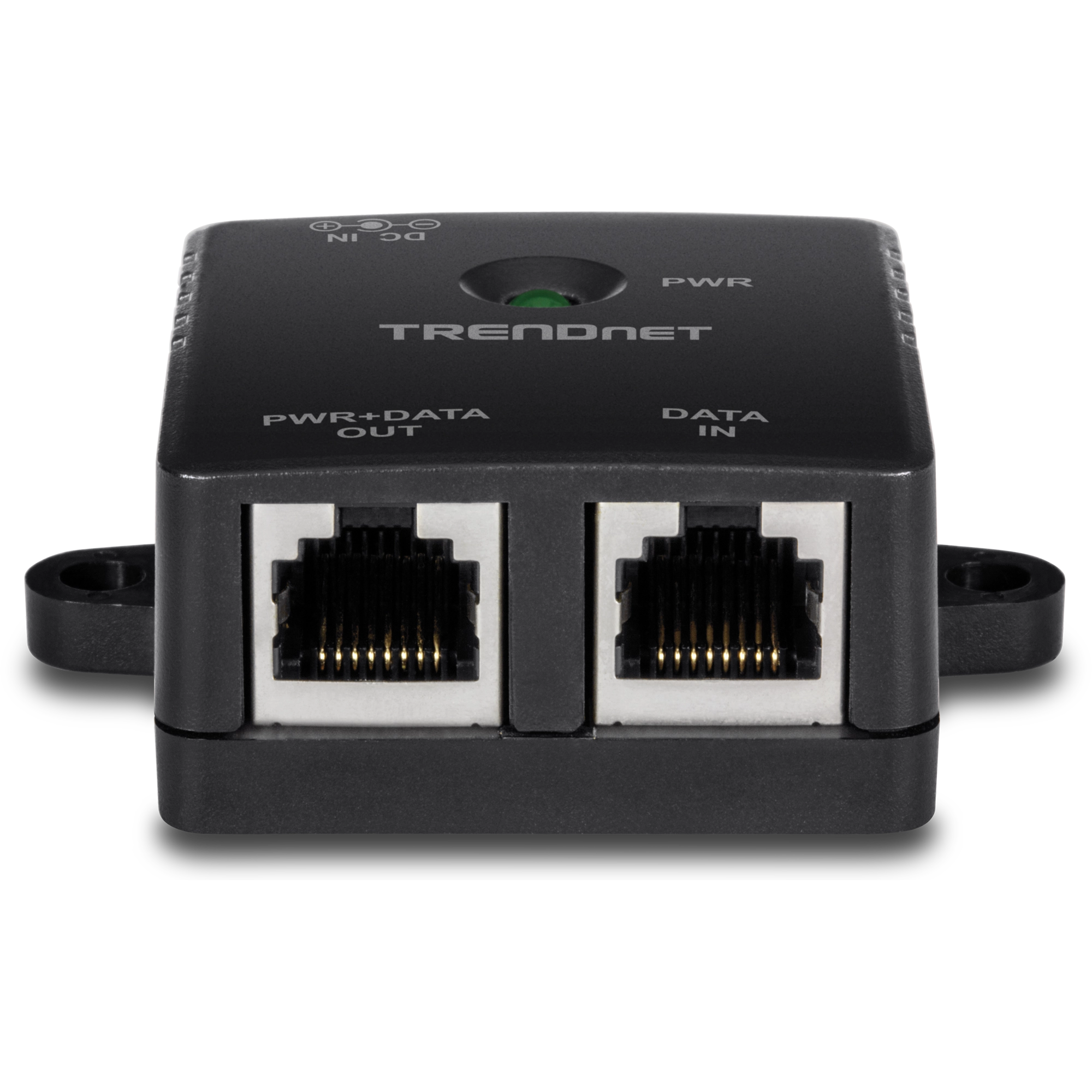

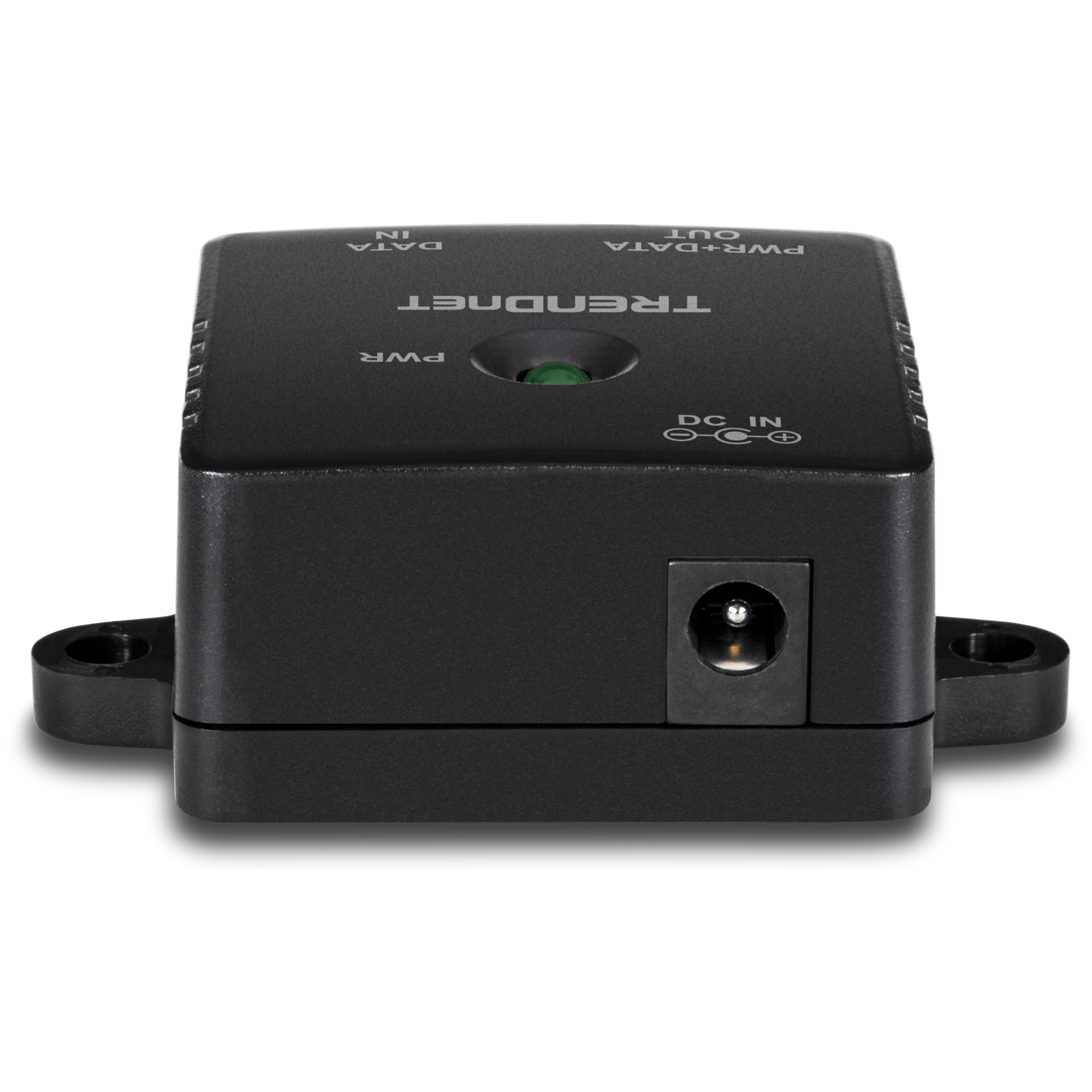

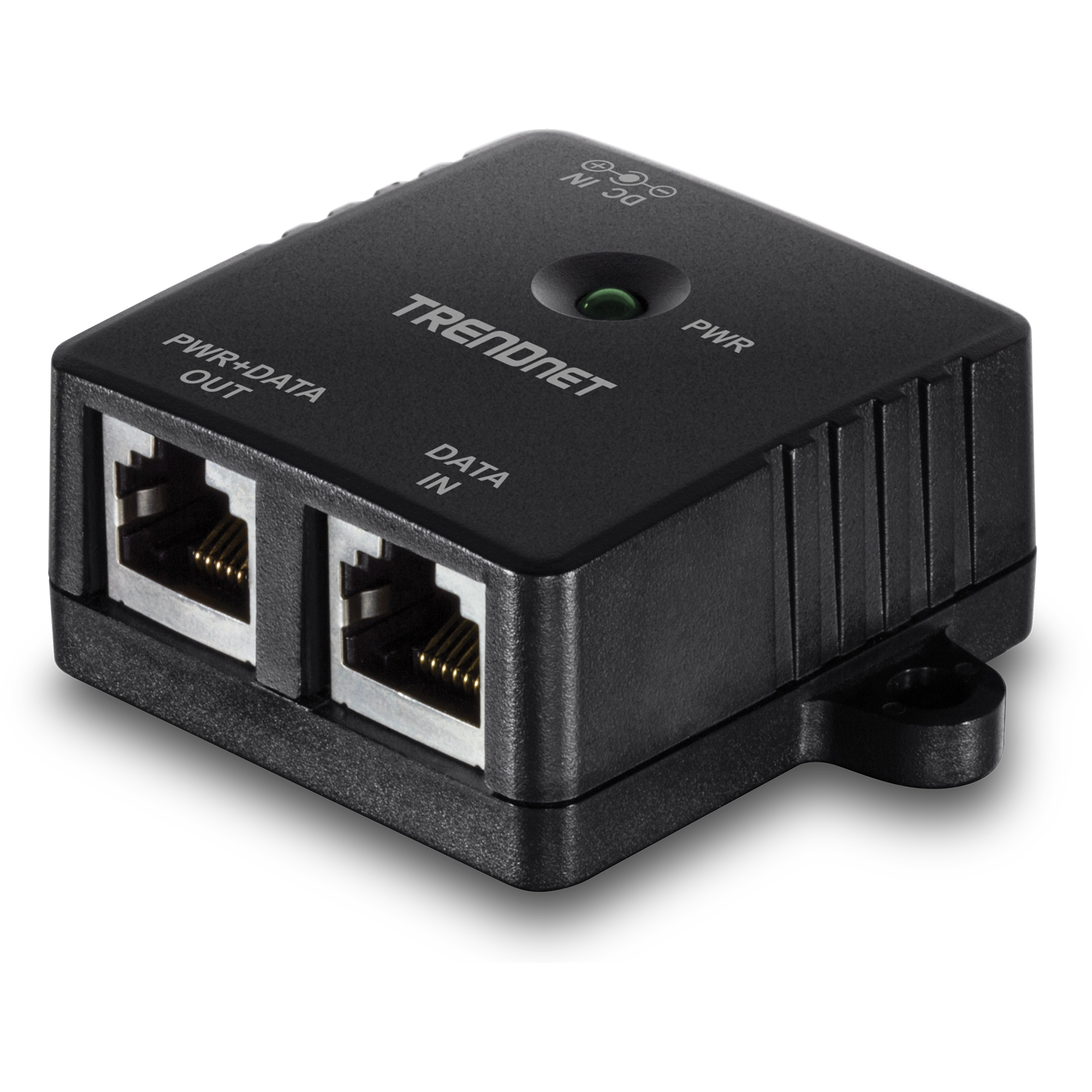

TRENDNET - TPE-113GI - Gigabit Power over Ethernet (PoE) Injector
Part number:
TPE-113GI
Price:

TRENDnet's Gigabit PoE Injector, model TPE-113GI, combines electrical power with a Gigabit network connection. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE devices. Connect the injector to a non-PoE Gigabit switch and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away.



PoE

Supplies a PoE device with PoE (15.4W) power.



Installation Flexibility

Wall-mountable design accommodates most installation scenarios.



Gigabit Speeds

Full Duplex 2Gbps Ethernet speeds with this PoE injector.



Features:

  • Full Duplex Gigabit speeds
  • Supplies PoE (15.4W)
  • Network a PoE device located up to 100 meters (328 ft.) away
  • Converts a non-PoE Gigabit port to a PoE Gigabit port
  • Save on installation and equipment costs
  • IEEE 802.3af compliant
  • NDAA compliant
Technical Specifications
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
Device Interface
  • 1 x Gigabit Data In port
  • 1 x Gigabit Data & Power out port
  • 1 x Power Input
  • LED indicator
Special Features
  • Wall-mountable
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
PoE Delivery
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.6A max.
Power Consumption
  • Max. 15.4W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 67 x 51 x 25mm (2.6 x 2 x 1 in.)
Weight
  • 38g (1.34 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year
Name
Description
Size
Downloads
File
Datasheet
0.9mb
