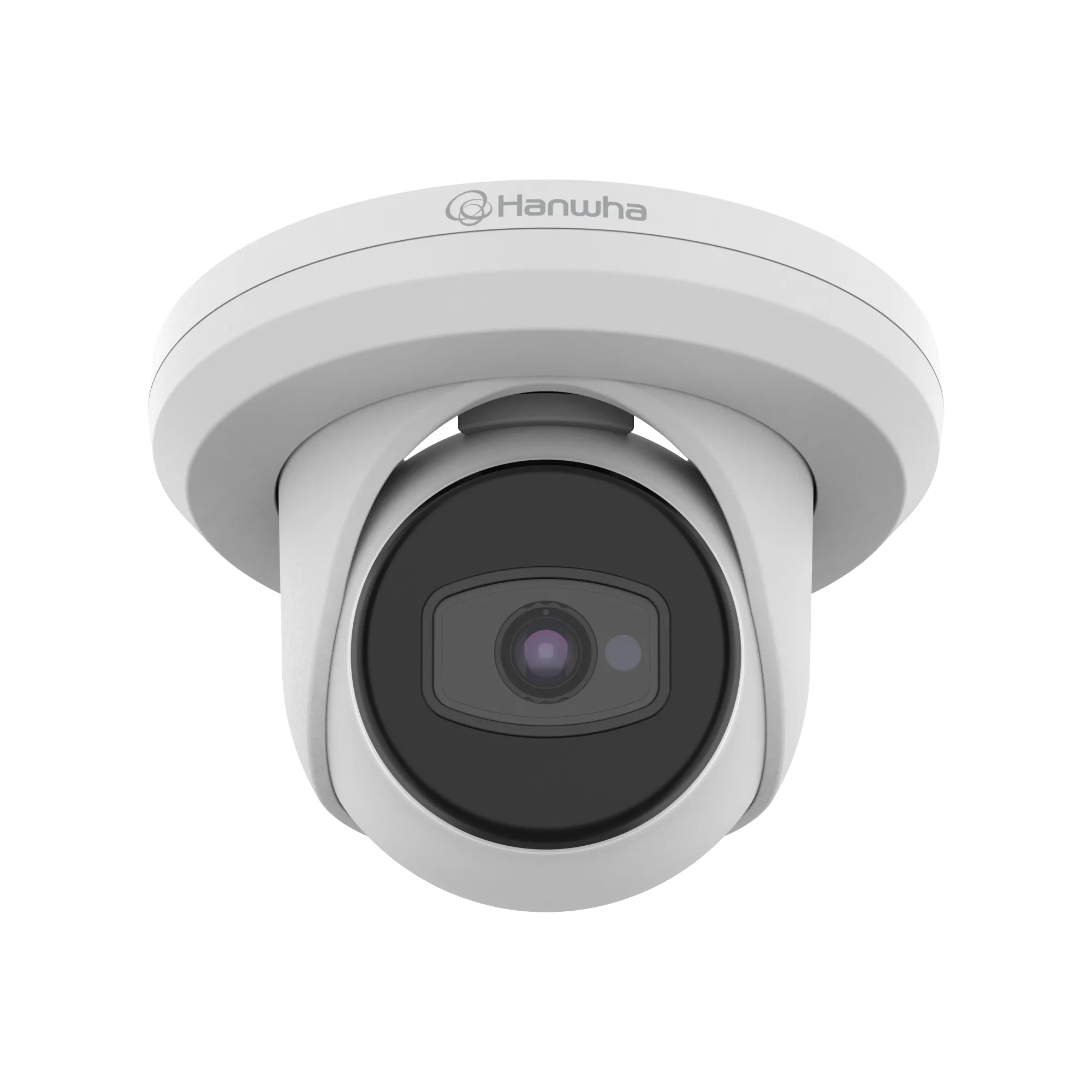

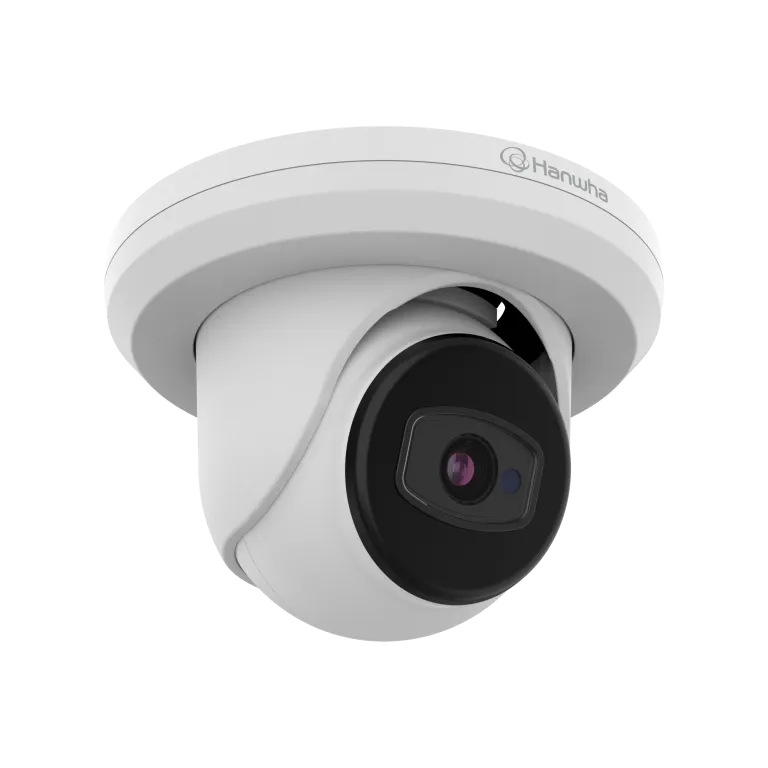

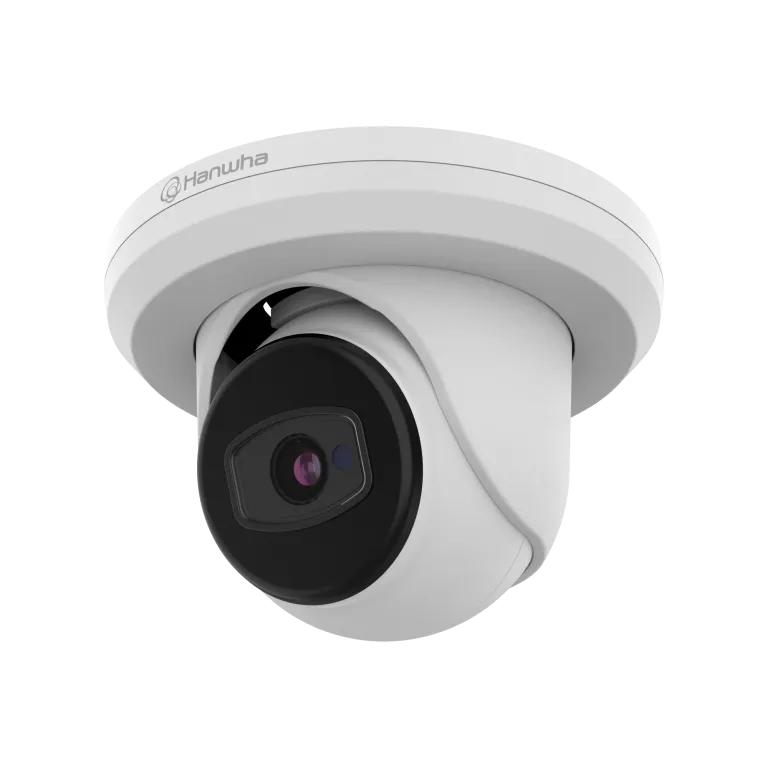

Hanwha - ACE-6020R - 2MP Turret Camera
Part number:
ACE-6020R
Price:
Wisenet A Series 2MP IR flateye camera
Features:
- 2MP Full HD resolution @ 30FPS
- 0.08Lux@F1.6(Color), 0Lux(B/W : IR LED on)
- 3.6mm fixed focal lens FoV H: 81° / V: 42°
- Day & Night (ICR), DWDR
- IR distance 20m(65.6 ft)
- IP67, IK10
- 12v DC power
- Transmission distance Max.500m
- Easy installation (Plug & play), Coaxial control
- Multi-protocol compatible with AHD, TVI, CVI, CVBS
| Video | |
| Imaging Device | 1/3" CMOS |
| Resolution | 1920x1080 |
| Max. Framerate | 30fps |
| Min. Illumination | Color : 0.08Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on) |
| Video Out | BNC: AHD/TVI/CVI/CVBS Selectable |
| Video Transmission Distance | 300m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 77.6° / V: 40.3° / D: 91.5° |
| Min. Object Distance | 2.0m(6.56ft) |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 2D + 3DNR |
| Gain Control | LOW / MIDDLE / HIGH |
| White Balance | ATW / AWC |
| Electronic Shutter Speed | AUTO(1/30~1/50,000) |
| Video Rotation | MIRROR/V-FLIP/ROTATE |
| IR Viewable Length | 25m(82.02ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) / 0~90% RH |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / 0~90% RH |
| Certification | IP67, IK10 |
| Input Voltage | 12VDC |
| Power Consumption | Max 3.6W, Typical 2.9W |
| Mechanical | |
| Color / Material | White / Aluminum / Plastic |
| Product Dimensions / Weight | ø120x82mm(ø4.72"x3.23"), 410g(0.90lb) |
| Backbox | SBV-A14B |
